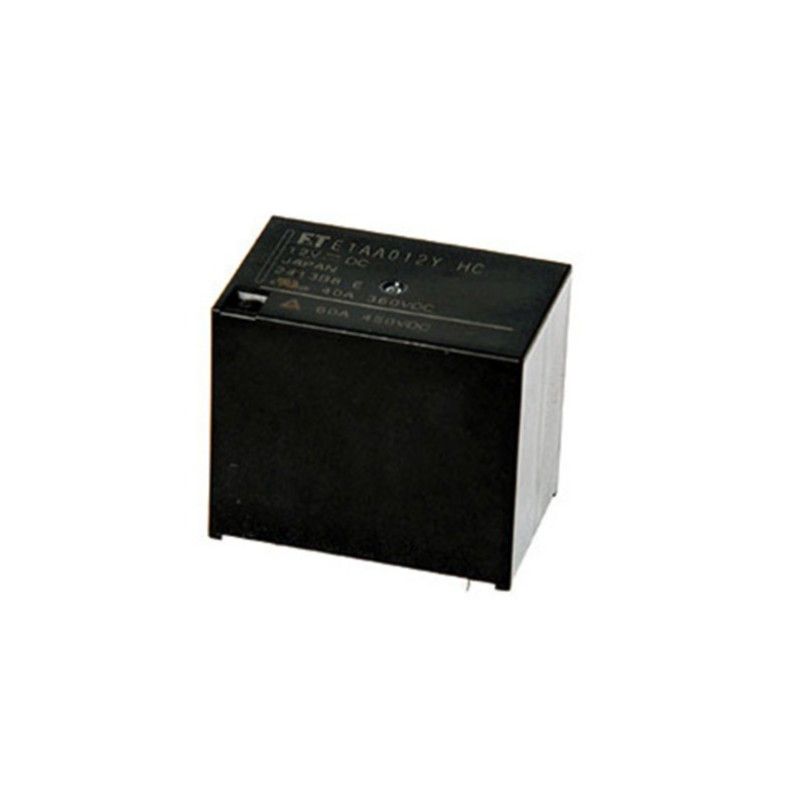

FTR-E1AA012Y-HC

FCL Components printrelays series FTR-E1-HC

These printrelays with 60A/450V DC have a high voltage Dc load switch, and a non polar contact, which can be switched on and off for loading-/unloading cycle. They are made of sealed plastic, and have a low power input of the inductor (only 1,2W at nominal voltage of the inductor). We offer the following types of this FCL Components series: FTR-E1AA012Y-HC and FTR-E1AA024Y-HC.

  • contact: 2x normally open contact
  • contact material: silver alloy
  • nominal switching current: 60A
  • nominal switching voltage: 450V DC
  • current resilience, max.: 60A (@85°C)
  • switching load, min.: 1A/6V DC
  • nominal power take up: 1200mW
  • Betriebsstromverbrauch: 588mW
  • attack/drop out time, min.: 30/10ms
  • test voltage: 5000V AC (inductor/contact), 2500V DC (open contact)
  • isolation resistance: 1000MOhm
  • lifespan: 500x10^3 cycles (mechanic, min), 500 cycles (electric, min)
  • operating temperature: -40 to +85°C
  • soldering temperature, max.: 270°C (5s)
  • housing: 43,6x28,3x36,8mm
  • weight: 80g

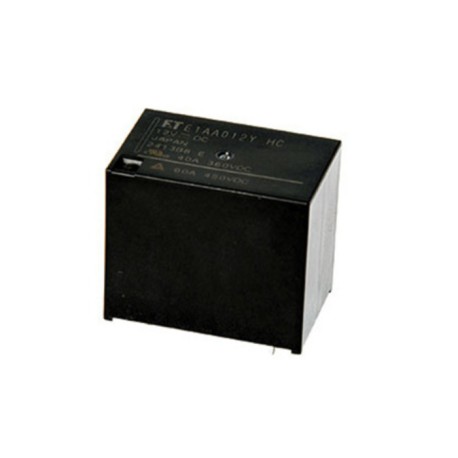

FTR-E1AA012Y-HC, FCL Components printrelays, 60A, 2x normally open contact (SPST-NO), FTR-E1-HC series

FTR-E1AA012Y-HC

247722 FTR-E1AA012Y-HC FTR-E1AA012Y-HC FCL Components printrelays series FTR-E1-HC. These printrelays with 60A/450V DC have a high voltage Dc load switch, and a non polar contact, which can be switched on and off for loading-/unloading cycle. They are made of sealed plastic, and have a low power input of the inductor (only 1,2W at nominal voltage of the inductor). We offer the following types of this FCL Components series: FTR-E1AA012Y-HC and FTR-E1AA024Y-HC. contact: 2x normally open contact contact material: silver alloy nominal switching current: 60A nominal switching voltage: 450V DC current resilience, max.: 60A (@85°C) switching load, min.: 1A/6V DC nominal power take up: 1200mW Betriebsstromverbrauch: 588mW attack/drop out time, min.: 30/10ms test voltage: 5000V AC (inductor/contact), 2500V DC (open contact) isolation resistance: 1000MOhm lifespan: 500x10^3 cycles (mechanic, min), 500 cycles (electric, min) operating temperature: -40 to +85°C soldering temperature, max.: 270°C (5s) housing: 43,6x28,3x36,8mm weight: 80g

Specifications

manufacturer
Manufacturer's name FTR-E1AA012Y-HC
Nominal voltage [V DC] 12
Coil resistance [Ω] 120
Max. operating voltage [V DC] 1,0
Response voltage [V] 8,4
Nominal capacity [mW] 1200
Data Sheet

Unit price

28,99 €

Stock: 0
Further delivery:
CW 20/2025

Minimum order quantity 100 units or
multiples of 100.
