461164951

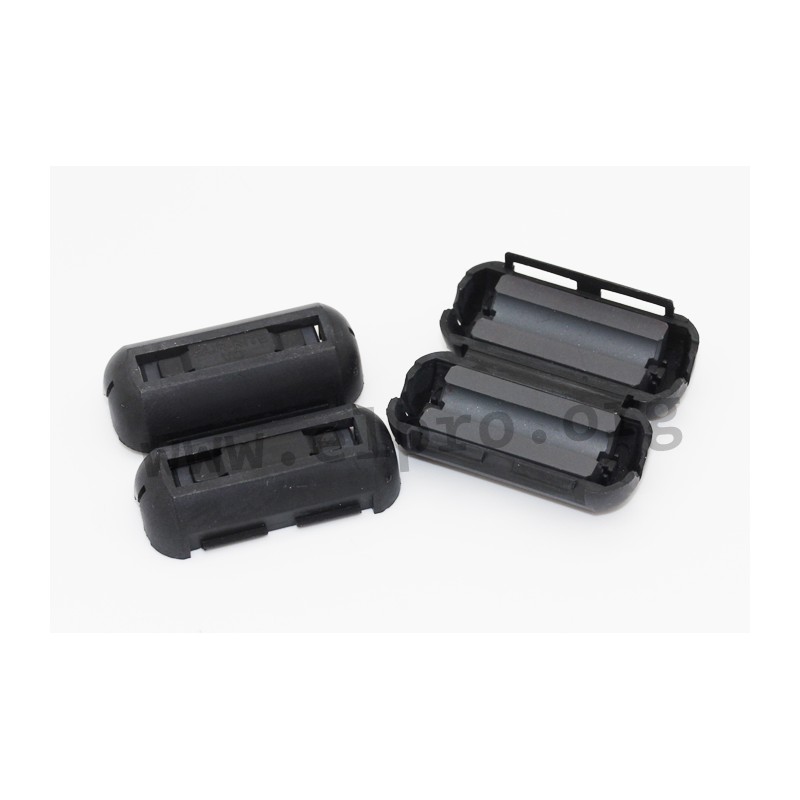

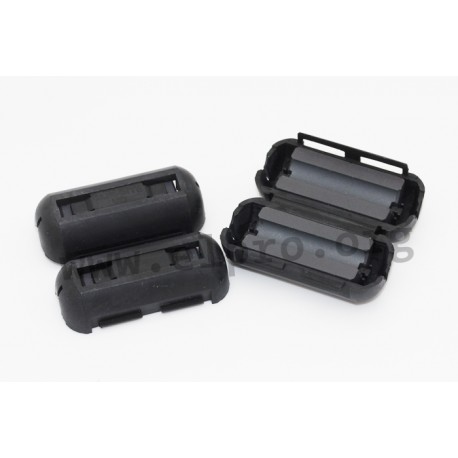

ferrite snap beads by Fair-Rite

* for round cables Ø 5.1 to 18.35mm (size B)
* ferrite material 61
* meets UL94V-0
* snap-it for easy, subsequent mounting
* for suppression of conducted interference 400MHz...2GHz
* by Fair-Rite

material 61:
* initial permeability @B<10gauss: 125µ
* flux density: 2350 gauss
* @field strength: 15 oersted
* residual flux density: 1200 gauss
* coercive force: 1.8 oersted
* loss factor @1MHz: 30x10-6 tan d/µ
* temperature coefficient of initial permeability: 0,1%/°C
* curie temperature: >300°C
* resistivity: 1x108Ω cm
461164951

461164951

39664 461164951 461164951 ferrite snap beads by Fair-Rite. * for round cables Ø 5.1 to 18.35mm (size B)* ferrite material 61* meets UL94V-0* snap-it for easy, subsequent mounting* for suppression of conducted interference 400MHz...2GHz* by Fair-Ritematerial 61:* initial permeability @B&lt;10gauss: 125µ* flux density: 2350 gauss* @field strength: 15 oersted* residual flux density: 1200 gauss* coercive force: 1.8 oersted* loss factor @1MHz: 30x10-6 tan d/µ* temperature coefficient of initial permeability: 0,1%/°C* curie temperature: &gt;300°C* resistivity: 1x108Ω cm

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 461164951

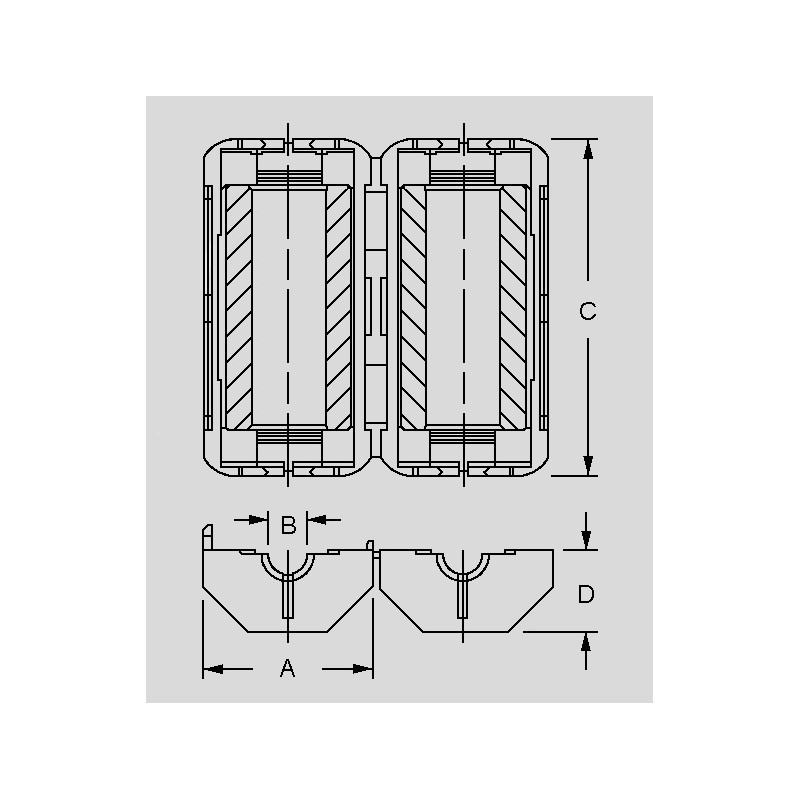

A [mm] 17,3
D [mm] 8,4
B [mm] 5,1
C [mm] 38,2
Data Sheet

Unit price

1,88 €

Stock: 6
