443625006

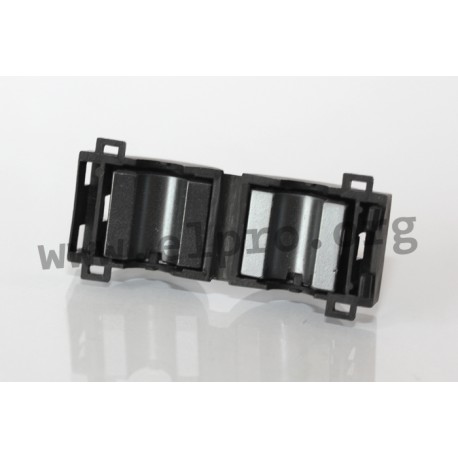

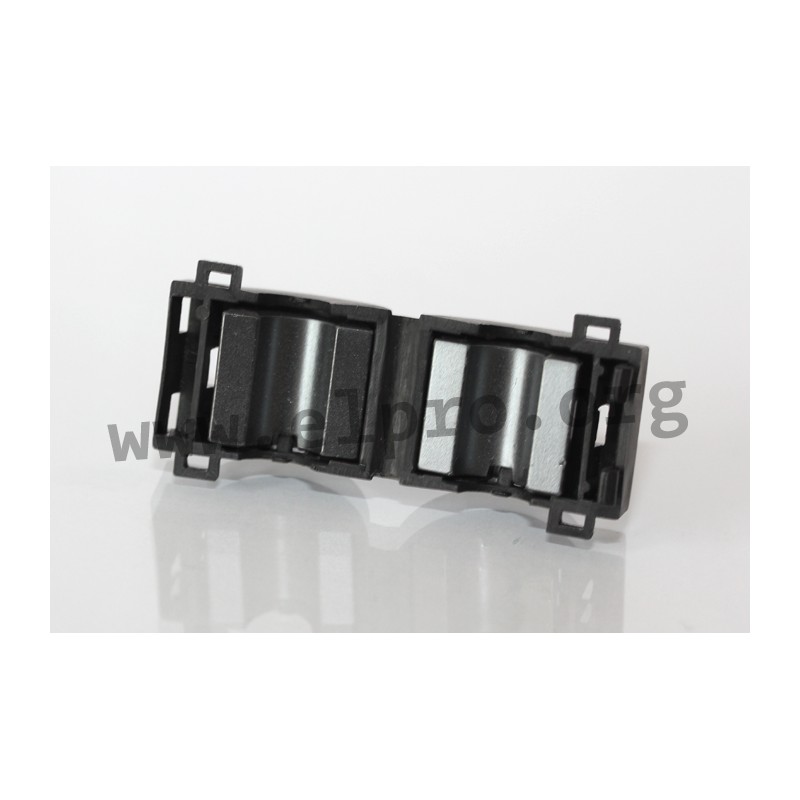

ferrite snap beads by Fair-Rite

* for round cables Ø 6.6 to 15.5mm (size B)
* ferrite material 43
* meets UL94V-0
* snap-it for easy, subsequent mounting
* for suppression of conducted interference 100...600MHz
* by Fair-Rite

material 43:
* initial permeability @B<10gauss: 800µ
* flux density: 2900 gauss
* @field strength: 10 oersted
* residual flux density: 1300 gauss
* coercive force: 0.45 oersted
* loss factor @1MHz: 250x10-6 tan d/µ
* temperature coefficient of initial permeability: 1,25%/°C
* curie temperature: >130°C
* resistivity: 1x105Ω cm
443625006

443625006

39662 443625006 443625006 ferrite snap beads by Fair-Rite. * for round cables Ø 6.6 to 15.5mm (size B)* ferrite material 43* meets UL94V-0* snap-it for easy, subsequent mounting* for suppression of conducted interference 100...600MHz* by Fair-Ritematerial 43:* initial permeability @B&lt;10gauss: 800µ* flux density: 2900 gauss* @field strength: 10 oersted* residual flux density: 1300 gauss* coercive force: 0.45 oersted* loss factor @1MHz: 250x10-6 tan d/µ* temperature coefficient of initial permeability: 1,25%/°C* curie temperature: &gt;130°C* resistivity: 1x105Ω cm

Discontinued items. Only remainder of stock available.

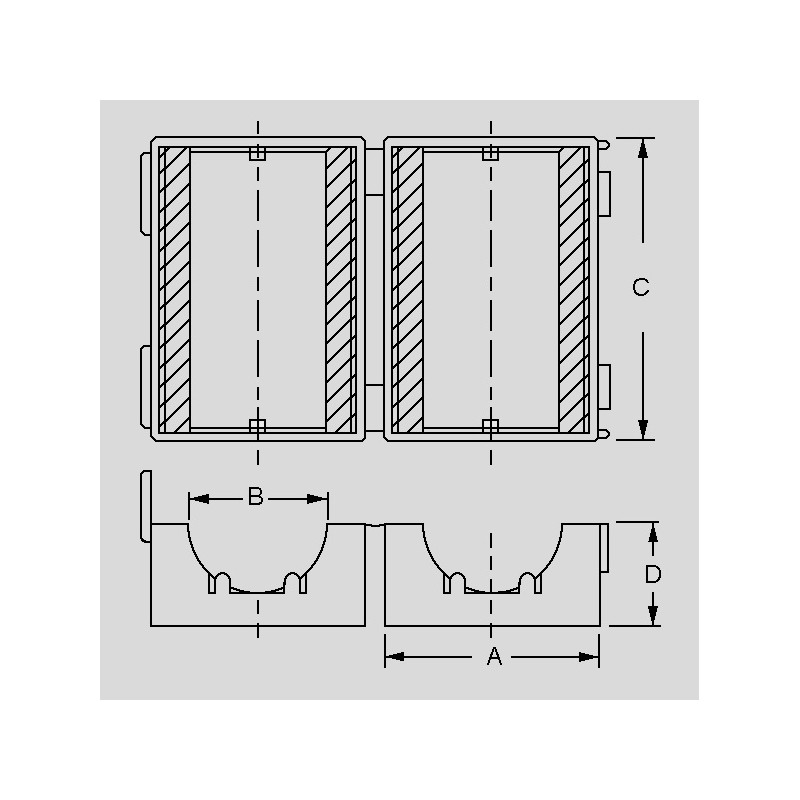

Specifications

manufacturer
Manufacturer's name 443625006
E [mm] 17,8
A [mm] 24,7
Width [mm] 7,9
E [mm] 17,8
D [mm] 10,2
C [mm] 22,8
Data Sheet

Unit price

1,12 €

Stock: 10
