431177081

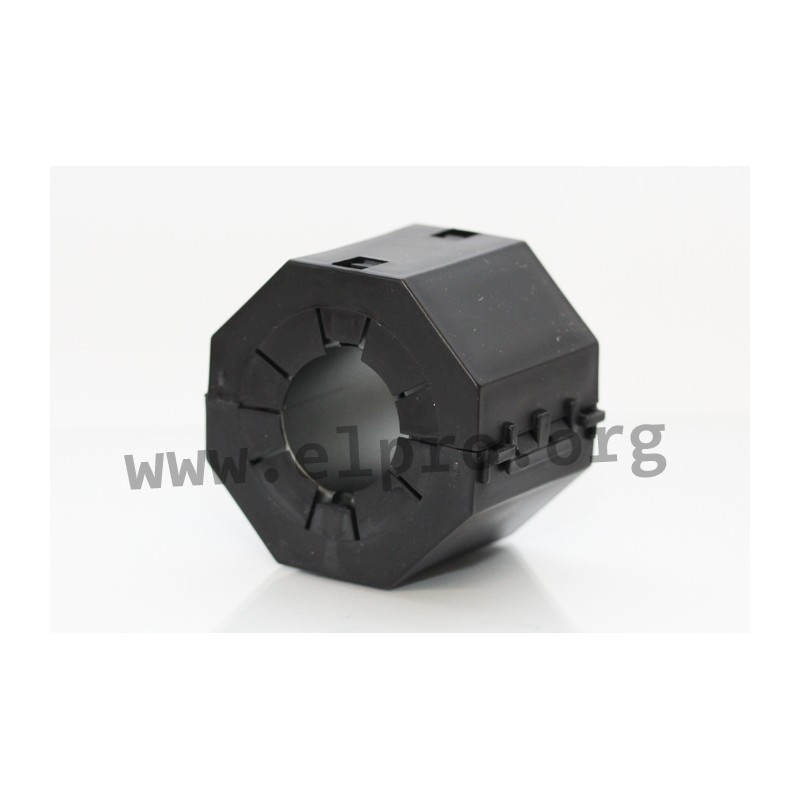

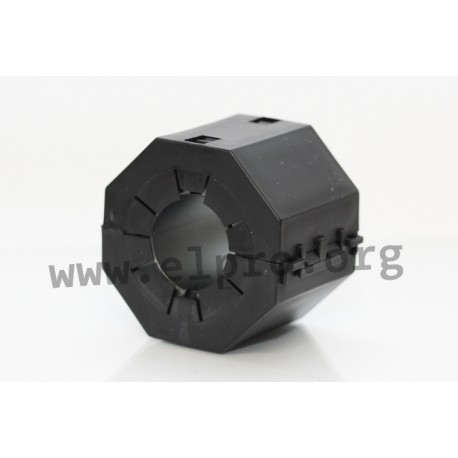

ferrite snap beads by Fair-Rite

* for round cables Ø 4.3 to 25.9mm (size B)
* ferrite material 31
* meets UL94V-0
* snap-it for easy, subsequent mounting
* for suppression of conducted interference 1...300MHz
* by Fair-Rite

material 31:
* initial permeability @B<10gauss: 1500µ
* flux density: 3400 gauss
* @field strength: 5 oersted
* residual flux density: 2500 gauss
* coercive force: 0.35 oersted
* loss factor @0.1MHz: 20x10-6 tan d/µ
* temperature coefficient of initial permeability: 1,6%/°C
* curie temperature: >130°C
* resistivity: 3x103Ω cm
431177081

431177081

39653 431177081 0431177081 ferrite snap beads by Fair-Rite. * for round cables Ø 4.3 to 25.9mm (size B)* ferrite material 31* meets UL94V-0* snap-it for easy, subsequent mounting* for suppression of conducted interference 1...300MHz* by Fair-Ritematerial 31:* initial permeability @B&lt;10gauss: 1500µ* flux density: 3400 gauss* @field strength: 5 oersted* residual flux density: 2500 gauss* coercive force: 0.35 oersted* loss factor @0.1MHz: 20x10-6 tan d/µ* temperature coefficient of initial permeability: 1,6%/°C* curie temperature: &gt;130°C* resistivity: 3x103Ω cm

Specifications

manufacturer
Manufacturer's name 0431177081

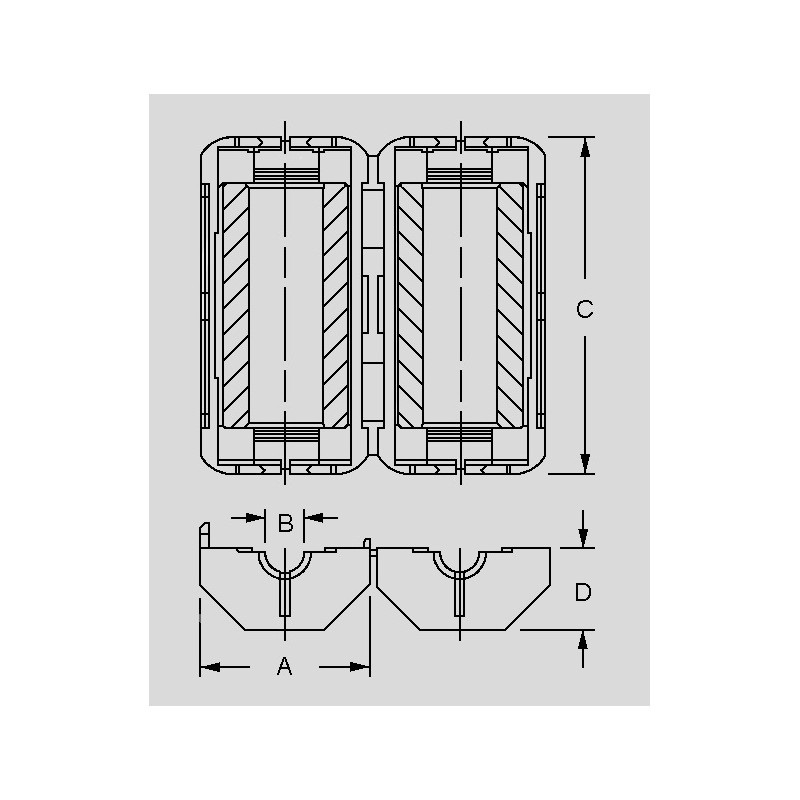

A [mm] 56,4
Width [mm] 25,9
D [mm] 27,45
C [mm] 42,95
Data Sheet

Unit price

18,59 €

Stock: 0
Further delivery:
CW 16/2025
