2661540002

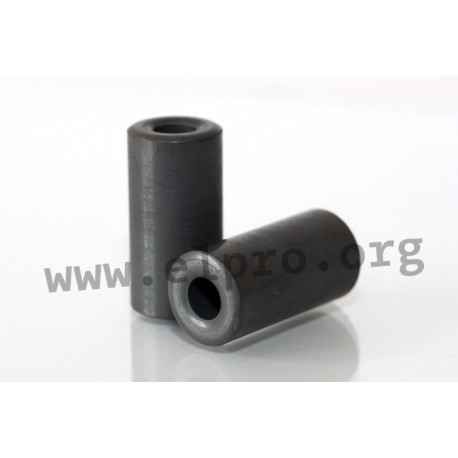

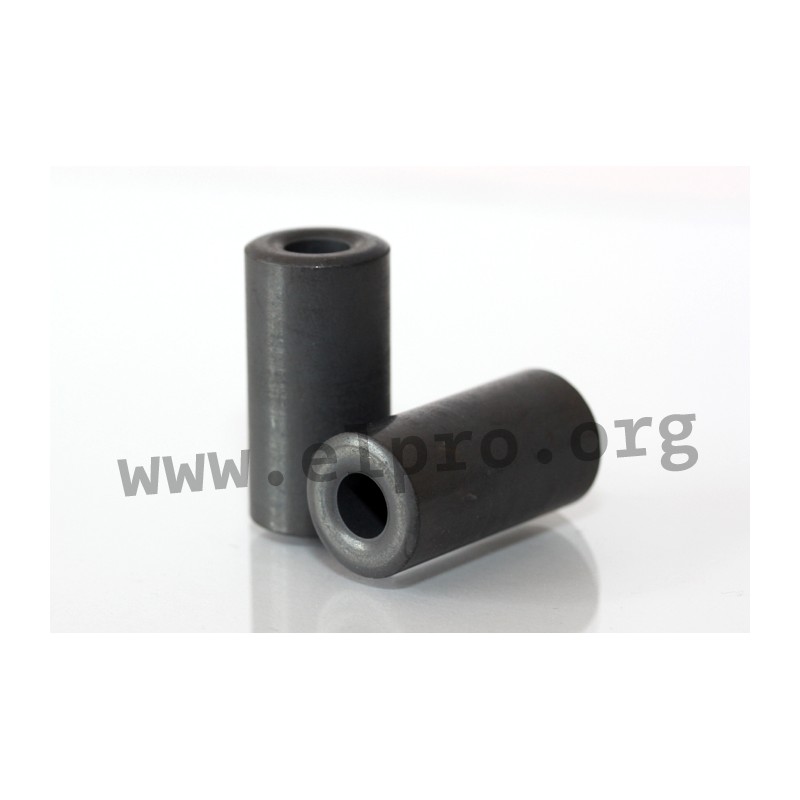

closed ferrite rings by Fair-Rite

* for round cables Ø 4.95 to 12.8mm (size B)
* ferrite material 61
* for suppression of conducted interference 400MHz...2GHz

material 61:
* initial permeability @B<10gauss: 125µ
* flux density: 2350 gauss
* @field strength: 15 oersted
* residual flux density: 1200 gauss
* coercive force: 1.8 oersted
* loss factor @1MHz: 30x10-6 tan d/µ
* temperature coefficient of initial permeability: 0.1%/°C
* curie temperature: >300°C
* resistivity: 1x108Ω cm
2661540002

2661540002

39682 2661540002 2661540002 closed ferrite rings by Fair-Rite. * for round cables Ø 4.95 to 12.8mm (size B)* ferrite material 61* for suppression of conducted interference 400MHz...2GHzmaterial 61:* initial permeability @B&lt;10gauss: 125µ* flux density: 2350 gauss* @field strength: 15 oersted* residual flux density: 1200 gauss* coercive force: 1.8 oersted* loss factor @1MHz: 30x10-6 tan d/µ* temperature coefficient of initial permeability: 0.1%/°C* curie temperature: &gt;300°C* resistivity: 1x108Ω cm

Specifications

manufacturer
Manufacturer's name 2661540002

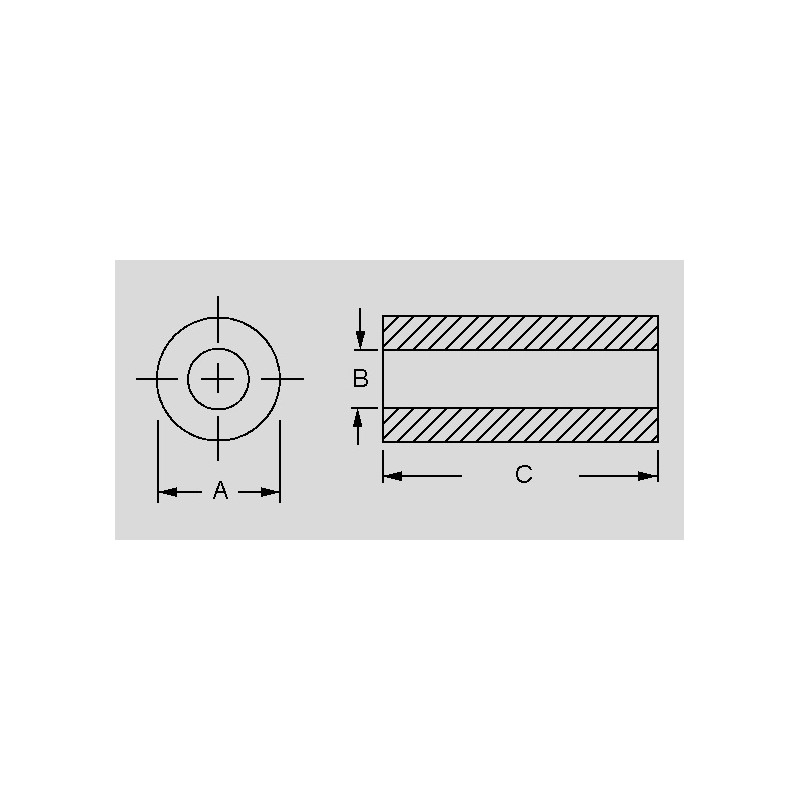

A [mm] 14,3
Width [mm] 6,35
C [mm] 28,6
Data Sheet

Unit price

1,88 €

Stock: 8
Next incoming goods:
CW 03/2025
376 units

Further delivery:
CW 16/2025

Minimum order quantity 8 units or
multiples of 8.
