2661480002

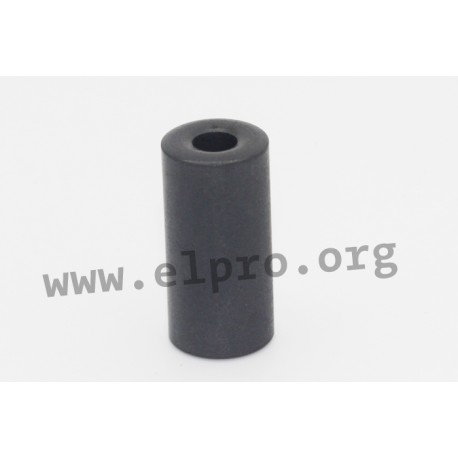

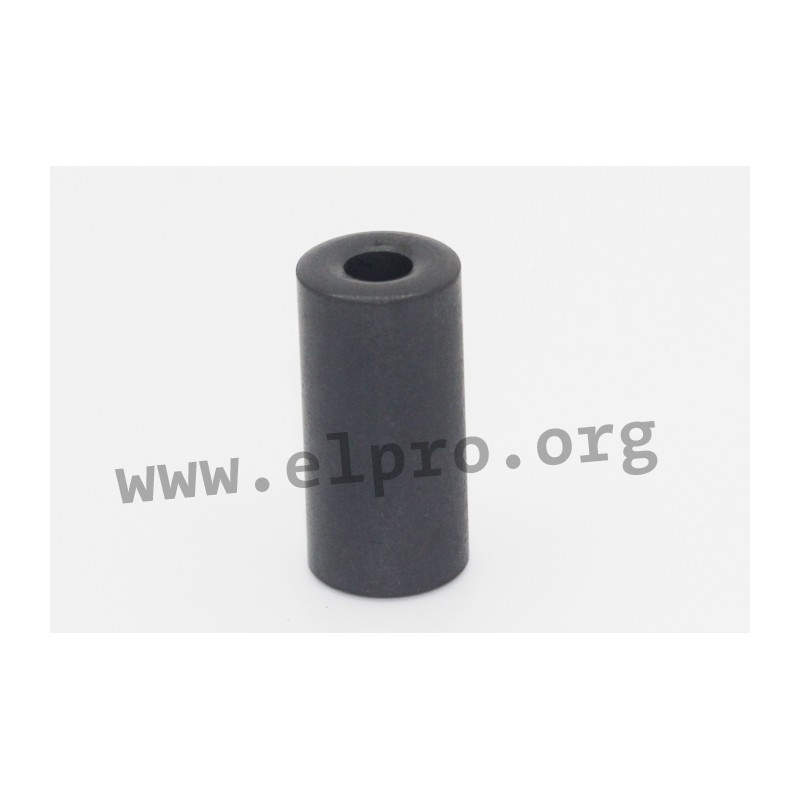

closed ferrite rings by Fair-Rite

* for round cables Ø 4.95 to 12.8mm (size B)
* ferrite material 61
* for suppression of conducted interference 400MHz...2GHz

material 61:
* initial permeability @B<10gauss: 125µ
* flux density: 2350 gauss
* @field strength: 15 oersted
* residual flux density: 1200 gauss
* coercive force: 1.8 oersted
* loss factor @1MHz: 30x10-6 tan d/µ
* temperature coefficient of initial permeability: 0.1%/°C
* curie temperature: >300°C
* resistivity: 1x108Ω cm
2661480002

2661480002

39681 2661480002 2661480002 closed ferrite rings by Fair-Rite. * for round cables Ø 4.95 to 12.8mm (size B)* ferrite material 61* for suppression of conducted interference 400MHz...2GHzmaterial 61:* initial permeability @B&lt;10gauss: 125µ* flux density: 2350 gauss* @field strength: 15 oersted* residual flux density: 1200 gauss* coercive force: 1.8 oersted* loss factor @1MHz: 30x10-6 tan d/µ* temperature coefficient of initial permeability: 0.1%/°C* curie temperature: &gt;300°C* resistivity: 1x108Ω cm

Specifications

manufacturer
Manufacturer's name 2661480002

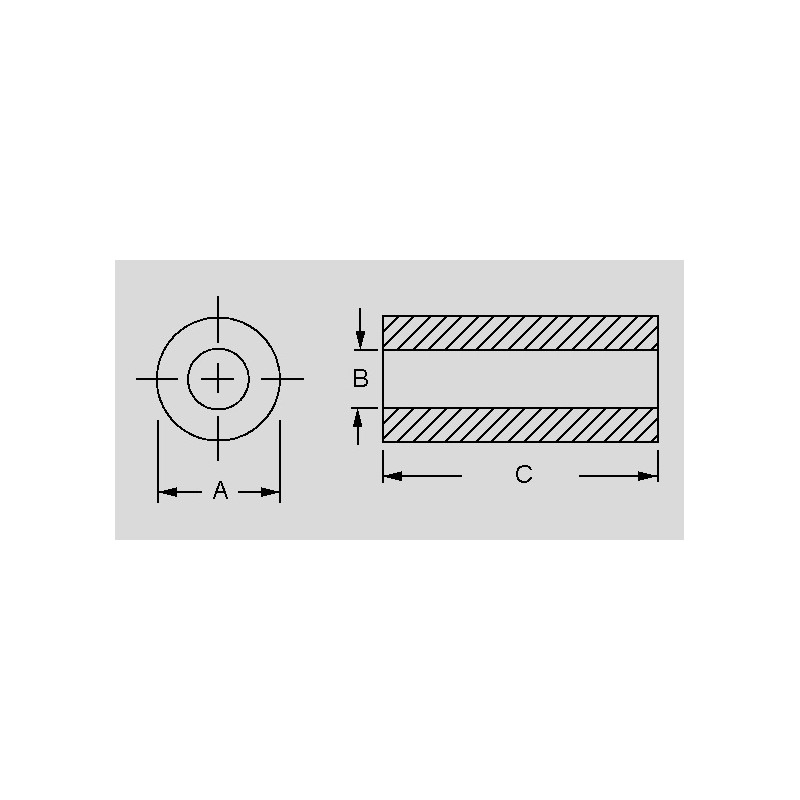

A [mm] 12,3
Width [mm] 4,95
C [mm] 25,4
Data Sheet

Unit price

1,03 €

Stock: 592
Further delivery:
CW 16/2025

Minimum order quantity 1 to 8 units or multiples of 12 plus 0 to 8 .
