2643102002

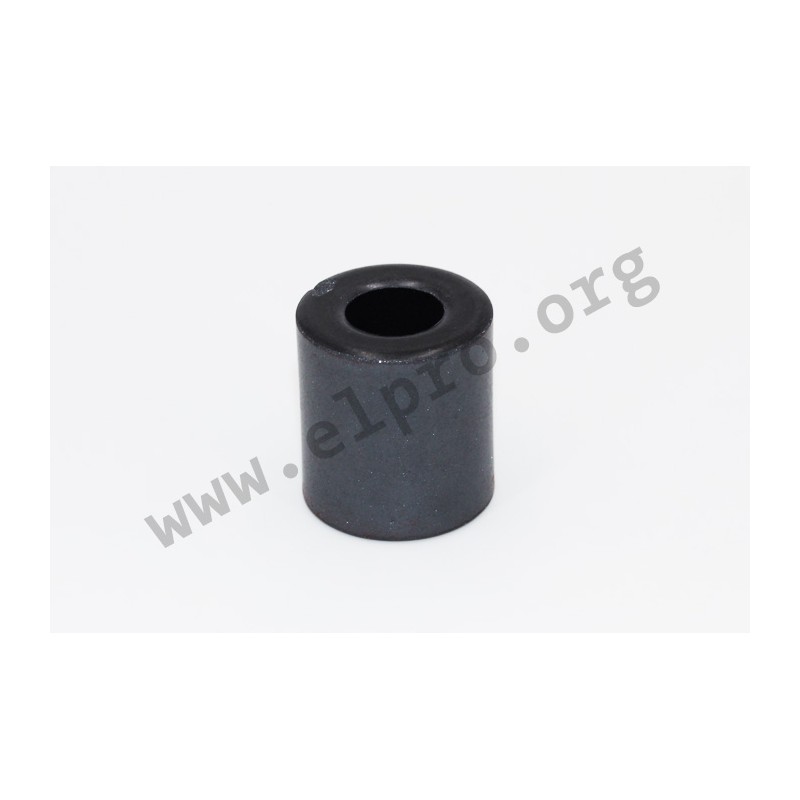

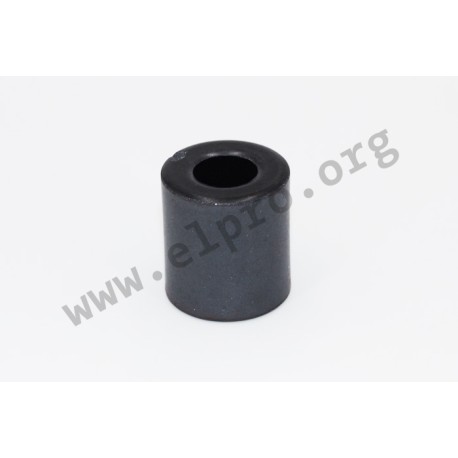

closed ferrite rings by Fair-Rite

* for round cables Ø 4.75 to 25.4mm (size B)
* ferrite material 43
* for suppression of conducted interference 100...600MHz

material 43:
* initial permeability @B<10gauss: 800µ
* flux density: 2900 gauss
* @field strength: 10 oersted
* residual flux density: 1300 gauss
* coercive force: 0.45 oersted
* loss factor @1MHz: 250x10-6 tan d/µ
* temperature coefficient of initial permeability: 1,25%/°C
* curie temperature: >130°C
* resistivity: 1x105Ω cm

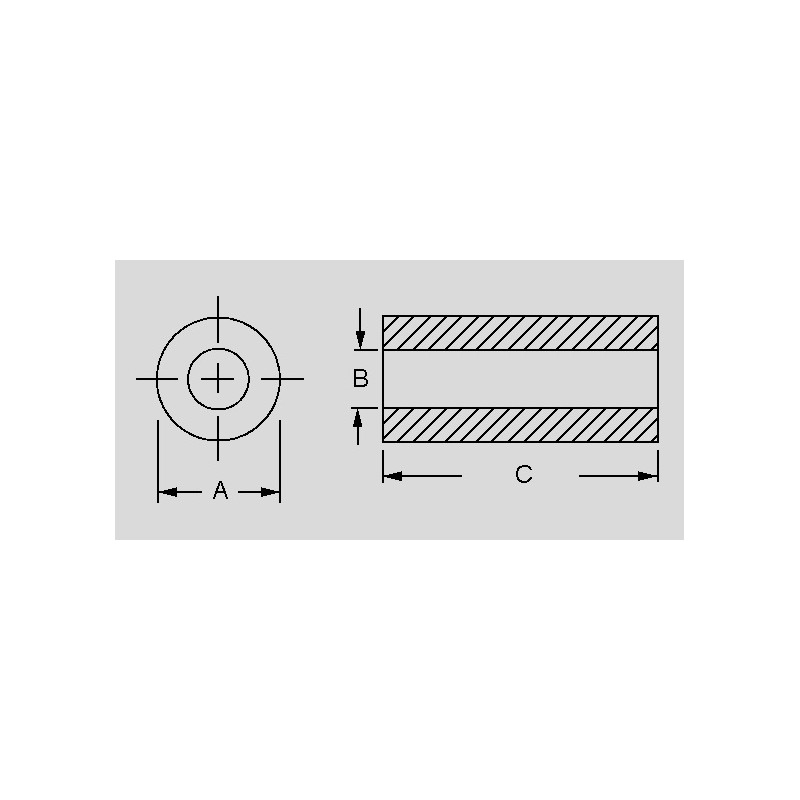

dimensions

2643102002

39678 2643102002 2643102002 closed ferrite rings by Fair-Rite. * for round cables Ø 4.75 to 25.4mm (size B)* ferrite material 43* for suppression of conducted interference 100...600MHzmaterial 43:* initial permeability @B&lt;10gauss: 800µ* flux density: 2900 gauss* @field strength: 10 oersted* residual flux density: 1300 gauss* coercive force: 0.45 oersted* loss factor @1MHz: 250x10-6 tan d/µ* temperature coefficient of initial permeability: 1,25%/°C* curie temperature: &gt;130°C* resistivity: 1x105Ω cm

Specifications

manufacturer
Manufacturer's name 2643102002
A [mm] 25,9
Width [mm] 12,8
C [mm] 28,6
Data Sheet

Unit price

2,59 €

Stock: 212
Further delivery:
CW 16/2025

Minimum order quantity 4 units or
multiples of 4.
