B 80 C 35000 DR

Fagor bridge rectifier series FB35

  • power bridge rectifiers
  • with a wire bonding (B_) or a tab terminal (FB_)
  • thermal resistance: 1,5°C/W
  • forward current: 35A

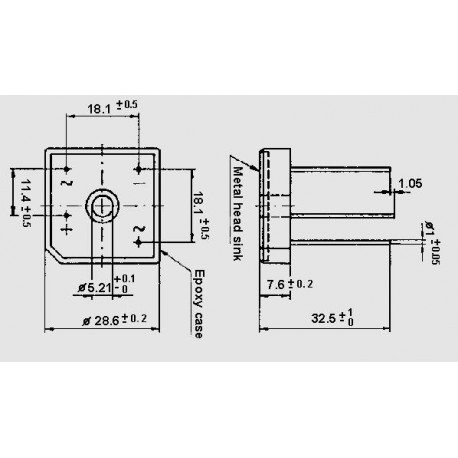

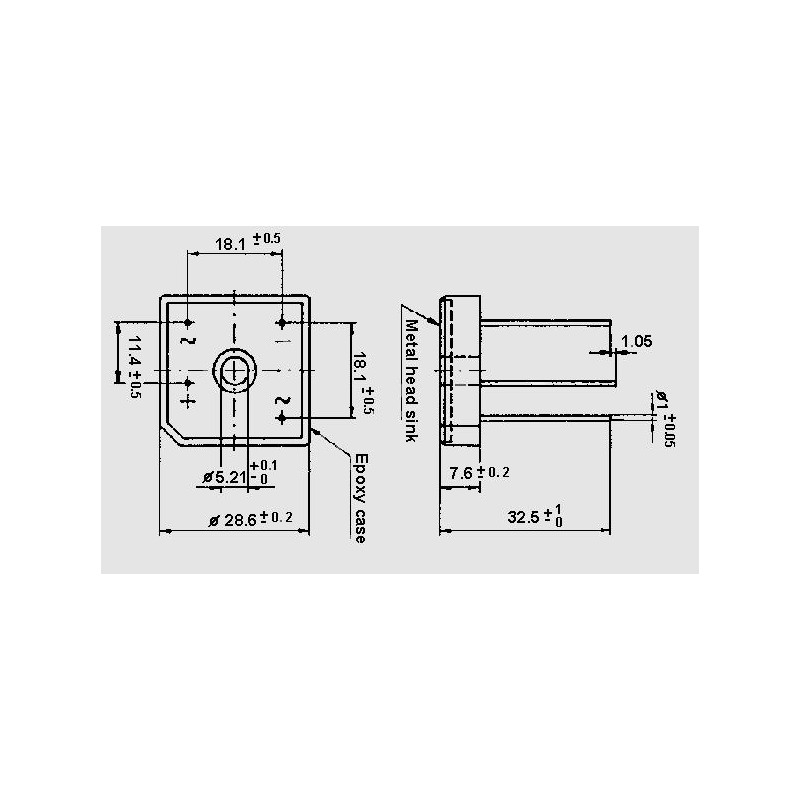

dimensions B _ C 35000 DR

B 80 C 35000 DR

25810 B 80 C 35000 DR FB3502L FB3502L Fagor bridge rectifier series FB35. power bridge rectifiers with a wire bonding (B_) or a tab terminal (FB_) thermal resistance: 1,5°C/W forward current: 35A

Specifications

manufacturer
Manufacturer's name FB3502L
Case power bridge...
(Max.) peak recurrent reverse voltage [V] 200
Forward voltage [V] 1,1
Reverse current [µA] 5
(Max.) average forward (rectified) current [A] 35
(Max.) RMS voltage [V] 140

Unit price

2,89 €

Stock: 0
Further delivery:
CW 30/2025

Minimum order quantity 500 units or
multiples of 500.
