B 500 C 25000 FS

Fagor bridge rectifier series FB25

  • power bridge rectifiers
  • glass passivated
  • with a tab terminal (B_ FS/FB 25_) or a wire bonding (FB 25_ L)
  • in a epoxy housing (UL94V-0)
  • maximal solderability: 260°C (40s)
  • operating temperature: -55 to +150°C
  • thermal resistance: 1,5°C/W
  • forward current: 25A

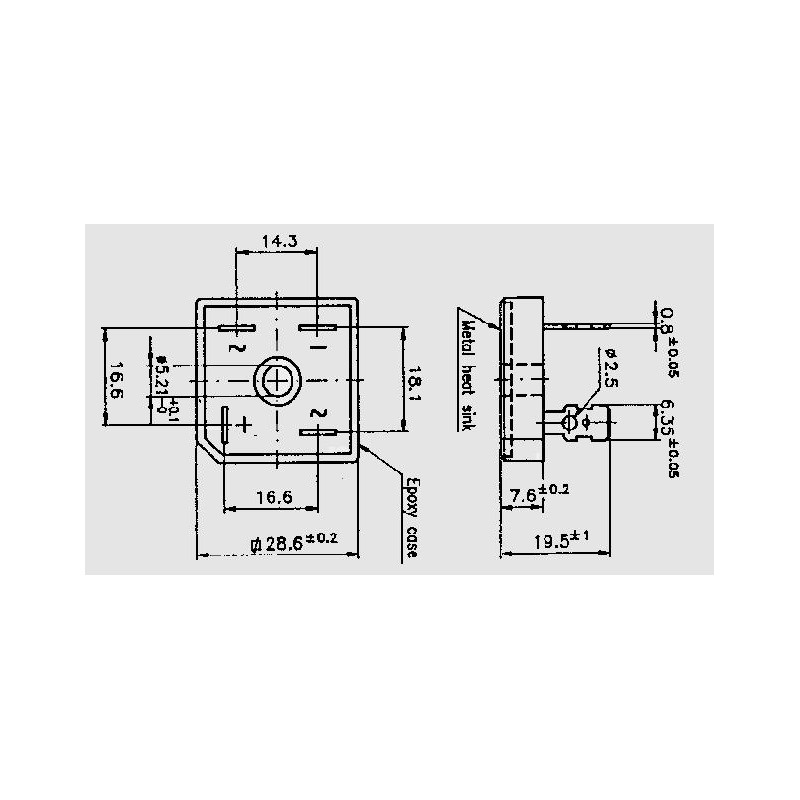

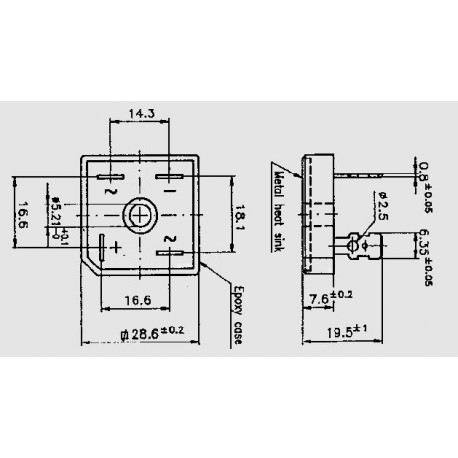

dimensions B _ C 25000 FS

B 500 C 25000 FS

25811 B 500 C 25000 FS FB2510 FB2510 Fagor bridge rectifier series FB25. power bridge rectifiers glass passivated with a tab terminal (B_ FS/FB 25_) or a wire bonding (FB 25_ L) in a epoxy housing (UL94V-0) maximal solderability: 260°C (40s) operating temperature: -55 to +150°C thermal resistance: 1,5°C/W forward current: 25A

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name FB2510
Case power bridge...
(Max.) peak recurrent reverse voltage [V] 1000
Forward voltage [V] 1,1
Reverse current [µA] 5
(Max.) average forward (rectified) current [A] 25
(Max.) RMS voltage [V] 700
Data Sheet

Unit price

2,99 €

Stock: 61

Minimum order quantity 1 unit or multiples of 5 plus 0 to 1 .
