> Semiconductors>Rectifiers>In-Line housing>Fagor flat rectifiers, 5A, FB and D5.1XB series>D5.1 XB 20

Manufacturers

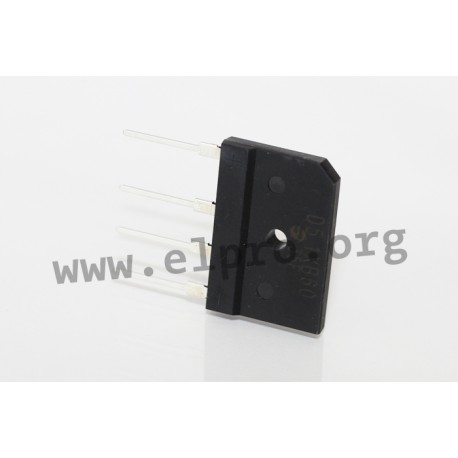

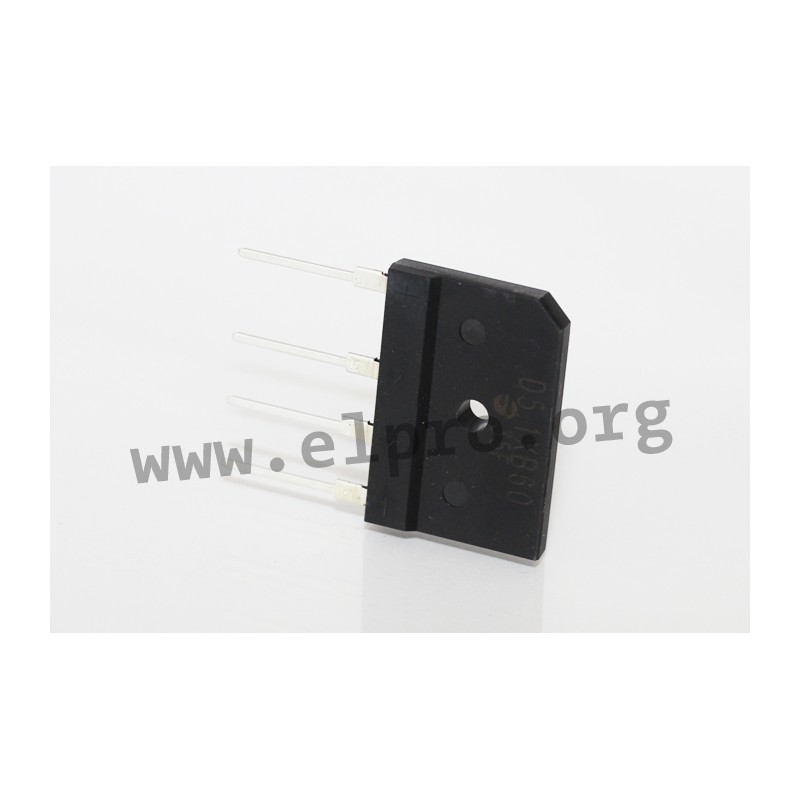

D5.1 XB 20

Fagor flat rectifier series FB and D5.1XB

  • bridge rectifiers
  • glass passivated
  • in an In-Line housing with an elongated (FB_) resp. a circular hole (D5.1_)

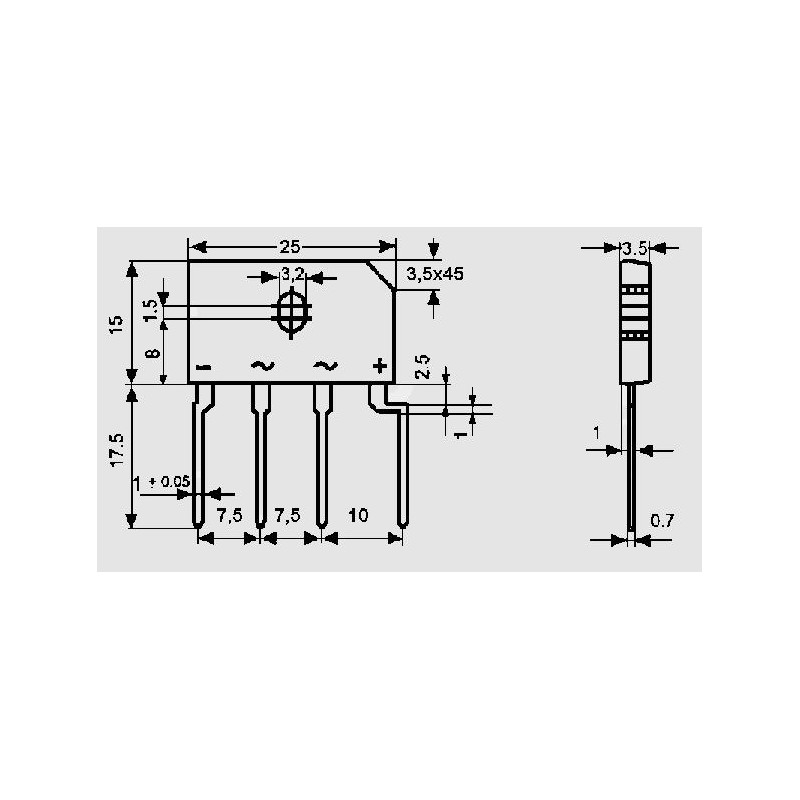

  • pin spacing 7,5/7,5/10mm
  • comply with UL94V-0
  • solderability: max. 260°C/10s
  • operating temperature: -40 to +150°C
  • forward current: 5A (with an additional heatsink)
D5.1 XB

D5.1 XB 20

35644 D5.1 XB 20 D5.1XB20 D5.1XB20 Fagor flat rectifier series FB and D5.1XB. bridge rectifiers   glass passivated  in an In-Line housing with an elongated (FB_) resp. a circular hole (D5.1_) pin spacing 7,5/7,5/10mm comply with UL94V-0 solderability: max. 260°C/10s operating temperature: -40 to +150°C forward current: 5A (with an additional heatsink)

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name D5.1XB20
Case flat rectifiers
(Max.) peak recurrent reverse voltage [V] 200
Forward voltage [V] 1
Reverse current [µA] 5
(Max.) average forward (rectified) current [A] 5
(Max.) RMS voltage [V] 140
Data Sheet

Unit price

0,549 €

Stock: 745

Minimum order quantity 10 units or
multiples of 10.
