EGP 50 G

ultra fast rectifier diodes 5A

* glass passivated
* taped
* housings: DO15
* plastic conforms to UL94V-0
* axial leads solderable per MIL-STD-202, Meth. 208
* max. solderability: 250°C/10s

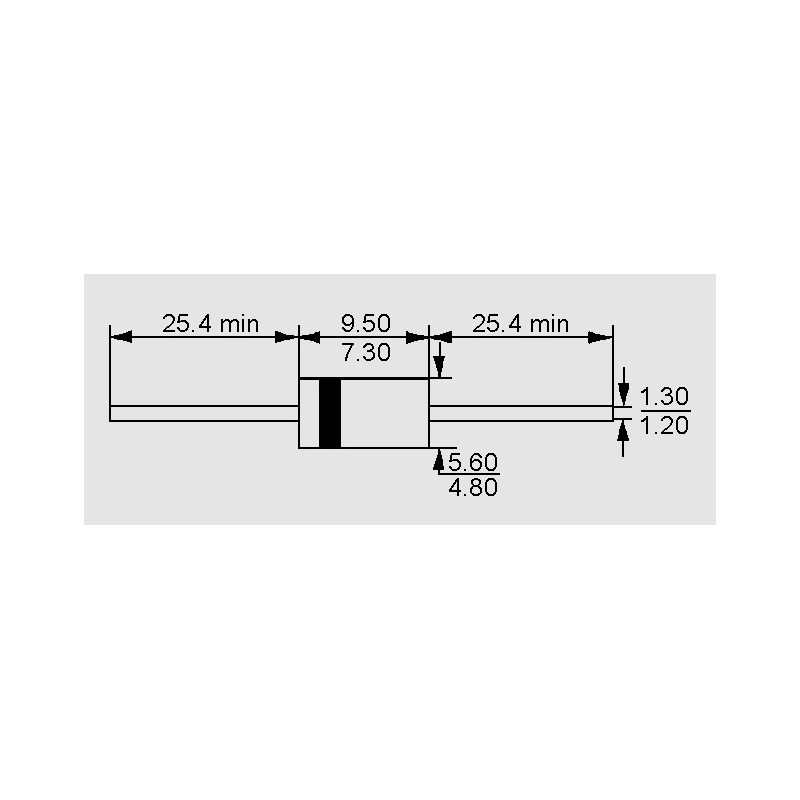

dimensions

EGP 50 G

336 EGP 50 G EGP50G EGP50G ultra fast rectifier diodes 5A. * glass passivated* taped* housings: DO15* plastic conforms to UL94V-0* axial leads solderable per MIL-STD-202, Meth. 208* max. solderability: 250°C/10s

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name EGP50G
Case DO201AD
Peak forward surge current [A] 150
Max. reverse recovery time [ns] 50
(Max.) peak recurrent reverse voltage [V] 400
Forward voltage [V] 1,25
(Max.) average forward (rectified) current [A] 5
Reverse current [µA] 5

Unit price

0,236 €

Stock: 175
Next incoming goods:
CW 01/2025
3000 units

Minimum order quantity 25 units or
multiples of 25.
