19-213UYC/S530-XX/TR8

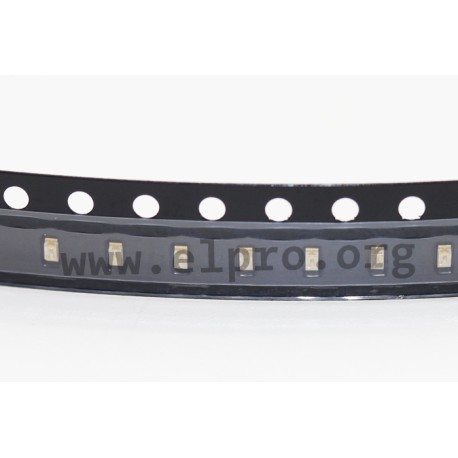

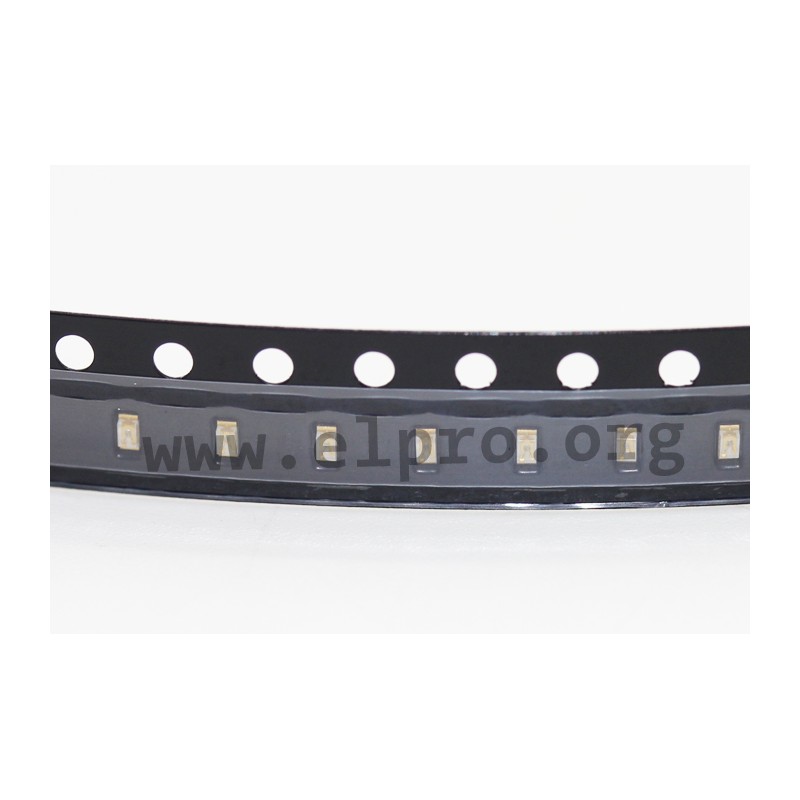

Everlight SMD light-emitting diode series 19-213

  • clear or white diffuse LEDs
  • in a 0603 SMD housing
  • with a low height of 0,6mm

19-213UYC/S530-XX/TR8

33817 19-213UYC/S530-XX/TR8 19-213UYC/S530-A2/TR 19-213UYC/S530-A2/TR Everlight SMD light-emitting diode series 19-213. clear or white diffuse LEDs in a 0603 SMD housing with a low height of 0,6mm

Specifications

manufacturer
Manufacturer's name 19-213UYC/S5...
Colour yellow
Casing design clear
Forward voltage [V] 2
Diameter [mm] 0603
Forward current [mA] 20
Wavelength [nm] 591
Luminous intensity [µcd] 39
Viewing angle [°] 120
Data Sheet

Unit price

0,046 €

Stock: 8600
Further delivery:
CW 14/2025

Minimum order quantity 100 units or
multiples of 100.
