> Passive elements>Distance bolts / spacing rollers>Brass spacers>Essentra Components brass spacers, UNC4-40/M3 inner/outer thread>DB IA UNC4-40x5/M3x8

Manufacturers

DB IA UNC4-40x5/M3x8

brass adapter spacers

* made of brass, nickel-plated
*with inner thread UNC4-40 and threaded bar M3
* suitable for the assembly of D-Sub plug connectors
* length tolerance: ±0,1mm
* key width (SW): 5mm
* thread (G1): UNC 4-40
* thread (G2): M3

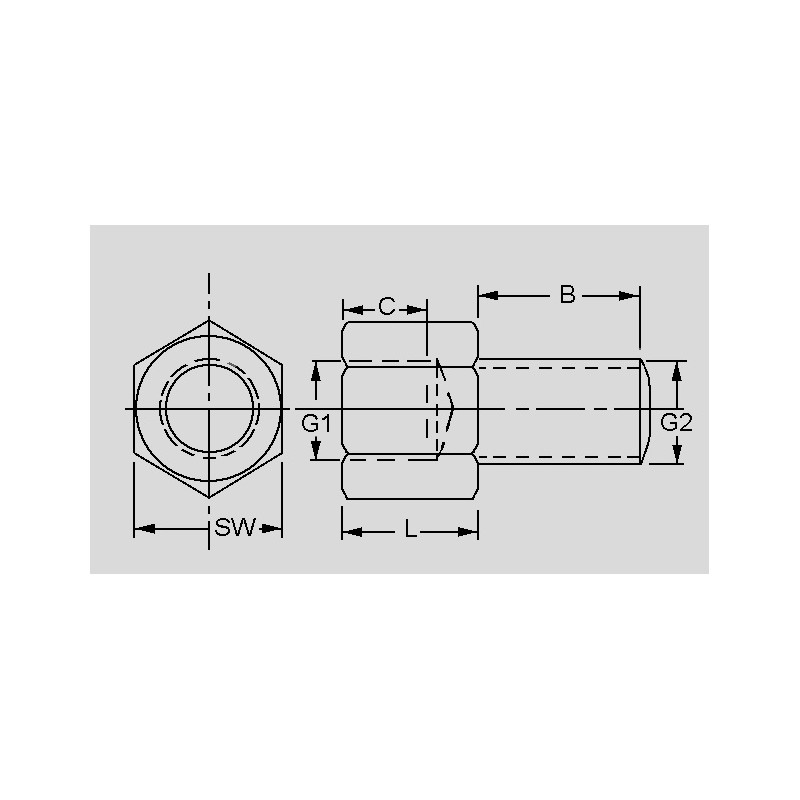

dimensions

DB IA UNC4-40x5/M3x8

42171 DB IA UNC4-40x5/M3x8 308202040050 308202040050 brass adapter spacers. * made of brass, nickel-plated*with inner thread UNC4-40 and threaded bar M3* suitable for the assembly of D-Sub plug connectors* length tolerance: ±0,1mm* key width (SW): 5mm* thread (G1): UNC 4-40* thread (G2): M3

Specifications

manufacturer
Manufacturer's name 308202040050
B [mm] 8
C [mm] 3
Length [mm] 5
Data Sheet

Unit price

0,119 €

Stock: 17600
Next incoming goods:
CW 03/2025
4000 units

Further delivery:
CW 10/2025

Minimum order quantity 100 units or
multiples of 100.
