> Passive elements>Fuses>Miniature fuse links>Eska miniature fuse links, time lag, radial, short terminals, 887000 series>166.5 2 A

Manufacturers

166.5 2 A

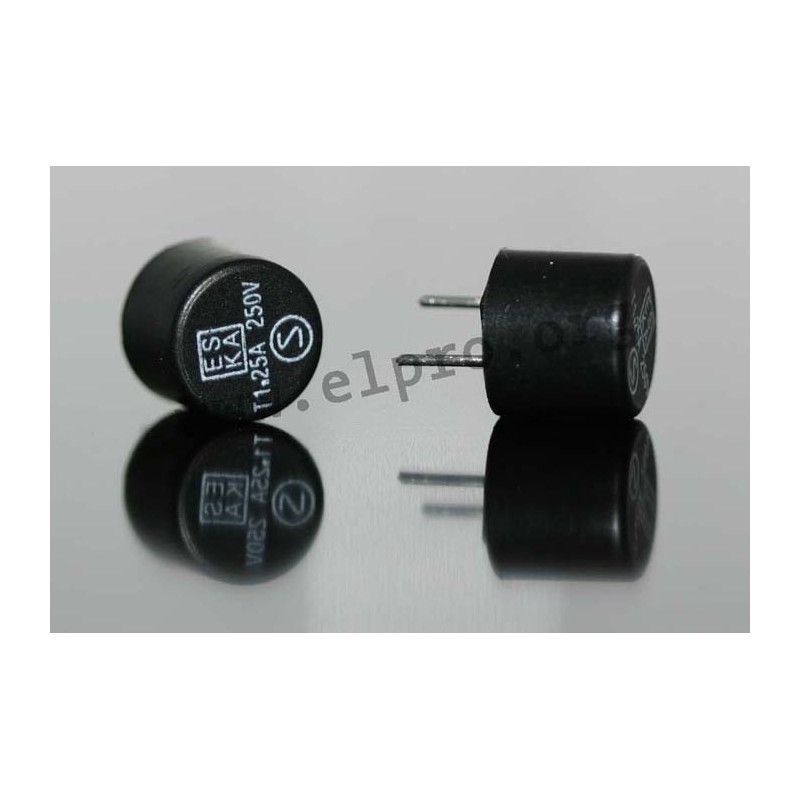

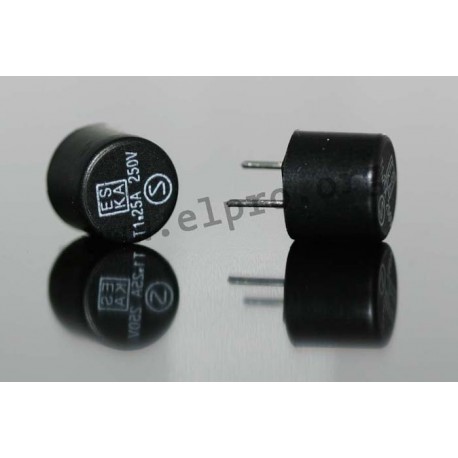

Eska fuse series 887000

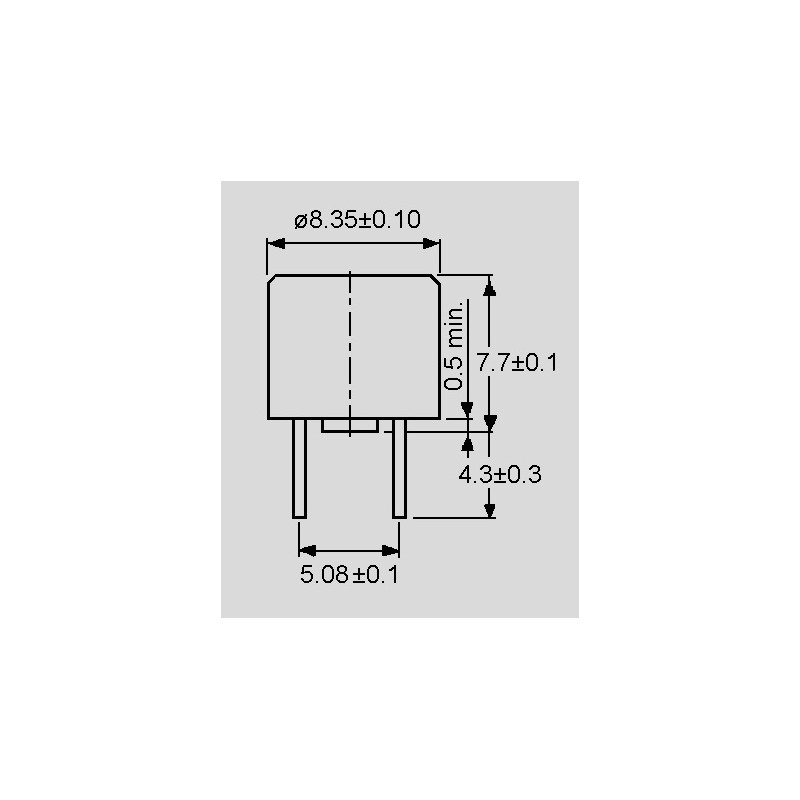

  • time lag subminiature fuses in a self-extinguishing thermoplastic housing (UL94V-0)
  • 4,3mm tinned pins (Ø0,6mm)
  • radial type with Ø8,35mm
  • pluggable and solderable
  • rated voltage: 250V
  • rated current: 0,05 to 6,3A
  • breaking capacity: 35A
short terminals, 4.3mm

166.5 2 A

4103 166.5 2 A 887.020 887.020 Eska fuse series 887000. time lag subminiature fuses in a self-extinguishing thermoplastic housing (UL94V-0) 4,3mm tinned pins (Ø0,6mm) radial type with Ø8,35mm pluggable and solderable rated voltage: 250V rated current: 0,05 to 6,3A breaking capacity: 35A

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 887.020
Design time lag
Rated current [mA] 2000
Connections short
Data Sheet

Unit price

0,26 €

Stock: 2

Minimum order quantity 1 to 2 units or multiples of 10 plus 0 to 2 .
