> Passive elements>Fuses>Fuse links>Eska fuse links, 5x20mm, time lag, 250V, 522500 and 522000 series>5 x 20 T 3,15 A

Manufacturers

5 x 20 T 3,15 A

Eska fuse link series 522500 and 522000

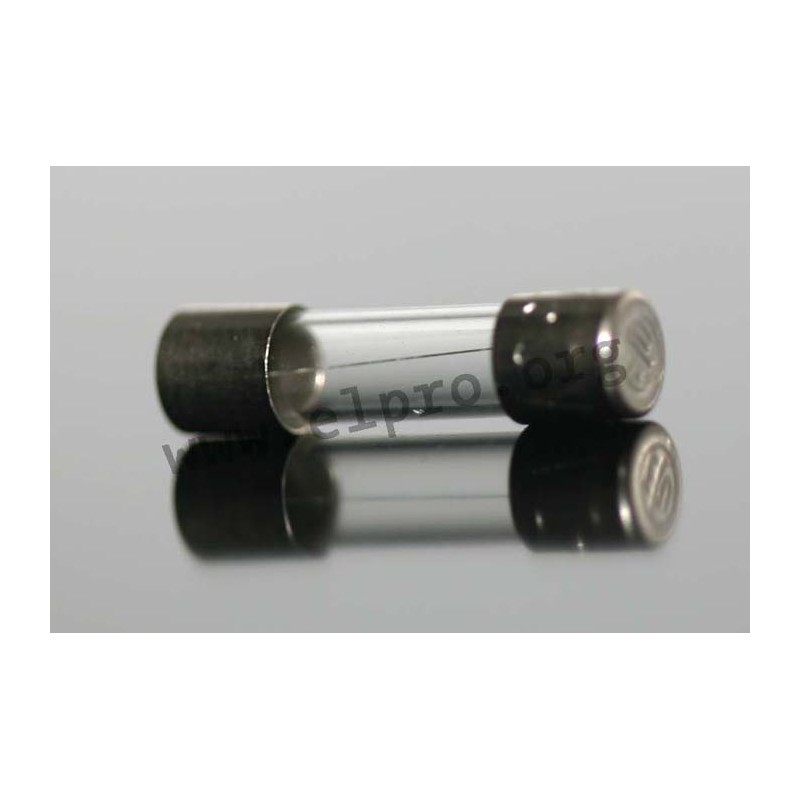

Fuse links in a 5x20mm housing made of glass with nickel-plated end caps made of brass. These fuses have a time lag characteristic (T) and are suitable for a broad range of applications. We offer various types of this Eska series.

  • rated voltage: 250V
  • rated current: 0,032 to 12,5A
  • characteristic: time lag
  • housing: 5x20mm
housing: 5x20 mm

5 x 20 T 3,15 A

5185 5 x 20 T 3,15 A 522522 522522 Eska fuse link series 522500 and 522000. Fuse links in a 5x20mm housing made of glass with nickel-plated end caps made of brass. These fuses have a time lag characteristic (T) and are suitable for a broad range of applications. We offer various types of this Eska series. rated voltage: 250V rated current: 0,032 to 12,5A characteristic: time lag housing: 5x20mm

Specifications

manufacturer
Manufacturer's name 522522
Design time lag
Rated current [mA] 3150
Data Sheet

Unit price

0,104 €

Stock: 2485
Further delivery:
CW 49/2024

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
