341.831

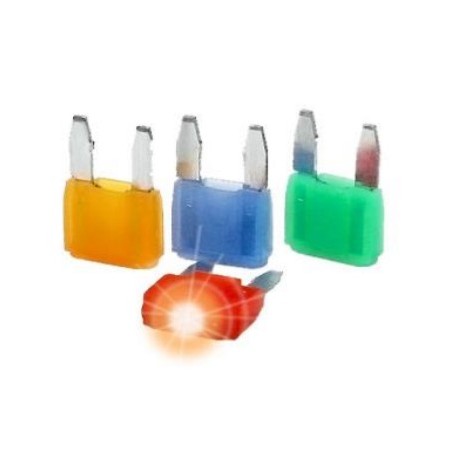

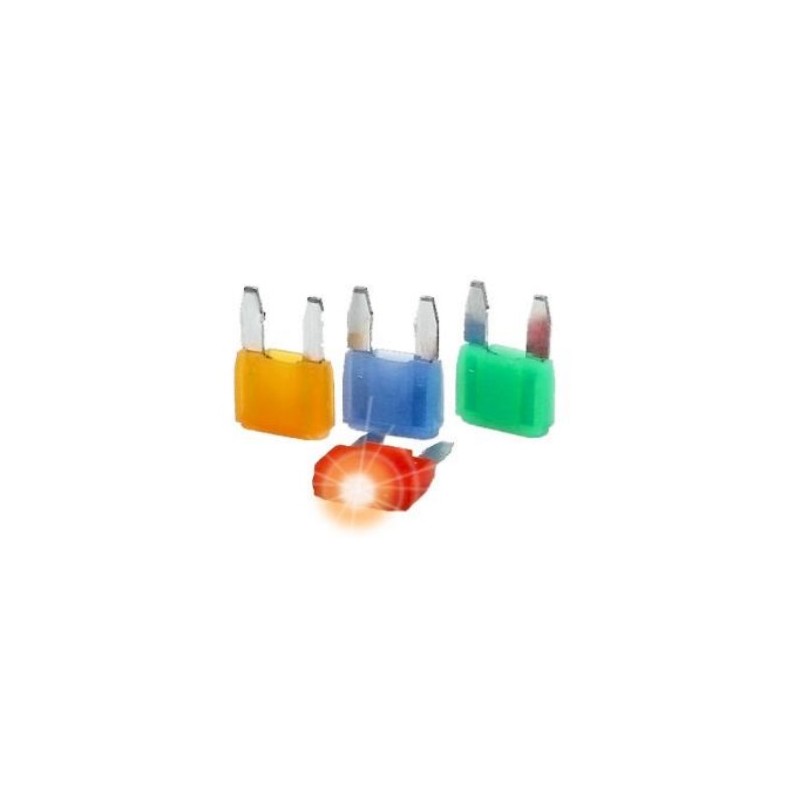

ESKA automotive fuse series 341.800 Mini

  • automotive blade type fuses in an insulating plastic housing
  • with an LED and zinc alloy contacts
  • suitable for automotive applications
  • breaking capacity: 1000A
  • rated current: 2 to 30A
  • rated voltage: 32/58V

341.831

238100 341.831 341.831 ESKA automotive fuse series 341.800 Mini. automotive blade type fuses in an insulating plastic housing with an LED and zinc alloy contacts suitable for automotive applications breaking capacity: 1000A rated current: 2 to 30A rated voltage: 32/58V

Specifications

manufacturer
Manufacturer's name 341.831
Colour yellow
Contact resistance, max. [mΩ] 3,2
Rated current [A] 20
Nominal voltage [V] 58
Breaking current [A] 1000
Data Sheet

Unit price

0,54 €

Stock: 175
Further delivery:
CW 08/2025

Minimum order quantity 25 units or
multiples of 25.
