X1G005961003912 33,3333MHz

Epson crystal oscillator series SG3225

SMD quartz crystal oscillators in a metal housing with a CMOS output and a frequency of 4 to 156,25MHz. These devices have a compact size (3,2x2,5x1,05mm) and are suitable for direct PCB mounting. We offer various types of this Epson series.

  • frequency: 4 to 156,25MHz
  • dimensions: 3,2x2,5x1,05mm
  • taped
X1G005961003912, Epson crystal oscillators, SMD, metal housing, CMOS, SG3225 series

X1G005961003912 33,3333MHz

243051 X1G005961003912 33,3333MHz X1G005961003912 X1G005961003912 Epson crystal oscillator series SG3225. SMD quartz crystal oscillators in a metal housing with a CMOS output and a frequency of 4 to 156,25MHz. These devices have a compact size (3,2x2,5x1,05mm) and are suitable for direct PCB mounting. We offer various types of this Epson series. frequency: 4 to 156,25MHz dimensions: 3,2x2,5x1,05mm taped

Specifications

manufacturer
Manufacturer's name X1G005961003912
Frequency [MHz] 33,3333

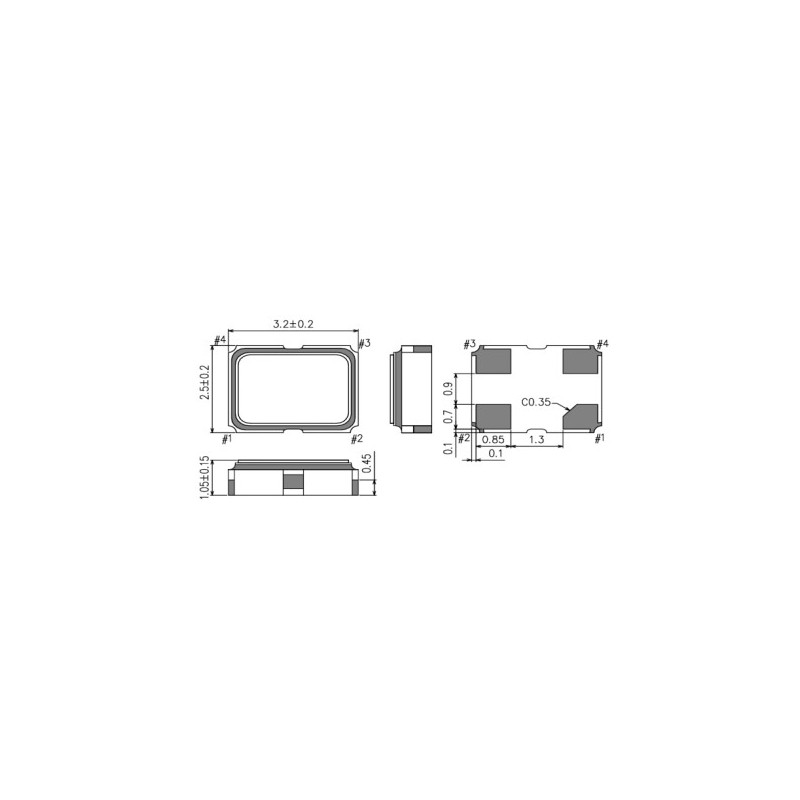

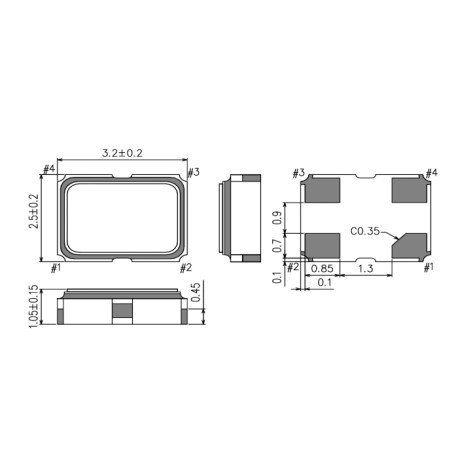

Dimensions [mm] 3,2x2,5x1,05
Data Sheet

Unit price

0,984 €

Stock: 250
Further delivery:
CW 09/2025

Minimum order quantity 5 units or
multiples of 5.
