X1G005901000111 156,25MHz

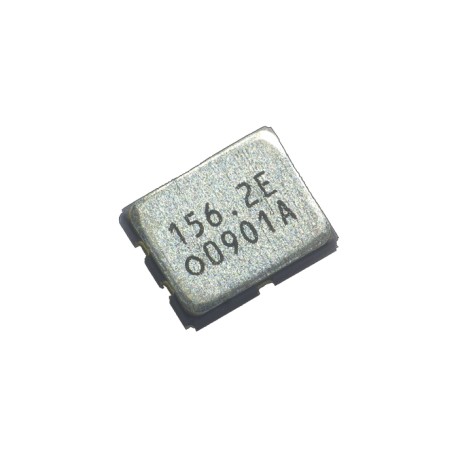

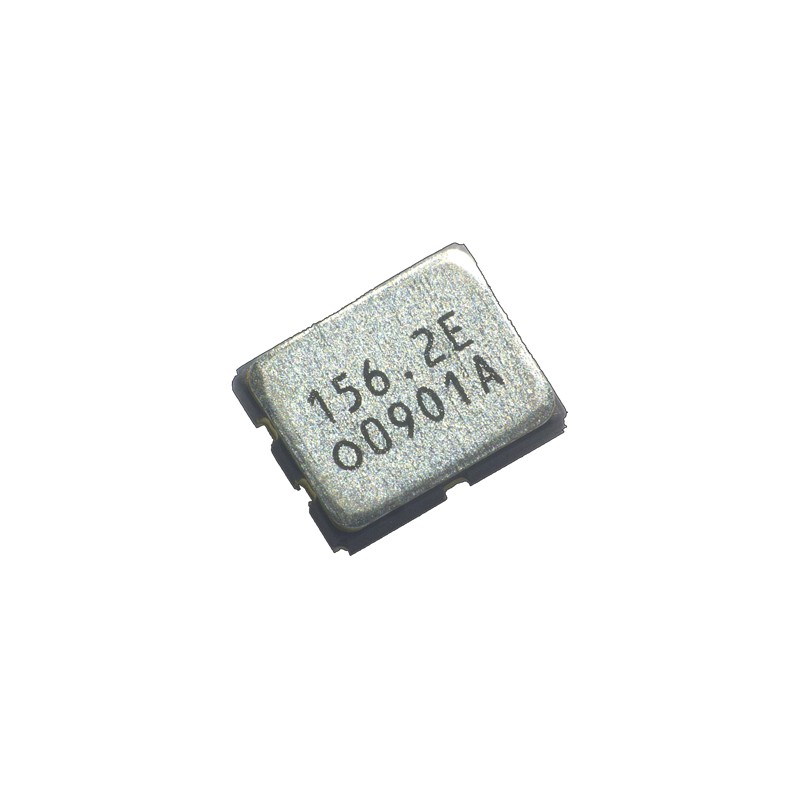

Epson crystal oscillator series SG2520

SMD quartz crystal oscillators in a metal housing with a frequency of 156,25 to 391,77MHz. These devices have a space-saving design (2x2,5x0,74mm) and are suitable for direct PCB mounting (SMD). They feature a differential signalling (LV-PECL / LVDS) and are suitable for a wide range of applications. We offer the following types of this Epson series: X1G005881000111, X1G005921000111, X1G005901000111, X1G005941000111, X1G005941000311 and X1G005941060211.

  • frequency: 156,25 to 391,77MHz
  • dimensions: 2x2,5x0,74mm
  • taped
X1G005901000111, Epson crystal oscillators, SMD, metal housing, LV-PECL, LVDS, SG2520 series

X1G005901000111 156,25MHz

242997 X1G005901000111 156,25MHz X1G005901000111 X1G005901000111 Epson crystal oscillator series SG2520. SMD quartz crystal oscillators in a metal housing with a frequency of 156,25 to 391,77MHz. These devices have a space-saving design (2x2,5x0,74mm) and are suitable for direct PCB mounting (SMD). They feature a differential signalling (LV-PECL / LVDS) and are suitable for a wide range of applications. We offer the following types of this Epson series: X1G005881000111, X1G005921000111, X1G005901000111, X1G005941000111, X1G005941000311 and X1G005941060211. frequency: 156,25 to 391,77MHz dimensions: 2x2,5x0,74mm taped

Specifications

manufacturer
Manufacturer's name X1G005901000111
Frequency [MHz] 156,25
Data Sheet

Unit price

19,09 €

Stock: 20
Further delivery:
CW 09/2025

Minimum order quantity 5 units or
multiples of 5.
