Q33310F70017014

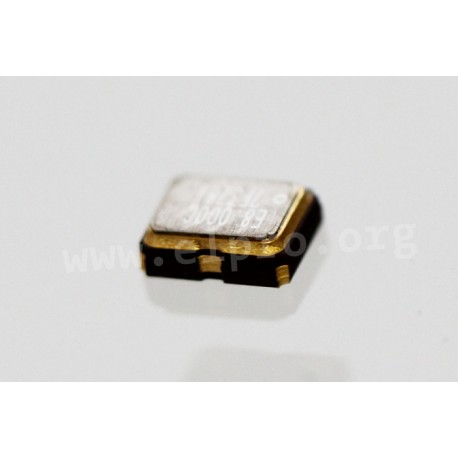

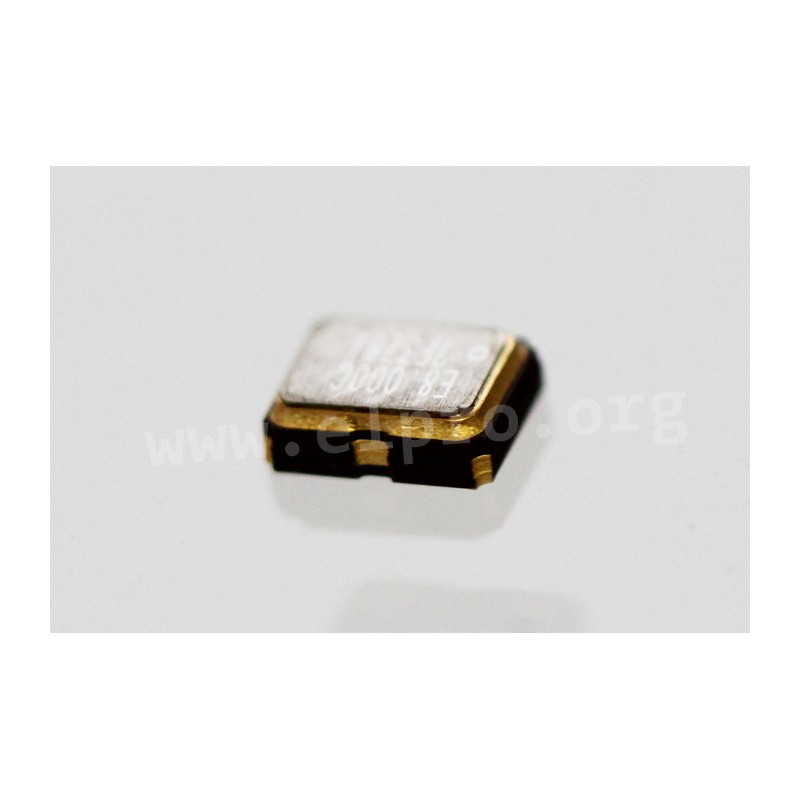

SMD crystal oscillators SG-310 by Epson

• frequency: 4...48MHz

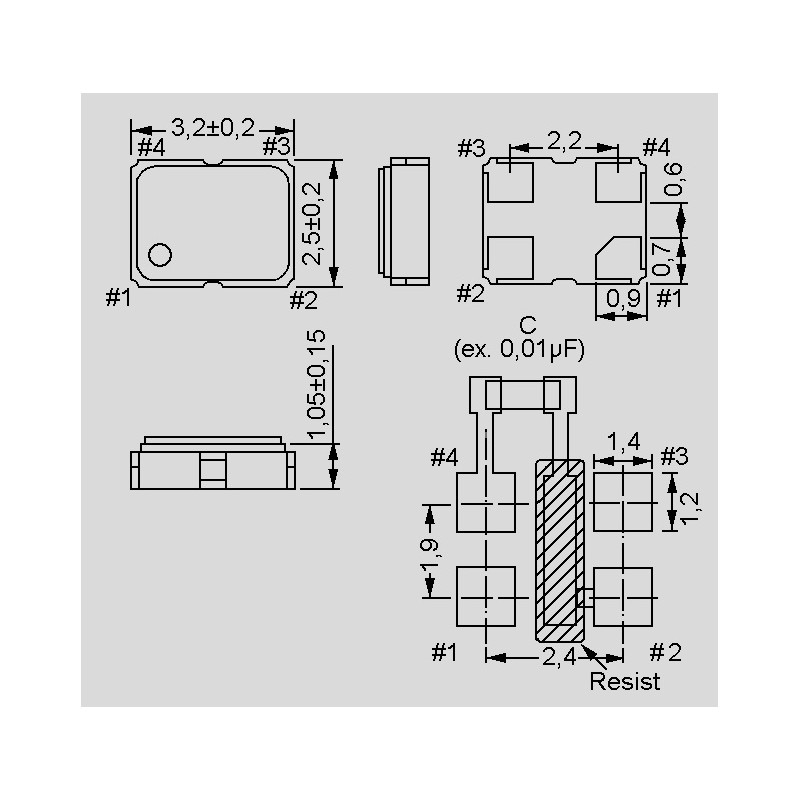

• in metal housing 3.2x2.5x1.05mm
• frequency tolerance (-20...+70°C): ±100ppm
• operating temperature: -40...+85°C
• operating voltage (VCC): 2.7...3.6V DC
• current requirement, max.: 4.5mA (3,3V)
• output voltage
"1"-Level, min.: 90% VCC
"0"-Level, max.: 10% VCC
• by Epson

Q33310F70017014

Q33310F70017014

43311 Q33310F70017014 Q33310F70017014 SMD crystal oscillators SG-310 by Epson. • frequency: 4...48MHz• in metal housing 3.2x2.5x1.05mm• frequency tolerance (-20...+70°C): ±100ppm• operating temperature: -40...+85°C• operating voltage (VCC): 2.7...3.6V DC• current requirement, max.: 4.5mA (3,3V)• output voltage"1"-Level, min.: 90% VCC"0"-Level, max.: 10% VCC• by Epson

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name Q33310F70017014
Case 3,2 x 2,5 x 1,5 mm
Frequency [MHz] 40
Data Sheet

Unit price

0,882 €

Stock: 590

Minimum order quantity 5 units or
multiples of 5.
