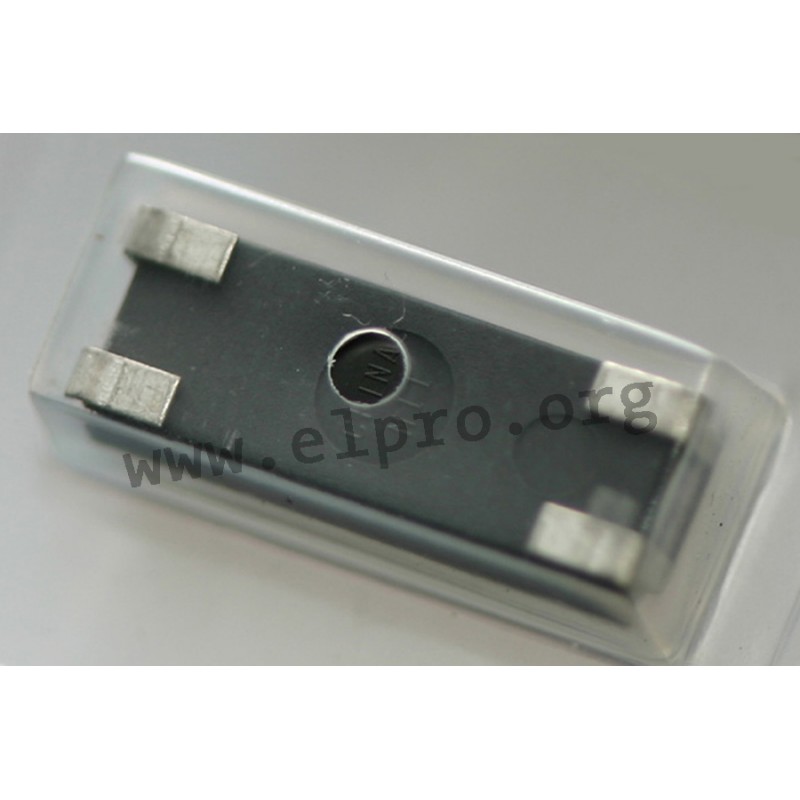

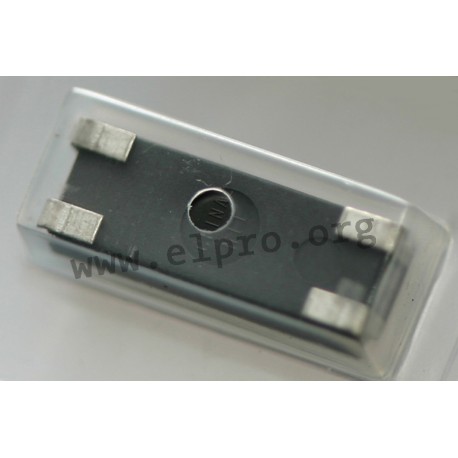

Q-SMD 8 MHz

SMD microprocessor quartz crystals

* in plastic housing
* frequence: 4 bis 40MHz
* Epson series MA-406 and MA-505 (Q-SMD)
* operating temperature range: up -20 to +70°C
Q-SMD / MA-505 series

Q-SMD 8 MHz

3845 Q-SMD 8 MHz Q22MA5051004900 Q22MA5051004900 SMD microprocessor quartz crystals. * in plastic housing * frequence: 4 bis 40MHz* Epson series MA-406 and MA-505 (Q-SMD)* operating temperature range: up -20 to +70°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name Q22MA5051004900
Design fundamental
Load capacitance [pF] 16
Equivalent series resistance, max. [Ω] 80
Frequency [MHz] 8
Data Sheet

Unit price

0,91 €

Stock: 1
