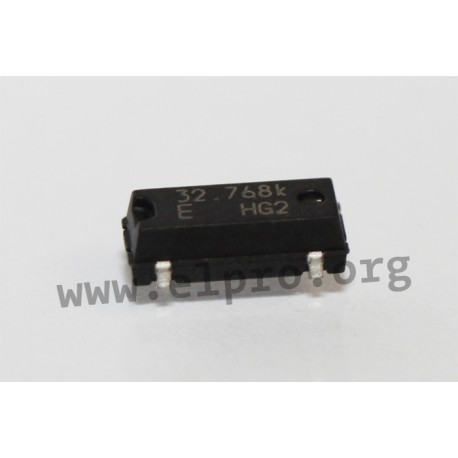

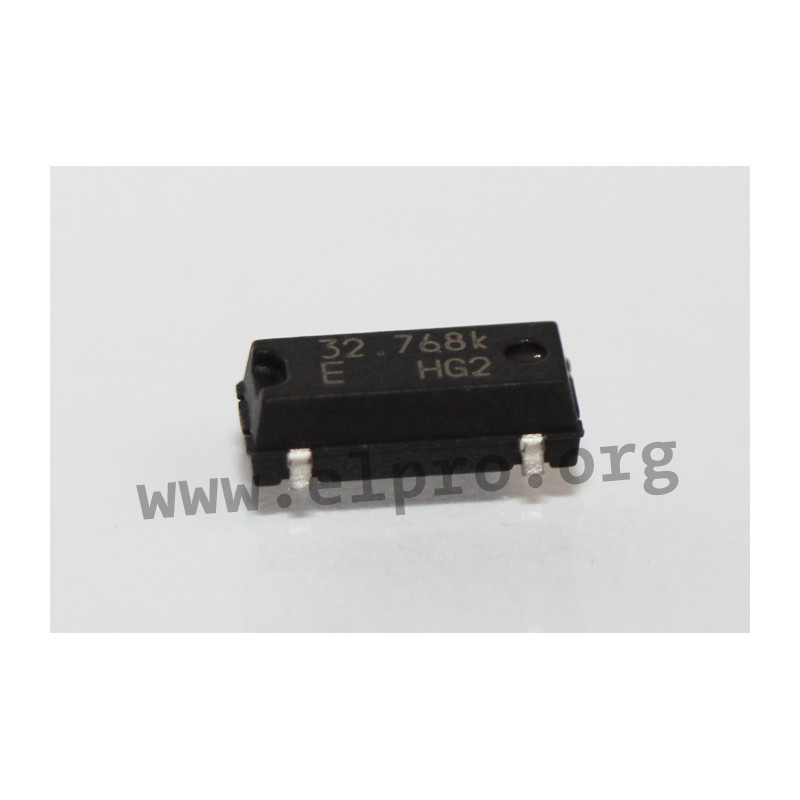

Q-SMD 32,768 kHz MC-306

Epson clock quartz crystal series FC-135/MC-146/FC-12M/MC-306

  • surface mount clock quartz crystals with a frequency of 32,768kHz
  • maximal frequency aging: ±3ppm/year
  • maximal level of drive: 0,5µW
  • operating temperature: -40 to +85°C
Q-SMD 32,768 kHz MC-306

Q-SMD 32,768 kHz MC-306

25825 Q-SMD 32,768 kHz MC-306 Q13MC3061000314 Q13MC3061000314 Epson clock quartz crystal series FC-135/MC-146/FC-12M/MC-306. surface mount clock quartz crystals with a frequency of 32,768kHz maximal frequency aging: ±3ppm/year maximal level of drive: 0,5µW operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name Q13MC3061000314
Case SMD
Operating temperature range [°C] -40...+85
(TU=25°C) ±20ppm
Load capacitance [pF] 12,5
Frequency tolerance [ppm] ±20ppm
Frequency [kHz] 32,768
Data Sheet

Unit price

0,392 €

Stock: 17207
Further delivery:
CW 12/2025

Minimum order quantity 1 to 7 units or multiples of 10 plus 0 to 7 .
