X1A000141000312

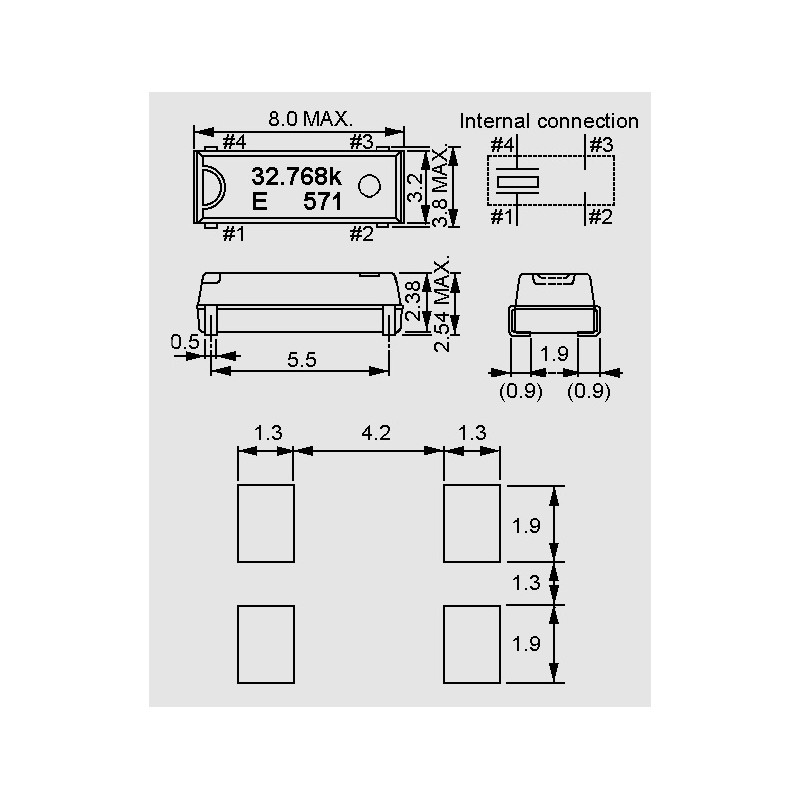

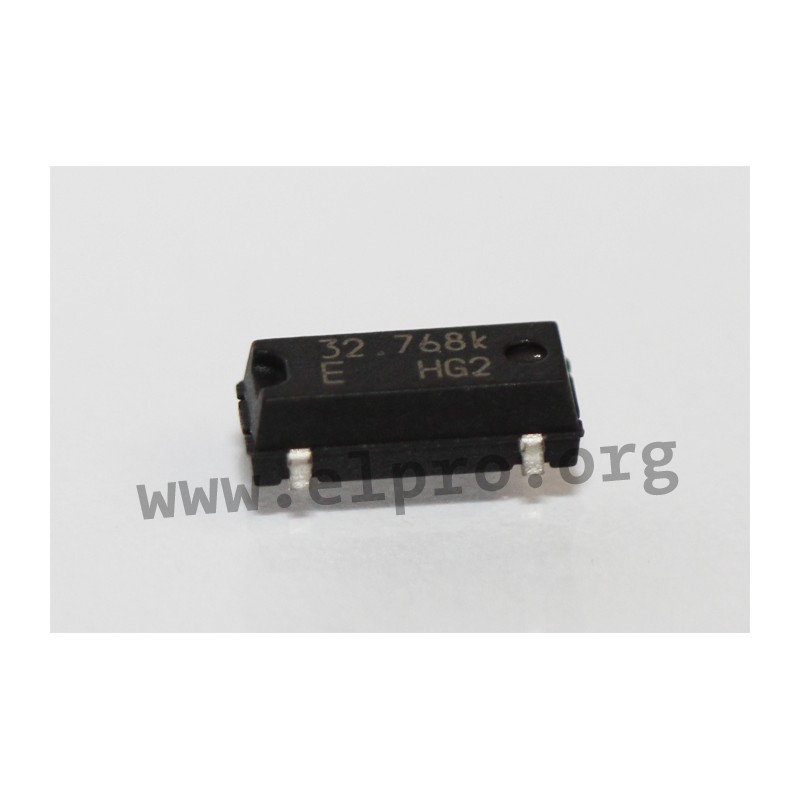

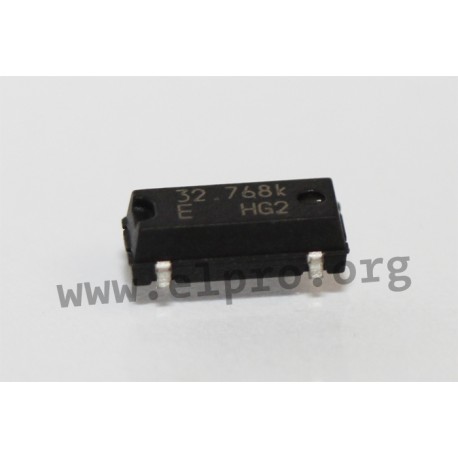

Epson clock quartz crystal series FC-135/MC-146/FC-12M/MC-306

  • surface mount clock quartz crystals with a frequency of 32,768kHz
  • maximal frequency aging: ±3ppm/year
  • maximal level of drive: 0,5µW
  • operating temperature: -40 to +85°C

X1A000141000312

130766 X1A000141000312 X1A000141000312 Epson clock quartz crystal series FC-135/MC-146/FC-12M/MC-306. surface mount clock quartz crystals with a frequency of 32,768kHz maximal frequency aging: ±3ppm/year maximal level of drive: 0,5µW operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name X1A000141000312
Data Sheet

Unit price

0,55 €

Stock: 289
Further delivery:
CW 12/2025

Minimum order quantity 1 to 9 units or multiples of 10 plus 0 to 9 .
