S 10 K 300

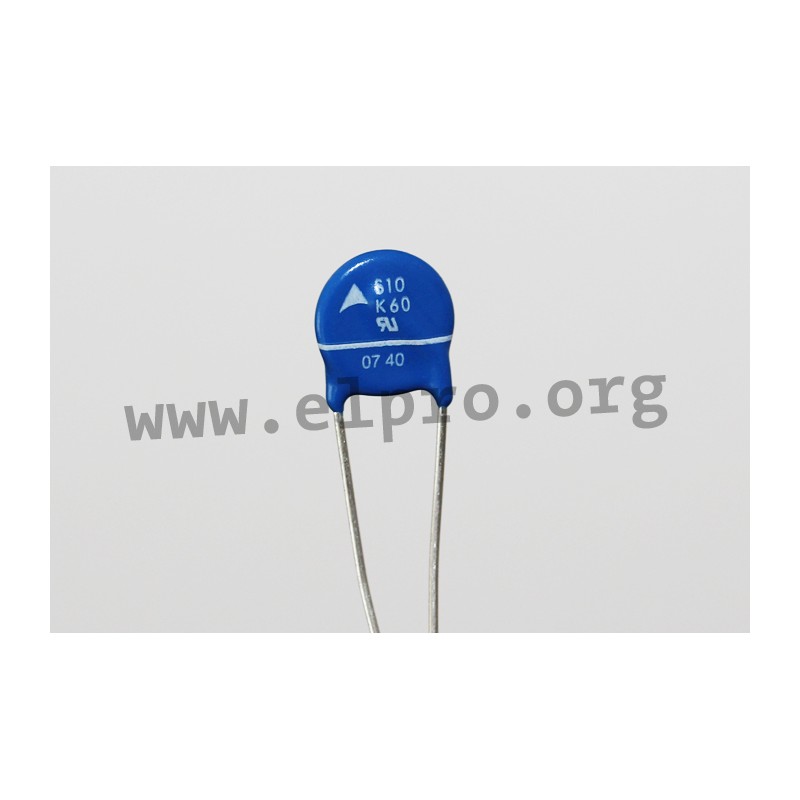

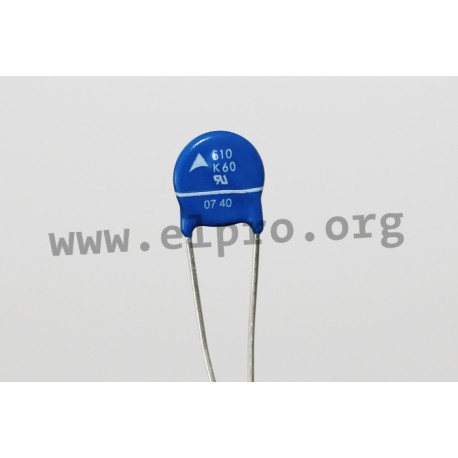

Epcos metal oxide varistor series SIOV

  • wired and round varistor elements
  • with an epoxy resin coating (UL94V-0)
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
S 10 K

S 10 K 300

5661 S 10 K 300 B72210S0301K101 B72210S0301K101 Epcos metal oxide varistor series SIOV. wired and round varistor elements with an epoxy resin coating (UL94V-0) operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Specifications

manufacturer
Manufacturer's name B72210S0301K101
E [mm] 7,5mm
Current [A] 2500
A [mm] 2,3
(Max.) RMS voltage [V] 300
Operating voltage [V] 385
Varistor voltage at 1mA [V] 470
Supply voltage [V] 775
E [mm] 7,5
Tolerance of varistor voltage [%] ±10
Capacity [pF] 180
Material strength [mm] 5,1
B [mm] 12
L1 [mm] 30
H [mm] 14,5
D [mm] 0,8
Data Sheet

Unit price

0,077 €

Stock: 2032
Next incoming goods:
CW 51/2024
1000 units

Further delivery:
CW 16/2025

Minimum order quantity 1 to 7 units or multiples of 25 plus 0 to 7 .
