S 10 K 250

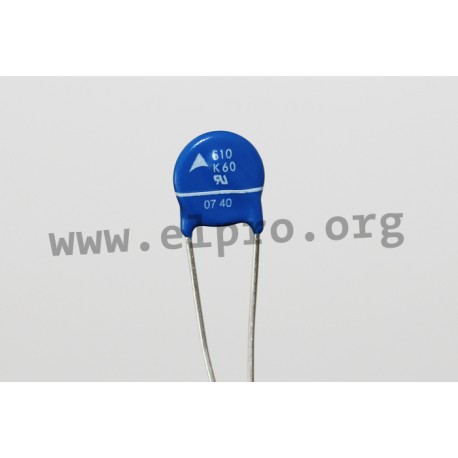

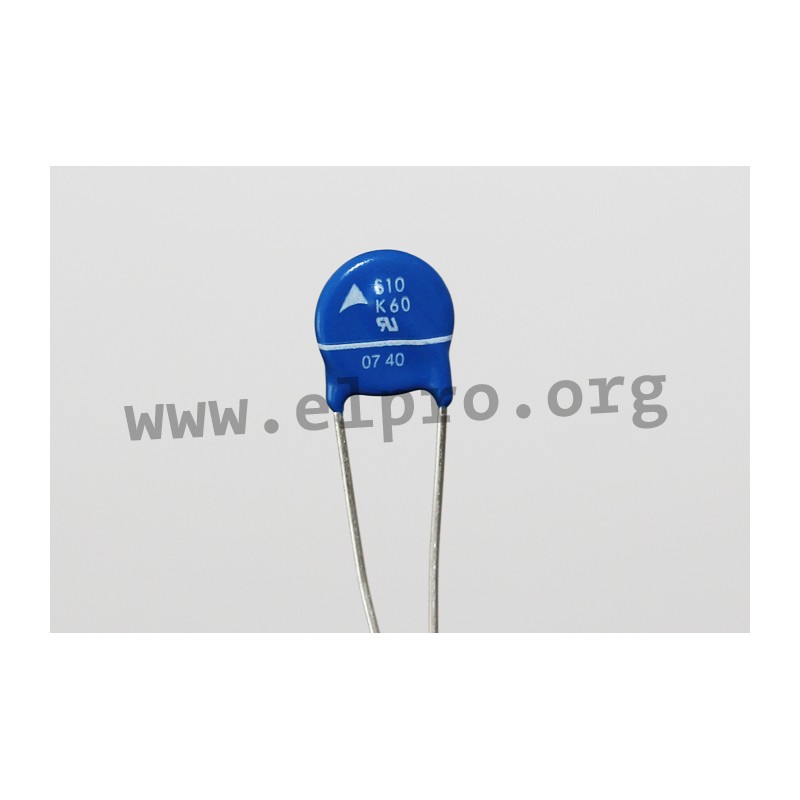

Epcos metal oxide varistor series SIOV

  • wired and round varistor elements
  • with an epoxy resin coating (UL94V-0)
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
S 10 K

S 10 K 250

5659 S 10 K 250 B72210S0251K101 B72210S0251K101 Epcos metal oxide varistor series SIOV. wired and round varistor elements with an epoxy resin coating (UL94V-0) operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Specifications

manufacturer
Manufacturer's name B72210S0251K101
E [mm] 7,5mm
Current [A] 2500
A [mm] 2
(Max.) RMS voltage [V] 250
Operating voltage [V] 320
Varistor voltage at 1mA [V] 390
Supply voltage [V] 650
E [mm] 7,5
Tolerance of varistor voltage [%] ±10
Capacity [pF] 215
Material strength [mm] 4,8
B [mm] 12
L1 [mm] 30
H [mm] 14,5
D [mm] 0,8
Data Sheet

Unit price

0,092 €

Stock: 2725
Next incoming goods:
CW 51/2024
500 units

Further delivery:
CW 08/2025

Minimum order quantity 25 units or
multiples of 25.
