S 07 K 25

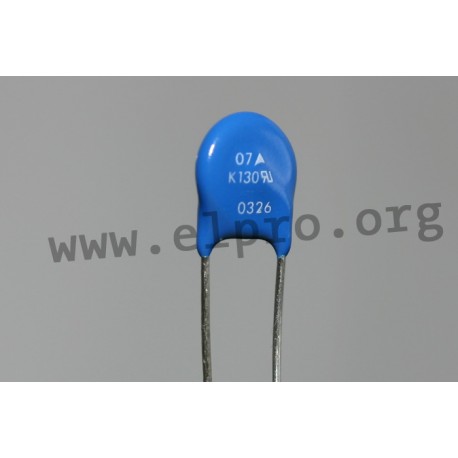

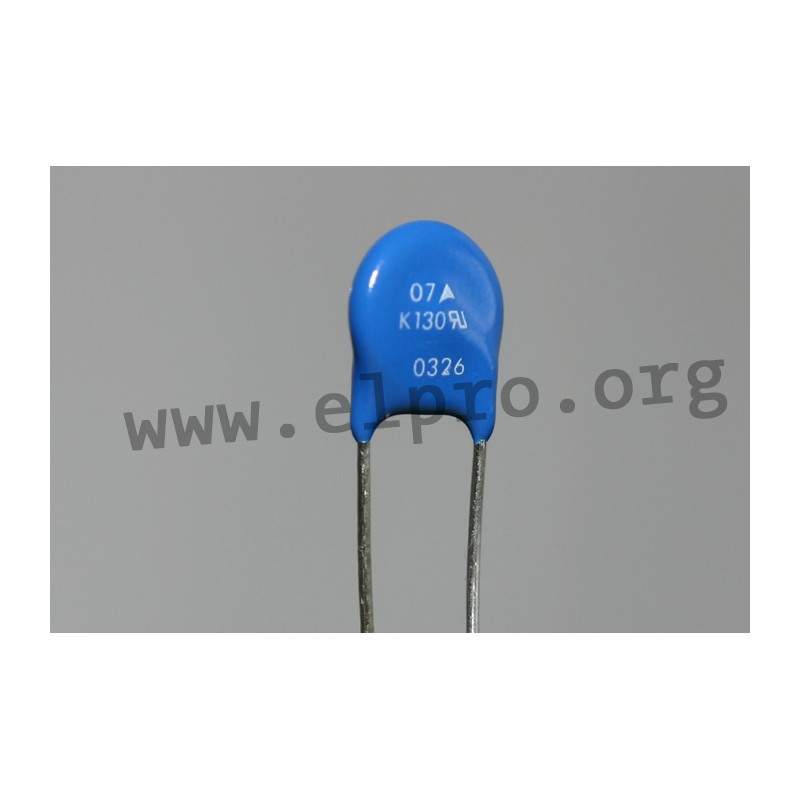

Epcos metal oxide varistor series SIOV

  • wired and round varistor elements
  • with an epoxy resin coating (UL94V-0)
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
S 07 K

S 07 K 25

5654 S 07 K 25 B72207S0250K101 B72207S0250K101 Epcos metal oxide varistor series SIOV. wired and round varistor elements with an epoxy resin coating (UL94V-0) operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Specifications

manufacturer
Manufacturer's name B72207S0250K101
E [mm] 5mm
Current [A] 250
A [mm] 1,3
(Max.) RMS voltage [V] 25
Operating voltage [V] 31
Varistor voltage at 1mA [V] 39
Supply voltage [V] 77
E [mm] 5
Tolerance of varistor voltage [%] ±10
Capacity [pF] 1400
Material strength [mm] 3,7
B [mm] 9
L1 [mm] 30
H [mm] 11
D [mm] 0,6
Data Sheet

Unit price

0,075 €

Stock: 1901
Next incoming goods:
CW 07/2025
1000 units

Further delivery:
CW 20/2025

Minimum order quantity 1 unit or multiples of 25 plus 0 to 1 .
