> Passive elements>NTCs/PTCs/varistors>Varistors>Epcos metal oxide varistors, pitch 5/7,5mm, SIOV series>S 07 K 130

Manufacturers

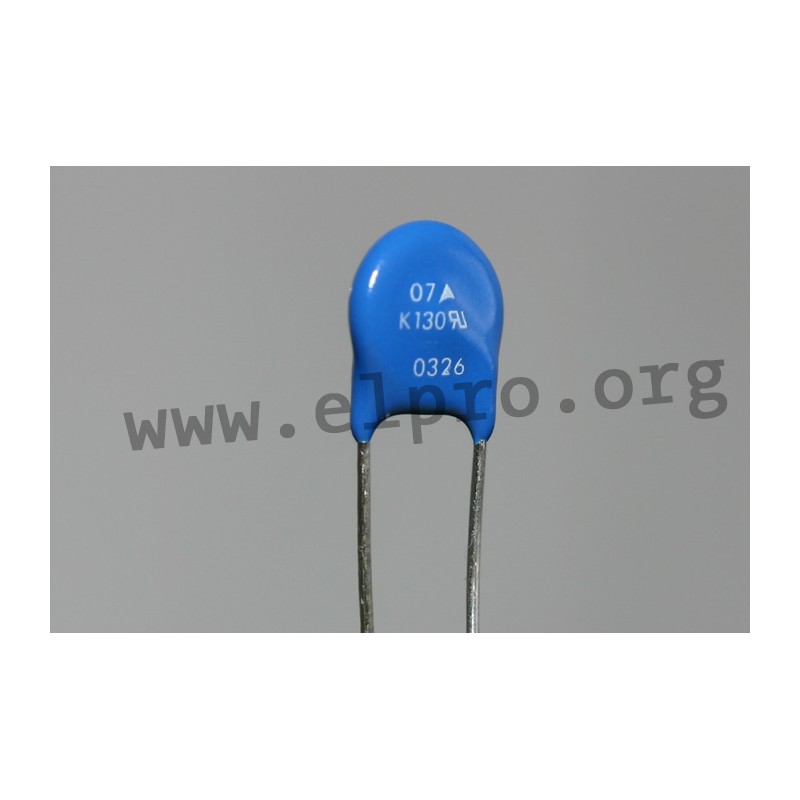

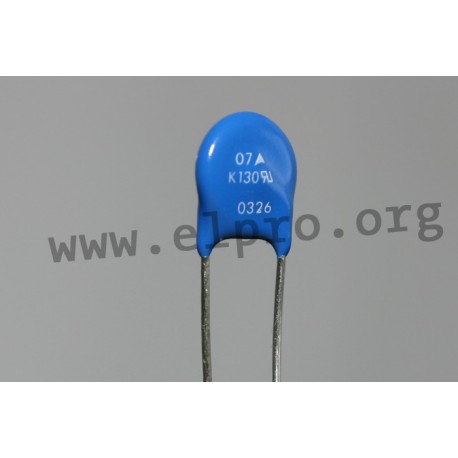

S 07 K 130

Epcos metal oxide varistor series SIOV

  • wired and round varistor elements
  • with an epoxy resin coating (UL94V-0)
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
S 07 K 130

S 07 K 130

5653 S 07 K 130 B72207S0131K101 B72207S0131K101 Epcos metal oxide varistor series SIOV. wired and round varistor elements with an epoxy resin coating (UL94V-0) operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Specifications

manufacturer
Manufacturer's name B72207S0131K101
E [mm] 5mm
Current [A] 1200
A [mm] 1,6
(Max.) RMS voltage [V] 130
Operating voltage [V] 170
Varistor voltage at 1mA [V] 205
Supply voltage [V] 340
Tolerance of varistor voltage [%] ±10
E [mm] 5
Capacity [pF] 105
Material strength [mm] 3,6
B [mm] 9
L1 [mm] 30
H [mm] 11
D [mm] 0,6
Data Sheet

Unit price

0,12 €

Stock: 316
Next incoming goods:
CW 01/2025
1000 units

Further delivery:
CW 09/2025

Minimum order quantity 1 to 16 units or multiples of 25 plus 0 to 16 .
