S 05 K 60

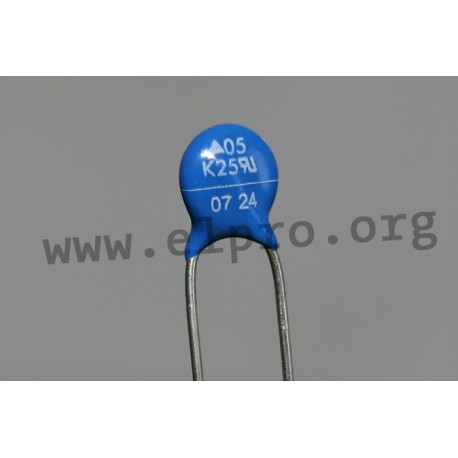

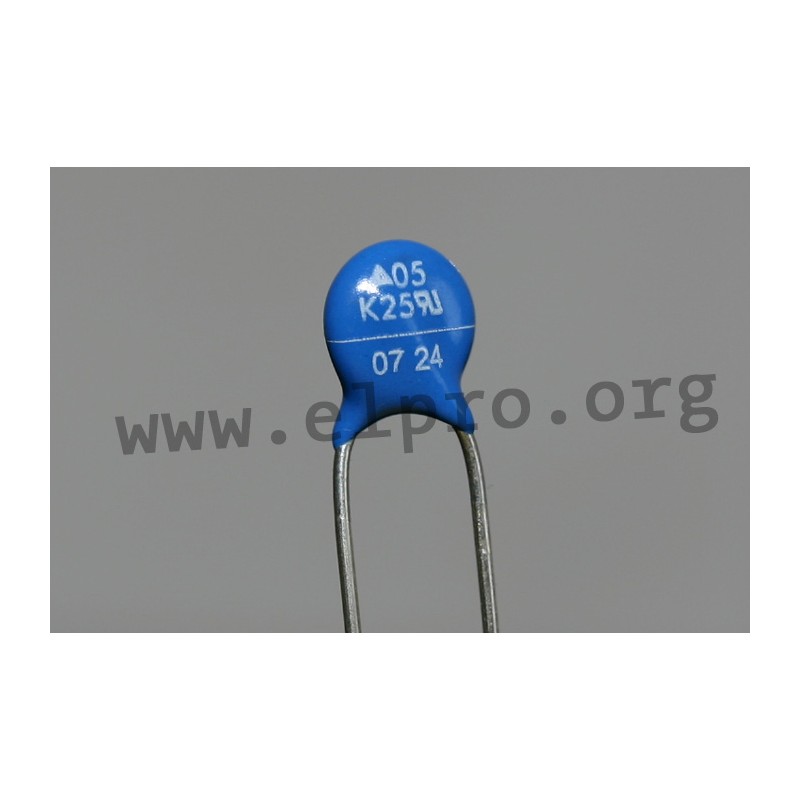

Epcos metal oxide varistor series SIOV

  • wired and round varistor elements
  • with an epoxy resin coating (UL94V-0)
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
S 05 K

S 05 K 60

5652 S 05 K 60 B72205S0600K101 B72205S0600K101 Epcos metal oxide varistor series SIOV. wired and round varistor elements with an epoxy resin coating (UL94V-0) operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Specifications

manufacturer
Manufacturer's name B72205S0600K101
E [mm] 5mm
Current [A] 400
A [mm] 1,2
(Max.) RMS voltage [V] 60
Operating voltage [V] 85
Varistor voltage at 1mA [V] 100
Supply voltage [V] 165
E [mm] 5
Tolerance of varistor voltage [%] ±10
Capacity [pF] 250
Material strength [mm] 3,3
B [mm] 7
L1 [mm] 30
H [mm] 8,5
D [mm] 0,6
Data Sheet

Unit price

0,073 €

Stock: 2350
Next incoming goods:
CW 51/2024
1000 units

Further delivery:
CW 07/2025

Minimum order quantity 25 units or
multiples of 25.
