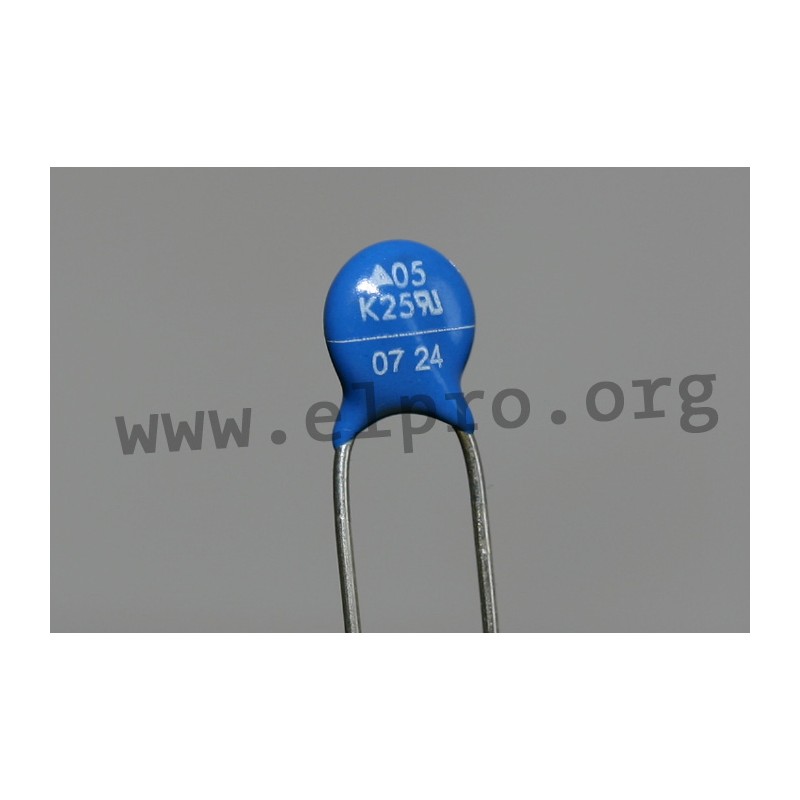

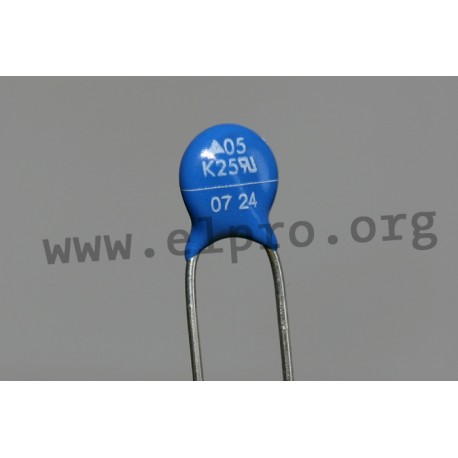

S 05 K 250

Epcos metal oxide varistor series SIOV

  • wired and round varistor elements
  • with an epoxy resin coating (UL94V-0)
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
S 05 K

S 05 K 250

5650 S 05 K 250 B72205S0251K101 B72205S0251K101 Epcos metal oxide varistor series SIOV. wired and round varistor elements with an epoxy resin coating (UL94V-0) operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Specifications

manufacturer
Manufacturer's name B72205S0251K101
E [mm] 5mm
Current [A] 400
A [mm] 1,8
(Max.) RMS voltage [V] 250
Operating voltage [V] 320
Varistor voltage at 1mA [V] 390
Supply voltage [V] 650
E [mm] 5
Tolerance of varistor voltage [%] ±10
Capacity [pF] 55
Material strength [mm] 4,2
B [mm] 7
L1 [mm] 30
H [mm] 8,5
D [mm] 0,6
Data Sheet

Unit price

0,056 €

Stock: 2809
Further delivery:
CW 16/2025

Minimum order quantity 1 to 9 units or multiples of 25 plus 0 to 9 .
