> Passive elements>NTCs/PTCs/varistors>Varistors>Epcos metal oxide varistors, pitch 5/7,5mm, SIOV series>S 05 K 300

Manufacturers

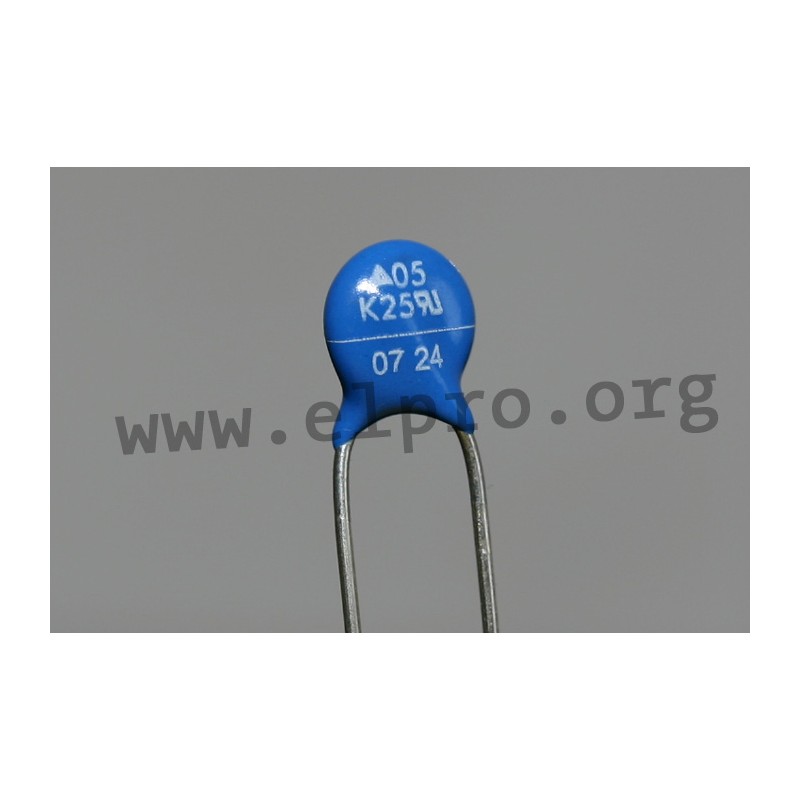

S 05 K 300

Epcos metal oxide varistor series SIOV

  • wired and round varistor elements
  • with an epoxy resin coating (UL94V-0)
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
S 05 K

S 05 K 300

32478 S 05 K 300 B72205S0301K101 B72205S0301K101 Epcos metal oxide varistor series SIOV. wired and round varistor elements with an epoxy resin coating (UL94V-0) operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Specifications

manufacturer
Manufacturer's name B72205S0301K101
E [mm] 5
Current [A] 400
A [mm] 2,1
(Max.) RMS voltage [V] 300
Operating voltage [V] 385
Varistor voltage at 1mA [V] 470
Supply voltage [V] 775
E [mm] 5
Tolerance of varistor voltage [%] ±10
Capacity [pF] 45
Material strength [mm] 4,5
B [mm] 7
L1 [mm] 30
H [mm] 8,5
D [mm] 0,6
Data Sheet

Unit price

0,056 €

Stock: 1725
Next incoming goods:
CW 05/2025
800 units

Further delivery:
CW 10/2025

Minimum order quantity 25 units or
multiples of 25.
