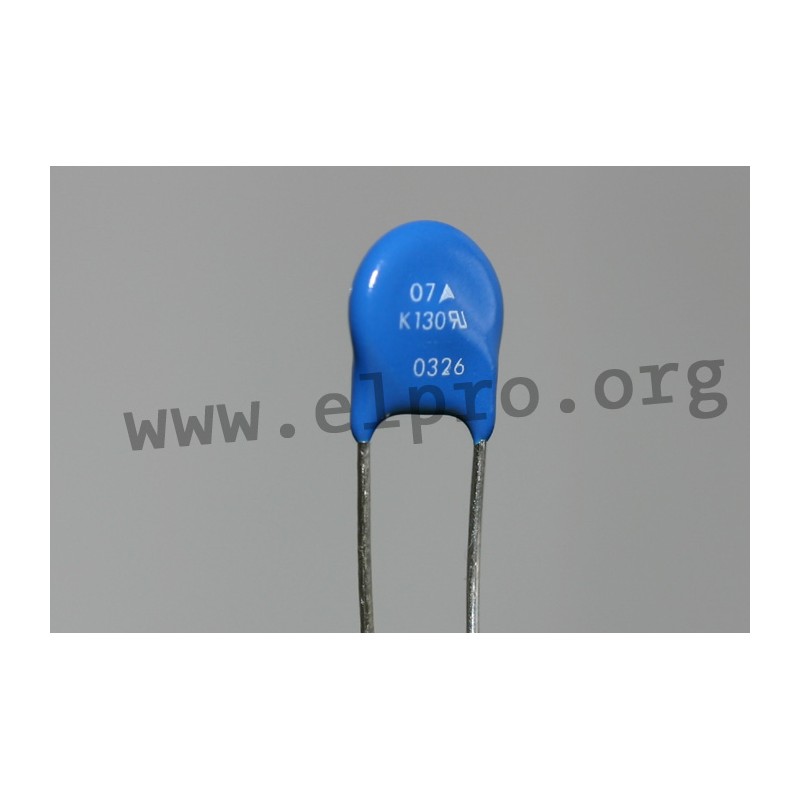

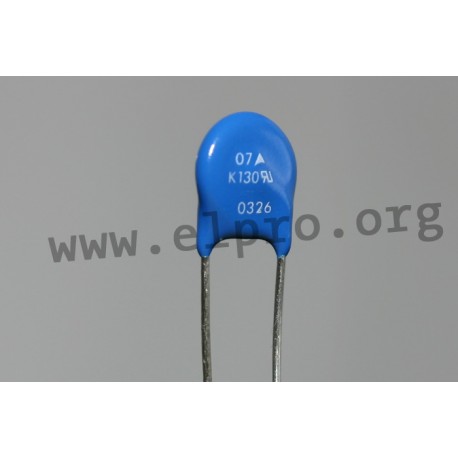

S 07 K 30

Epcos metal oxide varistor series SIOV

  • wired and round varistor elements
  • with an epoxy resin coating (UL94V-0)
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
S 07 K

S 07 K 30

32476 S 07 K 30 B72207S0300K101 B72207S0300K101 Epcos metal oxide varistor series SIOV. wired and round varistor elements with an epoxy resin coating (UL94V-0) operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Specifications

manufacturer
Manufacturer's name B72207S0300K101
E [mm] 5
Current [A] 250
A [mm] 1,5
(Max.) RMS voltage [V] 30
Operating voltage [V] 38
Varistor voltage at 1mA [V] 47
Supply voltage [V] 93
E [mm] 5
Tolerance of varistor voltage [%] ±10
Capacity [pF] 1200
Material strength [mm] 3,7
B [mm] 9
L1 [mm] 30
H [mm] 11
D [mm] 0,6
Data Sheet

Unit price

0,059 €

Stock: 4623
Further delivery:
CW 16/2025

Minimum order quantity 1 to 23 units or multiples of 25 plus 0 to 23 .
