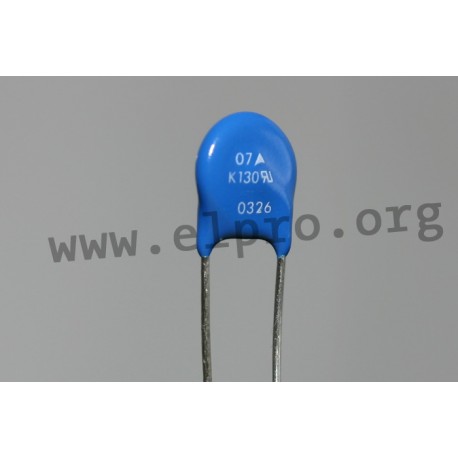

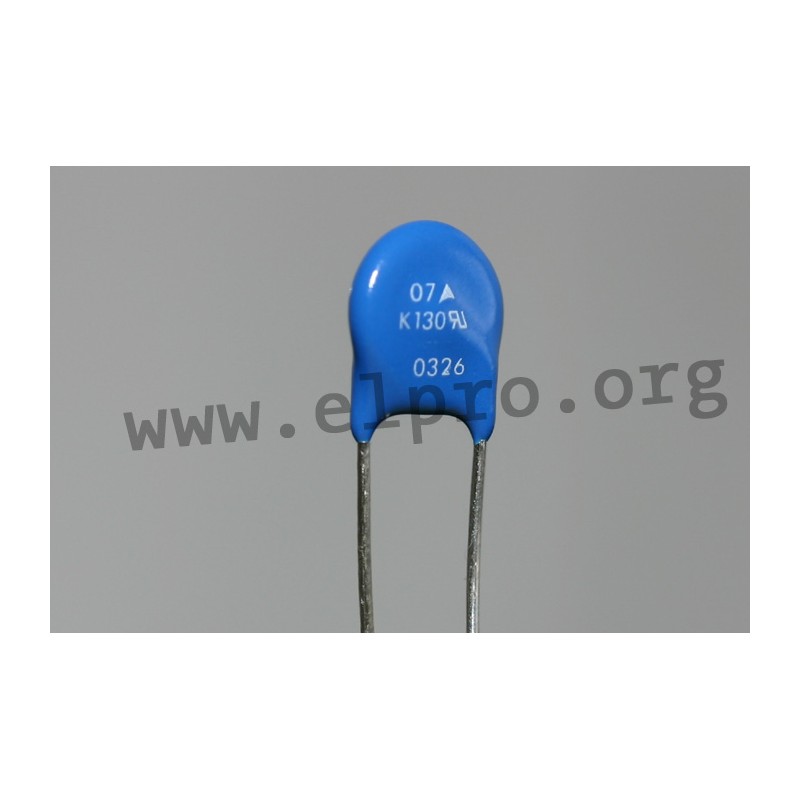

S 07 K 230

Epcos metal oxide varistor series SIOV

  • wired and round varistor elements
  • with an epoxy resin coating (UL94V-0)
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
S 07 K

S 07 K 230

32475 S 07 K 230 B72207S0231K101 B72207S0231K101 Epcos metal oxide varistor series SIOV. wired and round varistor elements with an epoxy resin coating (UL94V-0) operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Specifications

manufacturer
Manufacturer's name B72207S0231K101
E [mm] 5
Current [A] 1200
A [mm] 1,8
(Max.) RMS voltage [V] 230
Operating voltage [V] 300
Varistor voltage at 1mA [V] 360
Supply voltage [V] 595
E [mm] 5
Tolerance of varistor voltage [%] ±10
Capacity [pF] 115
Material strength [mm] 4
B [mm] 9
L1 [mm] 30
H [mm] 11
D [mm] 0,6
Data Sheet

Unit price

0,073 €

Stock: 1785
Next incoming goods:
CW 49/2024
1000 units

Further delivery:
CW 50/2024

Minimum order quantity 1 to 10 units or multiples of 25 plus 0 to 10 .
