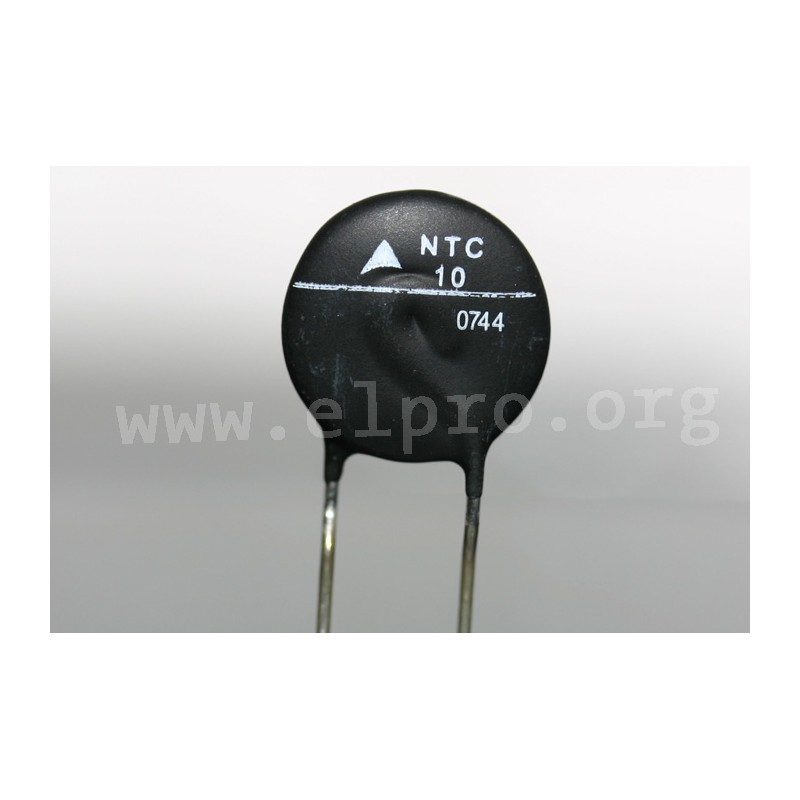

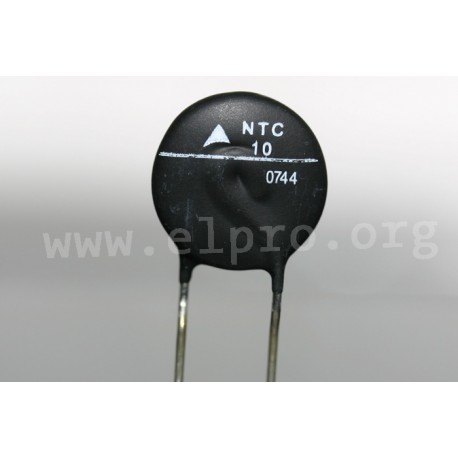

B 57237-S100-M

NTC inrush current limiters

* coated thermistor disc
* tinned copper wire leads
* UL approval
* to protect against damaging levels of inrush current at start up in switching power supplies, monitors, PCs as well as limiting the acceleration rate in motors, e.g. vacuum cleaners
* climatic category: 55/170/56
* resistance Tolerance, DRN/RN: 20%
* rated temperature: 25°C
* temperature range: -55...+170°C
B 57237-S100-M

B 57237-S100-M

6271 B 57237-S100-M B57237S0100M000 B57237S0100M000 NTC inrush current limiters. * coated thermistor disc* tinned copper wire leads* UL approval* to protect against damaging levels of inrush current at start up in switching power supplies, monitors, PCs as well as limiting the acceleration rate in motors, e.g. vacuum cleaners* climatic category: 55/170/56* resistance Tolerance, DRN/RN: 20%* rated temperature: 25°C* temperature range: -55...+170°C

Specifications

manufacturer
Manufacturer's name B57237S0100M000
Resistance at Tamb = 25°C [Ω] 10
Nominal capacity [W] 3,1
Output current [A] 3,7
Data Sheet

Unit price

0,361 €

Stock: 2090
Next incoming goods:
CW 07/2025
500 units

Further delivery:
CW 12/2025

Minimum order quantity 10 units or
multiples of 10.
