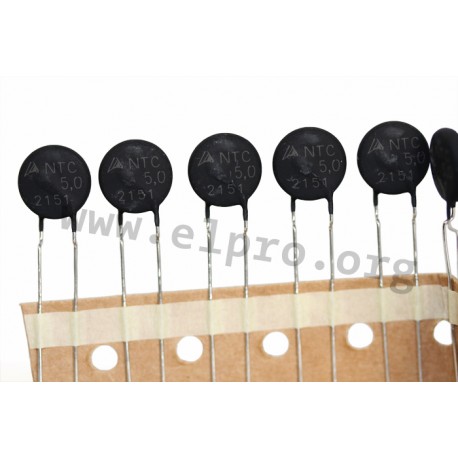

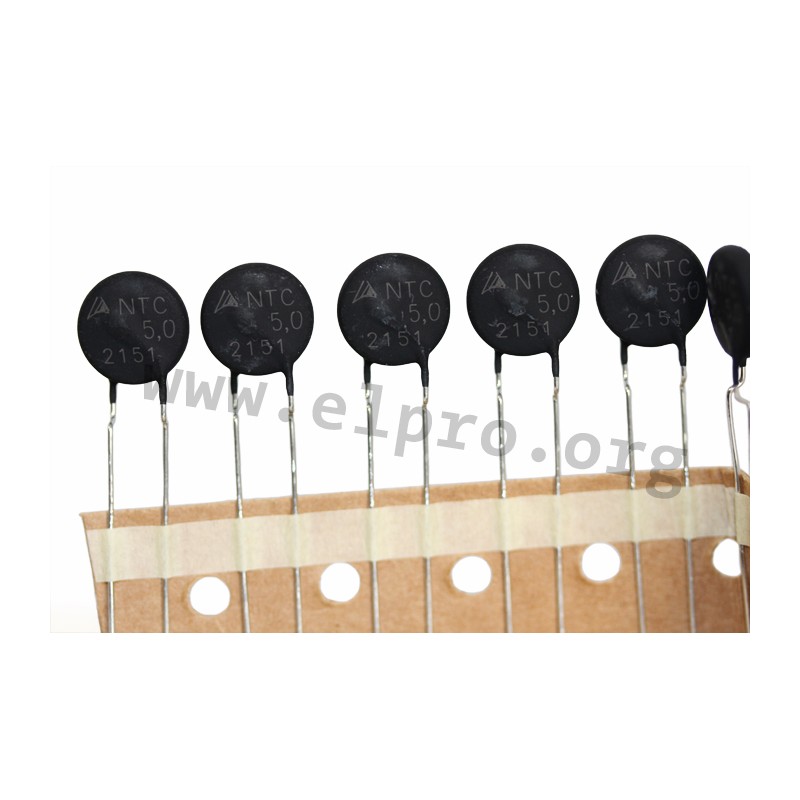

B 57236-S509-M

NTC inrush current limiters

* coated thermistor disc
* tinned copper wire leads
* UL approval
* to protect against damaging levels of inrush current at start up in switching power supplies, monitors, PCs as well as limiting the acceleration rate in motors, e.g. vacuum cleaners
* climatic category: 55/170/56
* resistance Tolerance, DRN/RN: 20%
* rated temperature: 25°C
* temperature range: -55...+170°C
B57236S 509M, Epcos NTC thermistors, pitch 5/7,5mm, 20, S236 and S237 series

B 57236-S509-M

6270 B 57236-S509-M B57236S0509M000 B57236S0509M000 NTC inrush current limiters. * coated thermistor disc* tinned copper wire leads* UL approval* to protect against damaging levels of inrush current at start up in switching power supplies, monitors, PCs as well as limiting the acceleration rate in motors, e.g. vacuum cleaners* climatic category: 55/170/56* resistance Tolerance, DRN/RN: 20%* rated temperature: 25°C* temperature range: -55...+170°C

Specifications

manufacturer
Manufacturer's name B57236S0509M000
Resistance at Tamb = 25°C [Ω] 5
Nominal capacity [W] 2,1
Output current [A] 4,5
Data Sheet

Unit price

0,502 €

Stock: 1099
Further delivery:
CW 12/2025

Minimum order quantity 1 to 9 units or multiples of 10 plus 0 to 9 .
