> Passive elements>NTCs/PTCs/varistors>NTC's>Epcos NTC thermistors, pitch 5/7,5mm, 20%, S236 and S237 series>B 57236-S160-M

Manufacturers

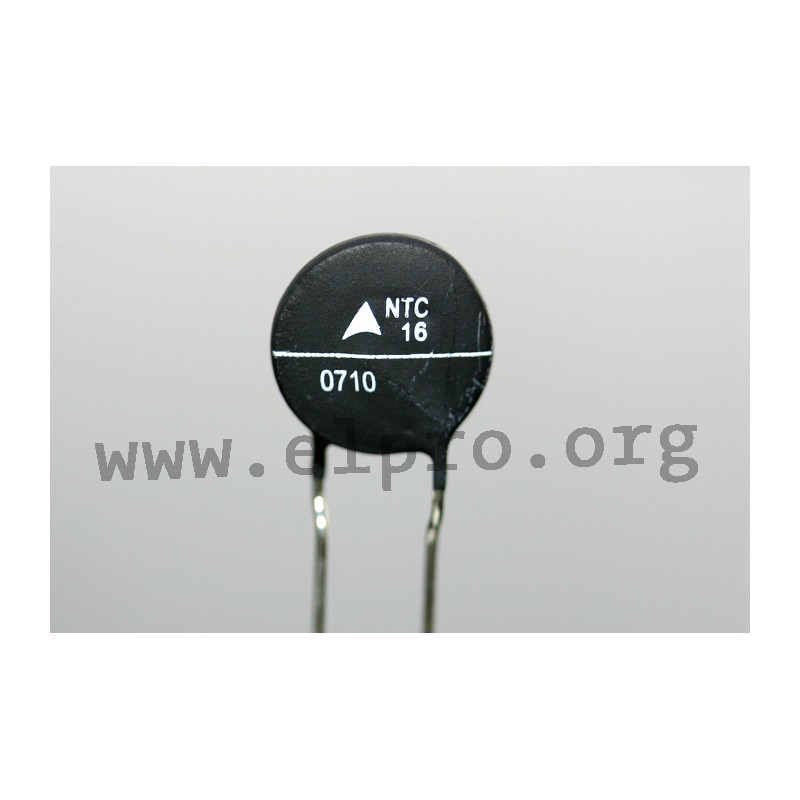

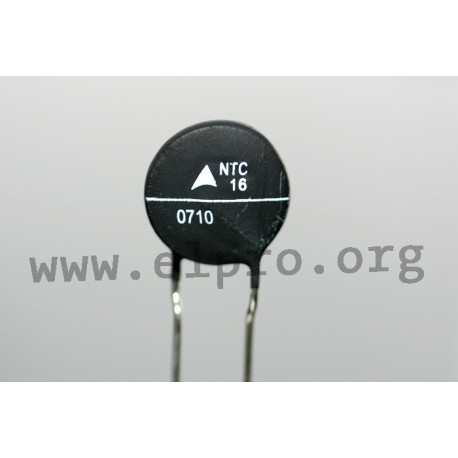

B 57236-S160-M

NTC inrush current limiters

* coated thermistor disc
* tinned copper wire leads
* UL approval
* to protect against damaging levels of inrush current at start up in switching power supplies, monitors, PCs as well as limiting the acceleration rate in motors, e.g. vacuum cleaners
* climatic category: 55/170/56
* resistance Tolerance, DRN/RN: 20%
* rated temperature: 25°C
* temperature range: -55...+170°C
B 57236-S160-M

B 57236-S160-M

6268 B 57236-S160-M B57236S0160M000 B57236S0160M000 NTC inrush current limiters. * coated thermistor disc* tinned copper wire leads* UL approval* to protect against damaging levels of inrush current at start up in switching power supplies, monitors, PCs as well as limiting the acceleration rate in motors, e.g. vacuum cleaners* climatic category: 55/170/56* resistance Tolerance, DRN/RN: 20%* rated temperature: 25°C* temperature range: -55...+170°C

Specifications

manufacturer
Manufacturer's name B57236S0160M000
Resistance at Tamb = 25°C [Ω] 16
Nominal capacity [W] 2,1
Output current [A] 2,9
Data Sheet

Unit price

0,445 €

Stock: 2027
Next incoming goods:
CW 48/2024
1000 units

Further delivery:
CW 08/2025

Minimum order quantity 1 to 7 units or multiples of 10 plus 0 to 7 .
