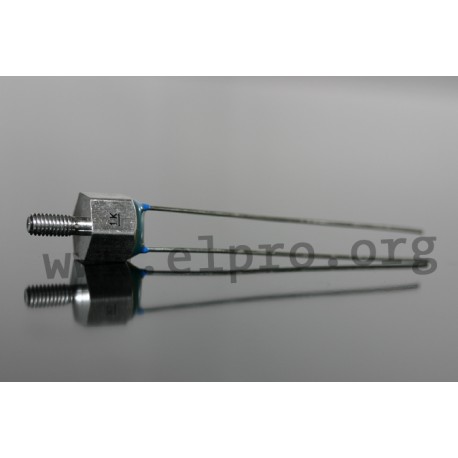

K 45 4,7k

NTC probe assemblies for temperature compensation and measurement

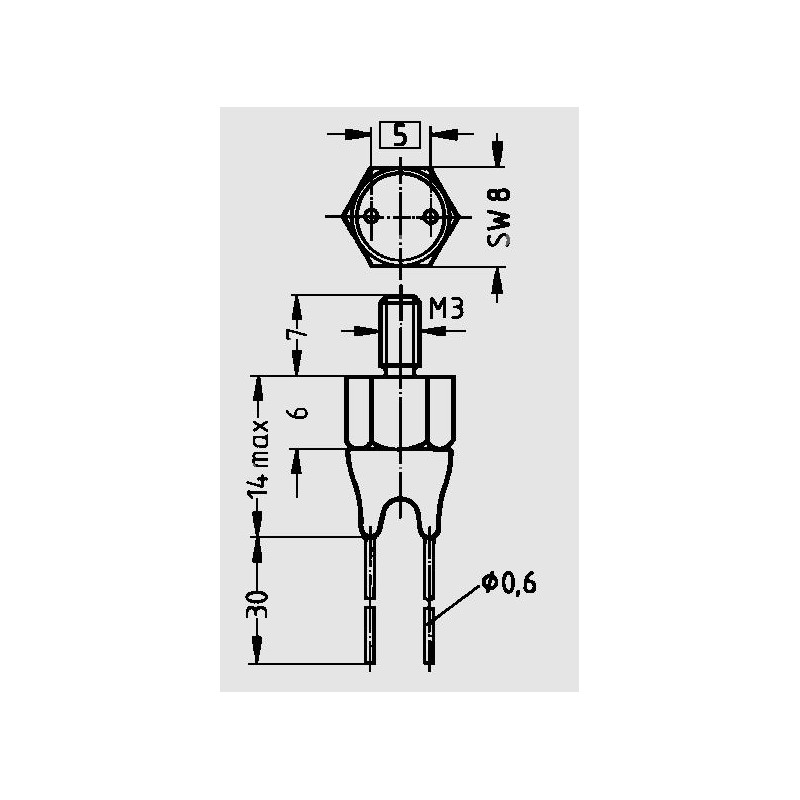

* electrically insulated aluminium screw housing M3
* good thermal coupling through screw connection
* cost-effective
* tinned copper leads
* temperature compensation
* temperature measurement
* temperature control
* climatic category: 55/125/56
* rated power (25°C): 450mW
* resistance tolerance, DRN/RN: 10%
* rated temperature: 25°C
* temperature range: -55...+125°C
* insulation resistance (100V DC): >100mΩ
* test voltage (1Min.): 2500V


K 45 4,7k

K 45 4,7k

33874 K 45 4,7k B57045K0472K000 B57045K0472K000 NTC probe assemblies for temperature compensation and measurement. * electrically insulated aluminium screw housing M3* good thermal coupling through screw connection* cost-effective* tinned copper leads* temperature compensation* temperature measurement* temperature control* climatic category: 55/125/56* rated power (25°C): 450mW* resistance tolerance, DRN/RN: 10%* rated temperature: 25°C* temperature range: -55...+125°C* insulation resistance (100V DC): >100mΩ* test voltage (1Min.): 2500V

Specifications

manufacturer
Manufacturer's name B57045K0472K000
Resistance at Tamb = 25°C [Ω] 4700
Data Sheet

Unit price

1,42 €

Stock: 428
Further delivery:
CW 13/2025

Minimum order quantity 1 to 8 units or multiples of 10 plus 0 to 8 .
