4809

end splices series 480 by Vogt

• for crimping
• insulated
• made of tin-plated copper, with polyamid insulation
• temperature range PA -55...+105°C
• colourless
• material/surface: Cu/Sn crimping conductor cross section (mm²)
• 6x0,75 / 4x1 / 3x1,5 / 2x2,5 / 1x4...6
• by Vogt

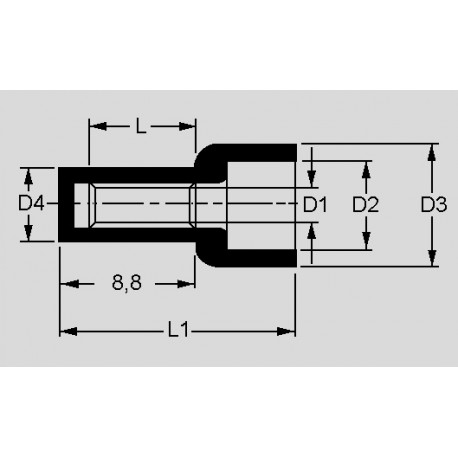

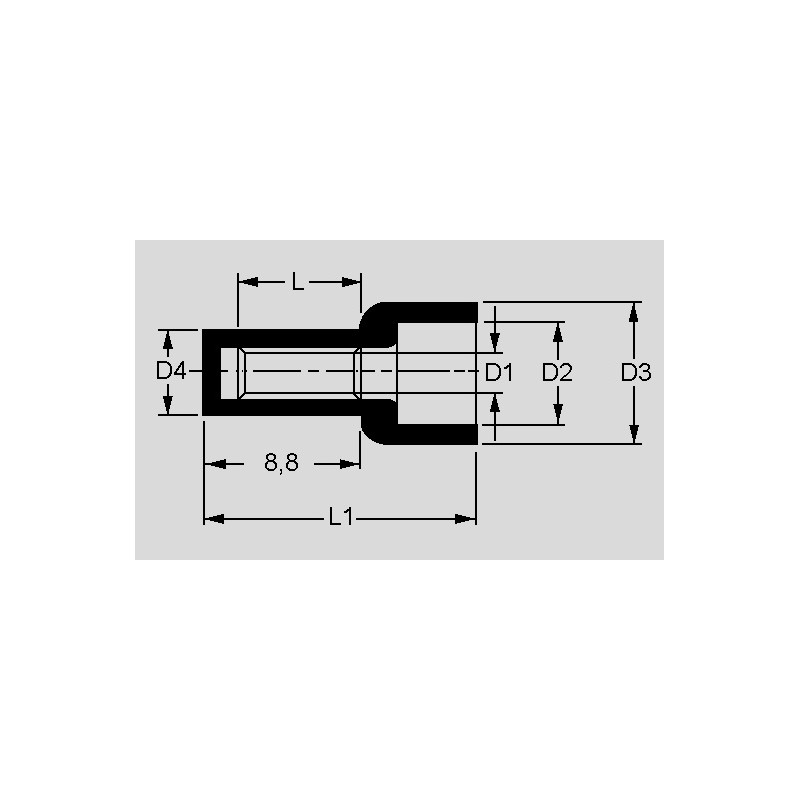

dimensions

4809

39397 4809 4809 end splices series 480 by Vogt. • for crimping• insulated• made of tin-plated copper, with polyamid insulation• temperature range PA -55...+105°C• colourless• material/surface: Cu/Sn crimping conductor cross section (mm²)• 6x0,75 / 4x1 / 3x1,5 / 2x2,5 / 1x4...6• by Vogt

Specifications

manufacturer
Manufacturer's name 4809
d4 [mm] 7,3
d3 [mm] 11
d2 [mm] 9,2
D1 [mm] 4
L1 [mm] 17,8
Output current [A] 25
Length [mm] 7,5

Unit price

0,20 €

Stock: 200
Further delivery:
CW 04/2025

Minimum order quantity 100 units or
multiples of 100.
