4805

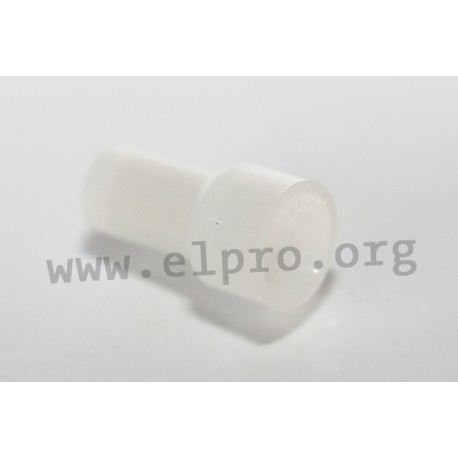

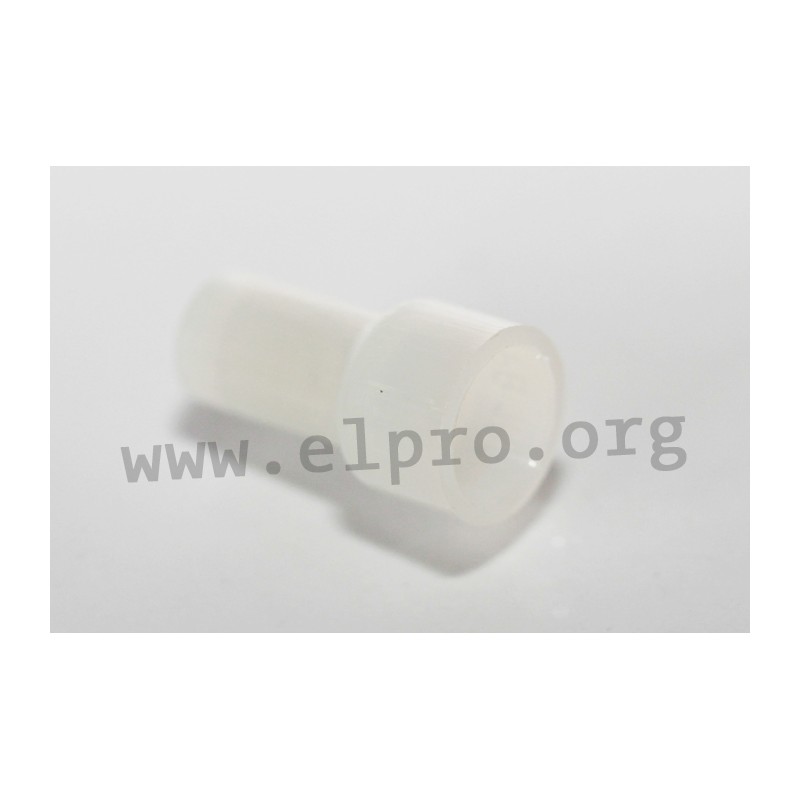

end splices series 480 by Vogt

• for crimping
• insulated
• made of tin-plated copper, with polyamid insulation
• temperature range PA -55...+105°C
• colourless
• material/surface: Cu/Sn crimping conductor cross section (mm²)
• 4x0,75 / 3x1 / 2x1,5 / 1x2,5
• by Vogt

4805

4805

39396 4805 4805 end splices series 480 by Vogt. • for crimping• insulated• made of tin-plated copper, with polyamid insulation• temperature range PA -55...+105°C• colourless• material/surface: Cu/Sn crimping conductor cross section (mm²)• 4x0,75 / 3x1 / 2x1,5 / 1x2,5• by Vogt

Specifications

manufacturer
Manufacturer's name 4805

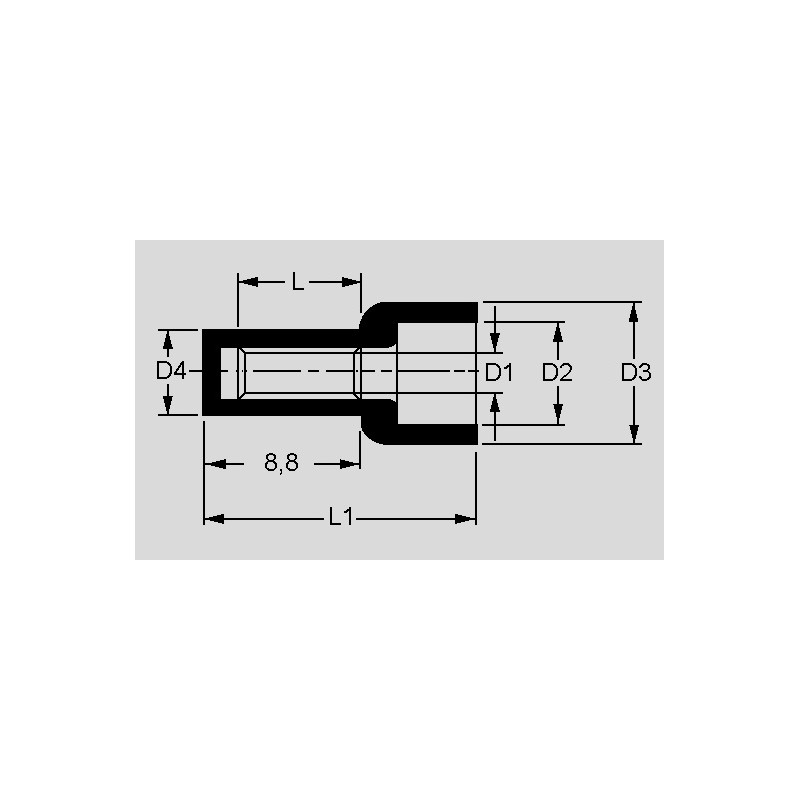

d4 [mm] 5,8
d3 [mm] 8,3
d2 [mm] 6,3
D1 [mm] 3,1
L1 [mm] 15,2
Output current [A] 15
Length [mm] 7

Unit price

0,106 €

Stock: 1800
Further delivery:
CW 04/2025

Minimum order quantity 100 units or
multiples of 100.
