4803

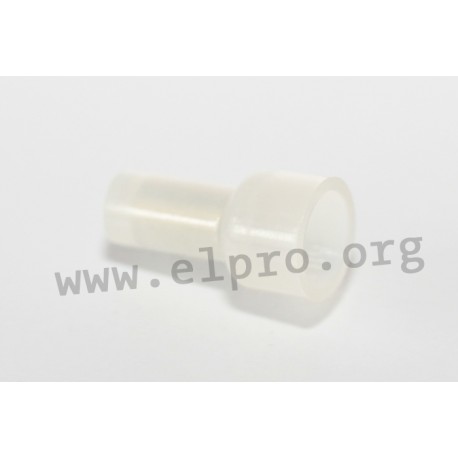

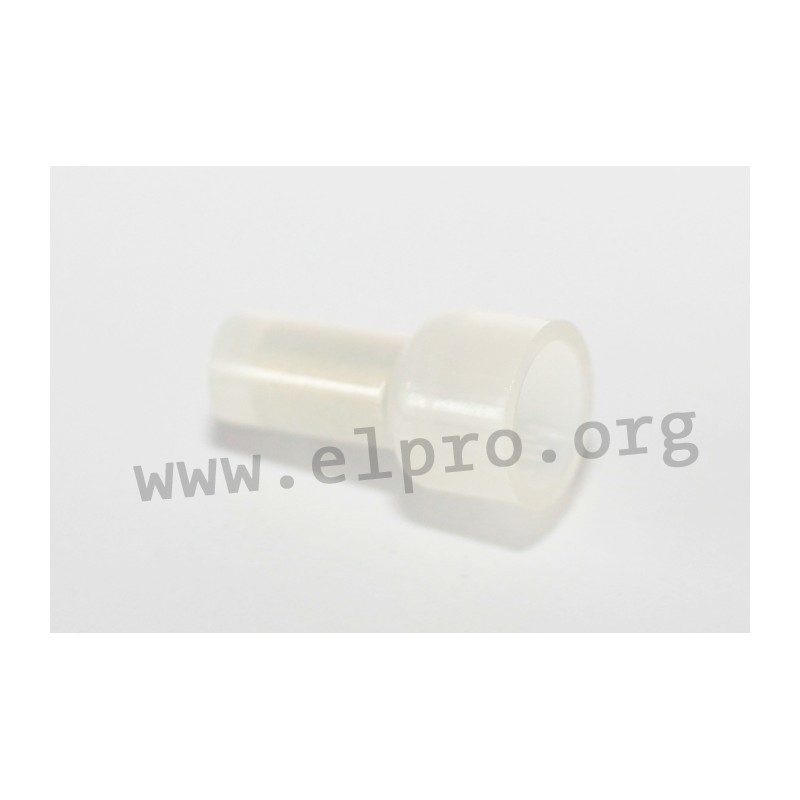

end splices series 480 by Vogt

• for crimping
• insulated
• made of tin-plated copper, with polyamid insulation
• temperature range PA -55...+105°C
• colourless
• material/surface: Cu/Sn crimping conductor cross section (mm²)
• 3x0,5 / 2x0,75 / 1x1,5...2,5
• by Vogt

4803

4803

39395 4803 4803 end splices series 480 by Vogt. • for crimping• insulated• made of tin-plated copper, with polyamid insulation• temperature range PA -55...+105°C• colourless• material/surface: Cu/Sn crimping conductor cross section (mm²)• 3x0,5 / 2x0,75 / 1x1,5...2,5• by Vogt

Specifications

manufacturer
Manufacturer's name 4803
d4 [mm] 5
d3 [mm] 7,85
d2 [mm] 6
D1 [mm] 2,3
L1 [mm] 15,2
Output current [A] 15
Length [mm] 7

Unit price

0,10 €

Stock: 400
Further delivery:
CW 03/2025

Minimum order quantity 100 units or
multiples of 100.
