SMD-22D12

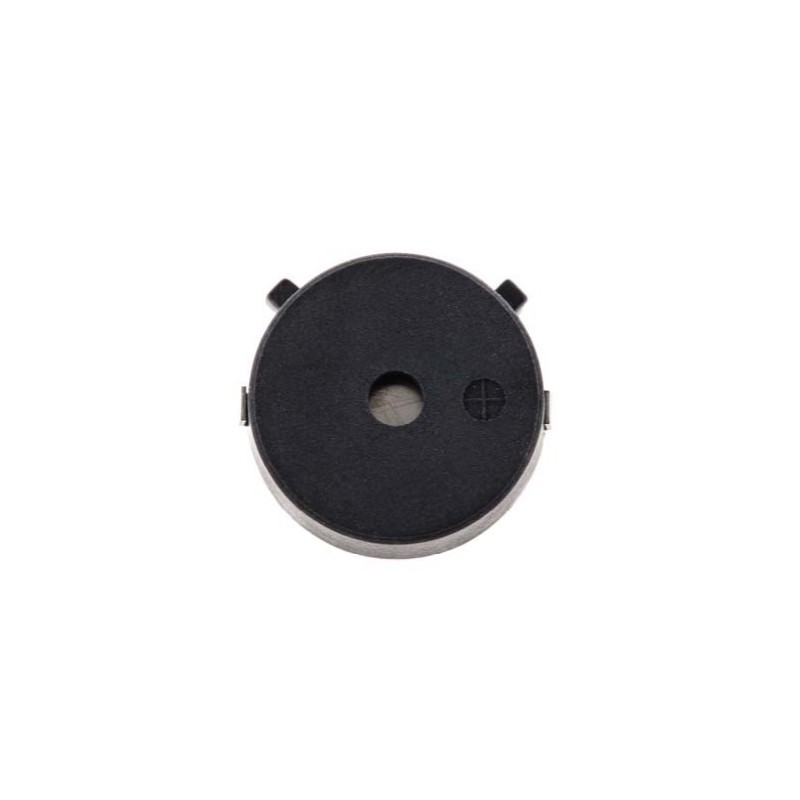

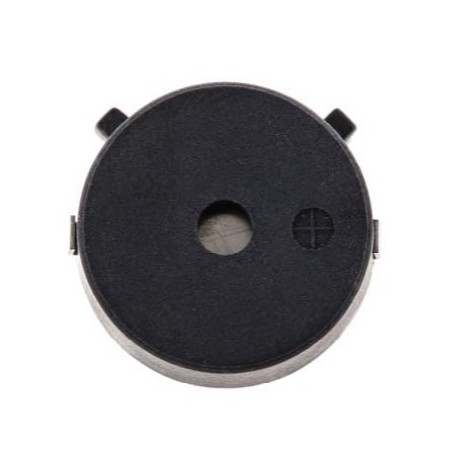

Ekulit piezo buzzer series SMD

  • small and efficient piezo buzzers
  • external drive
  • for direct PCB mounting (SMD)

SMD-22D12

139986 SMD-22D12 220061 220061 Ekulit piezo buzzer series SMD. small and efficient piezo buzzers external drive for direct PCB mounting (SMD)

Specifications

manufacturer
Manufacturer's name 220061
Nominal voltage [Vp-p] 12
Max. operating voltage [V] 25
Resonance frequency [kHz] 4
Min. sound pressure [dB] 70
Current consumption [mA] 5
Data Sheet

Unit price

1,15 €

Stock: 60
Further delivery:
CW 01/2025

Minimum order quantity 10 units or
multiples of 10.
