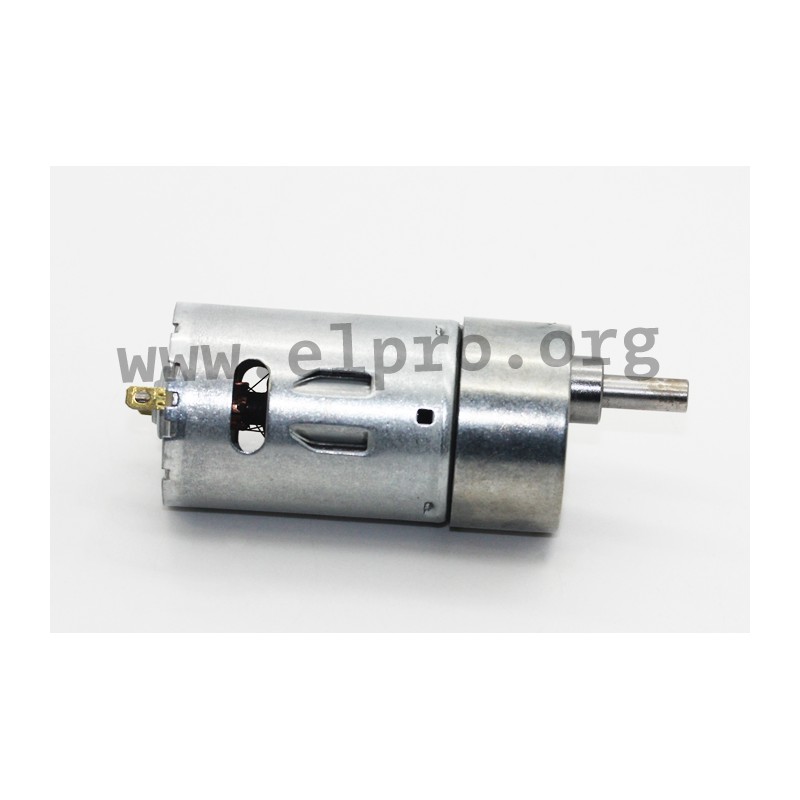

GM37-545-10-21D

DC-motors series GM by Ekulit

Very small and lightweight gear motors with high efficiency. For universal application for example in door locks and functional models. Their rotation is clockwise and counter clockwise (CW or CW&CCW). We are offering the following types by manufacturer Ekulit: GM10-M10VA-06205-250-10D, GM12-N10-10130-298-10D, M12-N20VA-08220-210-20Y, GM12-N20VA-08220-298-10D, GM12-N20VA-08220-298-20M3, GM12-N20VA-05450-298-26D, 12GA-26D-08220, GM13-050SH-1672-35-44.7M3, GM13-030-08300-3690-4.4D, GM13-050SH-11170-35-44.7M3, GM15BY-VSM1527-100-10D, GM15-N20VA-08220-100-10D, GM15BY-VSM1527-298-20D3, GM16F-N20VA-09160, GM16-030-08300-360-10D, GM20-180K-5000-100.10.5D, GM20-130-4500-195.10.5D, GM20-180K-10000-100.10.5D, GM25-310K-6000-100-5-10, GM25-370-3075-125-12D8, GM25-370-M14N-31-12D8,  GM25-370-16250-57-12D8, GM25-395-9.3-50.5SD, GM25-370-11670-500-12D8, GM25-BLDC2418-75-10.5D, GM37-5000-86-21D, GM37-520-6000-67-21D, GM37-520-18315-86-21D, GM37-545-10-21D,  GM48-500-5000-225-12.5D8, GM58GW-7800-100-15D13, GM58GW-3157-100-15D13 and GM1024-N20VA-05450-250-10D.

• operating temperature range: 0 to +30°C
• humidity: 30 to 90%
• all position in horizontal

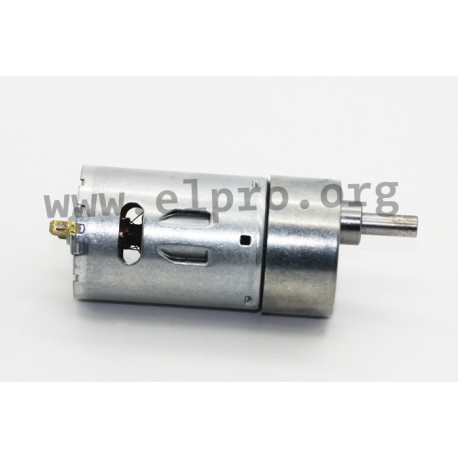

860533, Ekulit DC motors, with gear drive, 0,029 to 0,981Nm, GM series

GM37-545-10-21D

107602 GM37-545-10-21D 860533 860533 DC-motors series GM by Ekulit. Very small and lightweight gear motors with high efficiency. For universal application for example in door locks and functional models. Their rotation is clockwise and counter clockwise (CW or CW&CCW). We are offering the following types by manufacturer Ekulit: GM10-M10VA-06205-250-10D, GM12-N10-10130-298-10D, M12-N20VA-08220-210-20Y, GM12-N20VA-08220-298-10D, GM12-N20VA-08220-298-20M3, GM12-N20VA-05450-298-26D, 12GA-26D-08220, GM13-050SH-1672-35-44.7M3, GM13-030-08300-3690-4.4D, GM13-050SH-11170-35-44.7M3, GM15BY-VSM1527-100-10D, GM15-N20VA-08220-100-10D, GM15BY-VSM1527-298-20D3, GM16F-N20VA-09160, GM16-030-08300-360-10D, GM20-180K-5000-100.10.5D, GM20-130-4500-195.10.5D, GM20-180K-10000-100.10.5D, GM25-310K-6000-100-5-10, GM25-370-3075-125-12D8, GM25-370-M14N-31-12D8,  GM25-370-16250-57-12D8, GM25-395-9.3-50.5SD, GM25-370-11670-500-12D8, GM25-BLDC2418-75-10.5D, GM37-5000-86-21D, GM37-520-6000-67-21D, GM37-520-18315-86-21D, GM37-545-10-21D,  GM48-500-5000-225-12.5D8, GM58GW-7800-100-15D13, GM58GW-3157-100-15D13 and GM1024-N20VA-05450-250-10D. • operating temperature range: 0 to +30°C• humidity: 30 to 90%• all position in horizontal

Specifications

manufacturer
Manufacturer's name 860533
Nominal voltage [V DC] 24
Rated current [mA] 850
Dia of shaft [mm] Ø6x12
Screw size M3
Shaft end play [mm] 0,05...0,50
Outside shaft length [mm] 21
Starting current [A] 6000
NO-load-speed [rpm] 7800
Starting torque [Nm] 1,17
Rated torque [Nm] 0,147
Data Sheet

Unit price

20,69 €

Stock: 3
Further delivery:
CW 50/2024
