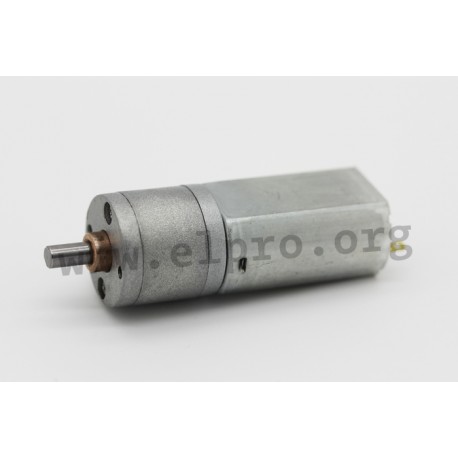

GM20-180K-10000-100.10.5D

DC-motors series GM by Ekulit

Very small and lightweight gear motors with high efficiency. For universal application for example in door locks and functional models. Their rotation is clockwise and counter clockwise (CW or CW&CCW). We are offering the following types by manufacturer Ekulit: GM10-M10VA-06205-250-10D, GM12-N10-10130-298-10D, M12-N20VA-08220-210-20Y, GM12-N20VA-08220-298-10D, GM12-N20VA-08220-298-20M3, GM12-N20VA-05450-298-26D, 12GA-26D-08220, GM13-050SH-1672-35-44.7M3, GM13-030-08300-3690-4.4D, GM13-050SH-11170-35-44.7M3, GM15BY-VSM1527-100-10D, GM15-N20VA-08220-100-10D, GM15BY-VSM1527-298-20D3, GM16F-N20VA-09160, GM16-030-08300-360-10D, GM20-180K-5000-100.10.5D, GM20-130-4500-195.10.5D, GM20-180K-10000-100.10.5D, GM25-310K-6000-100-5-10, GM25-370-3075-125-12D8, GM25-370-M14N-31-12D8,  GM25-370-16250-57-12D8, GM25-395-9.3-50.5SD, GM25-370-11670-500-12D8, GM25-BLDC2418-75-10.5D, GM37-5000-86-21D, GM37-520-6000-67-21D, GM37-520-18315-86-21D, GM37-545-10-21D,  GM48-500-5000-225-12.5D8, GM58GW-7800-100-15D13, GM58GW-3157-100-15D13 and GM1024-N20VA-05450-250-10D.

• operating temperature range: 0 to +30°C
• humidity: 30 to 90%
• all position in horizontal

GM20-180K-10000-100.10.5D

GM20-180K-10000-100.10.5D

107591 GM20-180K-10000-100.10.5D 860519 860519 DC-motors series GM by Ekulit. Very small and lightweight gear motors with high efficiency. For universal application for example in door locks and functional models. Their rotation is clockwise and counter clockwise (CW or CW&CCW). We are offering the following types by manufacturer Ekulit: GM10-M10VA-06205-250-10D, GM12-N10-10130-298-10D, M12-N20VA-08220-210-20Y, GM12-N20VA-08220-298-10D, GM12-N20VA-08220-298-20M3, GM12-N20VA-05450-298-26D, 12GA-26D-08220, GM13-050SH-1672-35-44.7M3, GM13-030-08300-3690-4.4D, GM13-050SH-11170-35-44.7M3, GM15BY-VSM1527-100-10D, GM15-N20VA-08220-100-10D, GM15BY-VSM1527-298-20D3, GM16F-N20VA-09160, GM16-030-08300-360-10D, GM20-180K-5000-100.10.5D, GM20-130-4500-195.10.5D, GM20-180K-10000-100.10.5D, GM25-310K-6000-100-5-10, GM25-370-3075-125-12D8, GM25-370-M14N-31-12D8,  GM25-370-16250-57-12D8, GM25-395-9.3-50.5SD, GM25-370-11670-500-12D8, GM25-BLDC2418-75-10.5D, GM37-5000-86-21D, GM37-520-6000-67-21D, GM37-520-18315-86-21D, GM37-545-10-21D,  GM48-500-5000-225-12.5D8, GM58GW-7800-100-15D13, GM58GW-3157-100-15D13 and GM1024-N20VA-05450-250-10D. • operating temperature range: 0 to +30°C• humidity: 30 to 90%• all position in horizontal

Specifications

manufacturer
Manufacturer's name 860519
Nominal voltage [V DC] 12
Rated current [mA] 280
Dia of shaft [mm] Ø4x3.5
Screw size M2,5
Shaft end play [mm] 0,05...0,50
Outside shaft length [mm] 10,5
Starting current [A] 1600
NO-load-speed [rpm] 10000
Starting torque [Nm] 0,588
Rated torque [Nm] 0,098

Unit price

16,79 €

Stock: 23
Further delivery:
CW 50/2024
