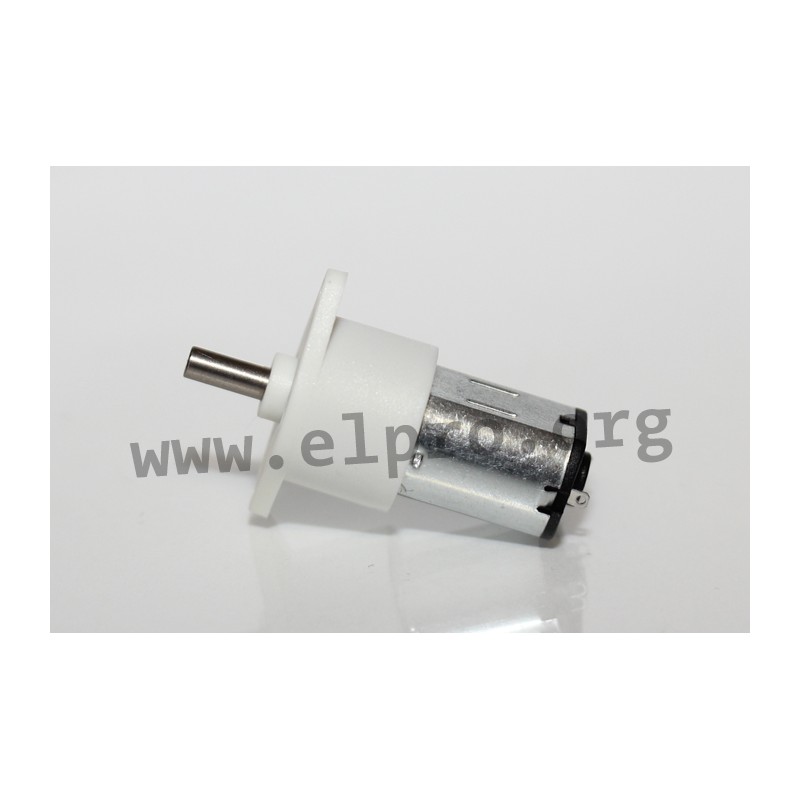

GM15-N20VA-08220-100-10D

DC-motors series GM by Ekulit

Very small and lightweight gear motors with high efficiency. For universal application for example in door locks and functional models. Their rotation is clockwise and counter clockwise (CW or CW&CCW). We are offering the following types by manufacturer Ekulit: GM10-M10VA-06205-250-10D, GM12-N10-10130-298-10D, M12-N20VA-08220-210-20Y, GM12-N20VA-08220-298-10D, GM12-N20VA-08220-298-20M3, GM12-N20VA-05450-298-26D, 12GA-26D-08220, GM13-050SH-1672-35-44.7M3, GM13-030-08300-3690-4.4D, GM13-050SH-11170-35-44.7M3, GM15BY-VSM1527-100-10D, GM15-N20VA-08220-100-10D, GM15BY-VSM1527-298-20D3, GM16F-N20VA-09160, GM16-030-08300-360-10D, GM20-180K-5000-100.10.5D, GM20-130-4500-195.10.5D, GM20-180K-10000-100.10.5D, GM25-310K-6000-100-5-10, GM25-370-3075-125-12D8, GM25-370-M14N-31-12D8,  GM25-370-16250-57-12D8, GM25-395-9.3-50.5SD, GM25-370-11670-500-12D8, GM25-BLDC2418-75-10.5D, GM37-5000-86-21D, GM37-520-6000-67-21D, GM37-520-18315-86-21D, GM37-545-10-21D,  GM48-500-5000-225-12.5D8, GM58GW-7800-100-15D13, GM58GW-3157-100-15D13 and GM1024-N20VA-05450-250-10D.

• operating temperature range: 0 to +30°C
• humidity: 30 to 90%
• all position in horizontal

GM15-N20VA-08220-100-10D

GM15-N20VA-08220-100-10D

107584 GM15-N20VA-08220-100-10D 860513 860513 DC-motors series GM by Ekulit. Very small and lightweight gear motors with high efficiency. For universal application for example in door locks and functional models. Their rotation is clockwise and counter clockwise (CW or CW&CCW). We are offering the following types by manufacturer Ekulit: GM10-M10VA-06205-250-10D, GM12-N10-10130-298-10D, M12-N20VA-08220-210-20Y, GM12-N20VA-08220-298-10D, GM12-N20VA-08220-298-20M3, GM12-N20VA-05450-298-26D, 12GA-26D-08220, GM13-050SH-1672-35-44.7M3, GM13-030-08300-3690-4.4D, GM13-050SH-11170-35-44.7M3, GM15BY-VSM1527-100-10D, GM15-N20VA-08220-100-10D, GM15BY-VSM1527-298-20D3, GM16F-N20VA-09160, GM16-030-08300-360-10D, GM20-180K-5000-100.10.5D, GM20-130-4500-195.10.5D, GM20-180K-10000-100.10.5D, GM25-310K-6000-100-5-10, GM25-370-3075-125-12D8, GM25-370-M14N-31-12D8,  GM25-370-16250-57-12D8, GM25-395-9.3-50.5SD, GM25-370-11670-500-12D8, GM25-BLDC2418-75-10.5D, GM37-5000-86-21D, GM37-520-6000-67-21D, GM37-520-18315-86-21D, GM37-545-10-21D,  GM48-500-5000-225-12.5D8, GM58GW-7800-100-15D13, GM58GW-3157-100-15D13 and GM1024-N20VA-05450-250-10D. • operating temperature range: 0 to +30°C• humidity: 30 to 90%• all position in horizontal

Specifications

manufacturer
Manufacturer's name 860513
Nominal voltage [V DC] 6
Rated current [mA] 150
Dia of shaft [mm] Ø3x2,5
Screw size M1,6x0,35
Shaft end play [mm] 0,05...0,30
Outside shaft length [mm] 10
Starting current [A] 650
NO-load-speed [rpm] 16500
Starting torque [Nm] 0,147
Rated torque [Nm] 0,039
Data Sheet

Unit price

15,49 €

Stock: 14
Further delivery:
CW 50/2024
