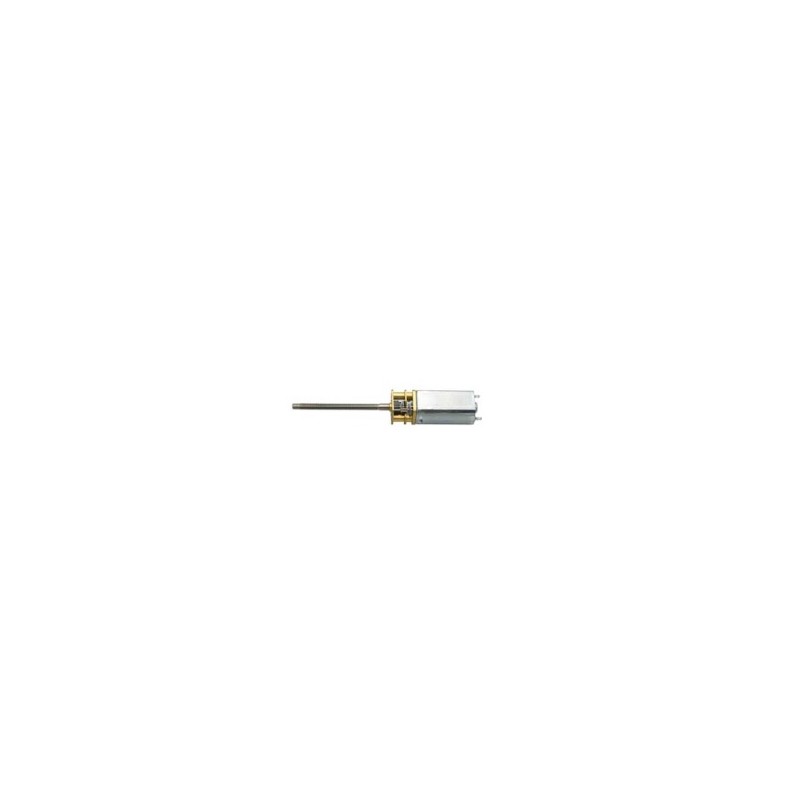

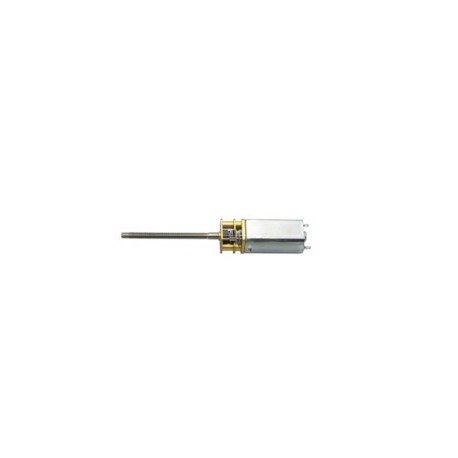

GM13-050SH-1672-35-44.7M3

DC-motors series GM by Ekulit

Very small and lightweight gear motors with high efficiency. For universal application for example in door locks and functional models. Their rotation is clockwise and counter clockwise (CW or CW&CCW). We are offering the following types by manufacturer Ekulit: GM10-M10VA-06205-250-10D, GM12-N10-10130-298-10D, M12-N20VA-08220-210-20Y, GM12-N20VA-08220-298-10D, GM12-N20VA-08220-298-20M3, GM12-N20VA-05450-298-26D, 12GA-26D-08220, GM13-050SH-1672-35-44.7M3, GM13-030-08300-3690-4.4D, GM13-050SH-11170-35-44.7M3, GM15BY-VSM1527-100-10D, GM15-N20VA-08220-100-10D, GM15BY-VSM1527-298-20D3, GM16F-N20VA-09160, GM16-030-08300-360-10D, GM20-180K-5000-100.10.5D, GM20-130-4500-195.10.5D, GM20-180K-10000-100.10.5D, GM25-310K-6000-100-5-10, GM25-370-3075-125-12D8, GM25-370-M14N-31-12D8,  GM25-370-16250-57-12D8, GM25-395-9.3-50.5SD, GM25-370-11670-500-12D8, GM25-BLDC2418-75-10.5D, GM37-5000-86-21D, GM37-520-6000-67-21D, GM37-520-18315-86-21D, GM37-545-10-21D,  GM48-500-5000-225-12.5D8, GM58GW-7800-100-15D13, GM58GW-3157-100-15D13 and GM1024-N20VA-05450-250-10D.

• operating temperature range: 0 to +30°C
• humidity: 30 to 90%
• all position in horizontal

GM13-050SH-1672-35-44.7M3

GM13-050SH-1672-35-44.7M3

107580 GM13-050SH-1672-35-44.7M3 860509 860509 DC-motors series GM by Ekulit. Very small and lightweight gear motors with high efficiency. For universal application for example in door locks and functional models. Their rotation is clockwise and counter clockwise (CW or CW&CCW). We are offering the following types by manufacturer Ekulit: GM10-M10VA-06205-250-10D, GM12-N10-10130-298-10D, M12-N20VA-08220-210-20Y, GM12-N20VA-08220-298-10D, GM12-N20VA-08220-298-20M3, GM12-N20VA-05450-298-26D, 12GA-26D-08220, GM13-050SH-1672-35-44.7M3, GM13-030-08300-3690-4.4D, GM13-050SH-11170-35-44.7M3, GM15BY-VSM1527-100-10D, GM15-N20VA-08220-100-10D, GM15BY-VSM1527-298-20D3, GM16F-N20VA-09160, GM16-030-08300-360-10D, GM20-180K-5000-100.10.5D, GM20-130-4500-195.10.5D, GM20-180K-10000-100.10.5D, GM25-310K-6000-100-5-10, GM25-370-3075-125-12D8, GM25-370-M14N-31-12D8,  GM25-370-16250-57-12D8, GM25-395-9.3-50.5SD, GM25-370-11670-500-12D8, GM25-BLDC2418-75-10.5D, GM37-5000-86-21D, GM37-520-6000-67-21D, GM37-520-18315-86-21D, GM37-545-10-21D,  GM48-500-5000-225-12.5D8, GM58GW-7800-100-15D13, GM58GW-3157-100-15D13 and GM1024-N20VA-05450-250-10D. • operating temperature range: 0 to +30°C• humidity: 30 to 90%• all position in horizontal

Specifications

manufacturer
Manufacturer's name 860509
Nominal voltage [V DC] 6
Rated current [mA] 420
Dia of shaft [mm] M3x36
Screw size M2,0
Shaft end play [mm] 0,05...0,30
Outside shaft length [mm] 44,7
Starting current [A] 3200
NO-load-speed [rpm] 20000
Starting torque [Nm] 0,176
Rated torque [Nm] 0,039
Data Sheet

Unit price

18,69 €

Stock: 0
Further delivery:
CW 03/2025

Minimum order quantity 25 units or
multiples of 25.
