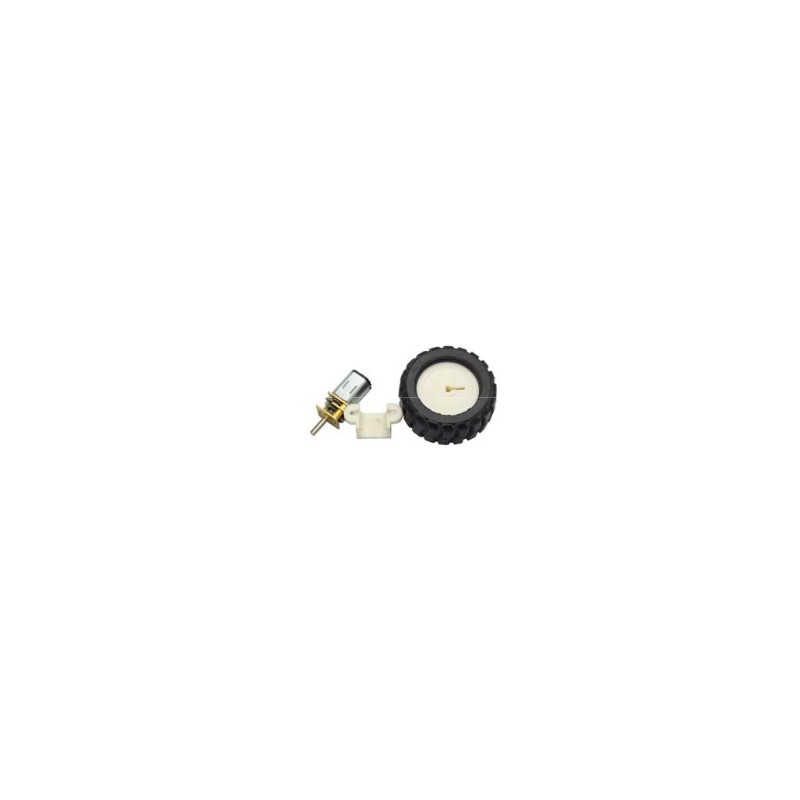

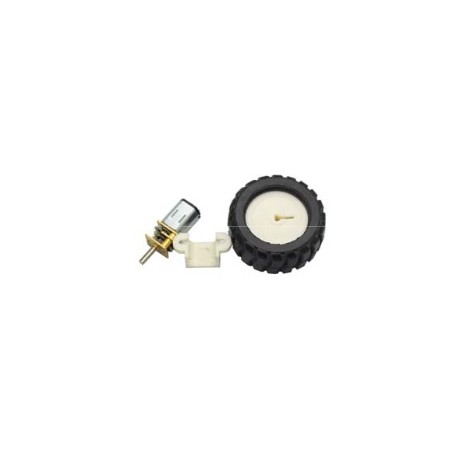

GM12-N20VA-08220-298-10D

DC-motors series GM by Ekulit

Very small and lightweight gear motors with high efficiency. For universal application for example in door locks and functional models. Their rotation is clockwise and counter clockwise (CW or CW&CCW). We are offering the following types by manufacturer Ekulit: GM10-M10VA-06205-250-10D, GM12-N10-10130-298-10D, M12-N20VA-08220-210-20Y, GM12-N20VA-08220-298-10D, GM12-N20VA-08220-298-20M3, GM12-N20VA-05450-298-26D, 12GA-26D-08220, GM13-050SH-1672-35-44.7M3, GM13-030-08300-3690-4.4D, GM13-050SH-11170-35-44.7M3, GM15BY-VSM1527-100-10D, GM15-N20VA-08220-100-10D, GM15BY-VSM1527-298-20D3, GM16F-N20VA-09160, GM16-030-08300-360-10D, GM20-180K-5000-100.10.5D, GM20-130-4500-195.10.5D, GM20-180K-10000-100.10.5D, GM25-310K-6000-100-5-10, GM25-370-3075-125-12D8, GM25-370-M14N-31-12D8,  GM25-370-16250-57-12D8, GM25-395-9.3-50.5SD, GM25-370-11670-500-12D8, GM25-BLDC2418-75-10.5D, GM37-5000-86-21D, GM37-520-6000-67-21D, GM37-520-18315-86-21D, GM37-545-10-21D,  GM48-500-5000-225-12.5D8, GM58GW-7800-100-15D13, GM58GW-3157-100-15D13 and GM1024-N20VA-05450-250-10D.

• operating temperature range: 0 to +30°C
• humidity: 30 to 90%
• all position in horizontal

GM12-N20VA-08220-298-10D

GM12-N20VA-08220-298-10D

107576 GM12-N20VA-08220-298-10D 860506 860506 DC-motors series GM by Ekulit. Very small and lightweight gear motors with high efficiency. For universal application for example in door locks and functional models. Their rotation is clockwise and counter clockwise (CW or CW&CCW). We are offering the following types by manufacturer Ekulit: GM10-M10VA-06205-250-10D, GM12-N10-10130-298-10D, M12-N20VA-08220-210-20Y, GM12-N20VA-08220-298-10D, GM12-N20VA-08220-298-20M3, GM12-N20VA-05450-298-26D, 12GA-26D-08220, GM13-050SH-1672-35-44.7M3, GM13-030-08300-3690-4.4D, GM13-050SH-11170-35-44.7M3, GM15BY-VSM1527-100-10D, GM15-N20VA-08220-100-10D, GM15BY-VSM1527-298-20D3, GM16F-N20VA-09160, GM16-030-08300-360-10D, GM20-180K-5000-100.10.5D, GM20-130-4500-195.10.5D, GM20-180K-10000-100.10.5D, GM25-310K-6000-100-5-10, GM25-370-3075-125-12D8, GM25-370-M14N-31-12D8,  GM25-370-16250-57-12D8, GM25-395-9.3-50.5SD, GM25-370-11670-500-12D8, GM25-BLDC2418-75-10.5D, GM37-5000-86-21D, GM37-520-6000-67-21D, GM37-520-18315-86-21D, GM37-545-10-21D,  GM48-500-5000-225-12.5D8, GM58GW-7800-100-15D13, GM58GW-3157-100-15D13 and GM1024-N20VA-05450-250-10D. • operating temperature range: 0 to +30°C• humidity: 30 to 90%• all position in horizontal

Specifications

manufacturer
Manufacturer's name 860506
Nominal voltage [V DC] 6
Rated current [mA] 150
Dia of shaft [mm] Ø3x2,5
Screw size M1,6x0,35
Shaft end play [mm] 0,05...0,30
Outside shaft length [mm] 10
Starting current [A] 600
NO-load-speed [rpm] 16000
Starting torque [Nm] 0,294
Rated torque [Nm] 0,074
Data Sheet

Unit price

19,99 €

Stock: 0
Further delivery:
CW 50/2024

Minimum order quantity 25 units or
multiples of 25.
