EA11811K2446

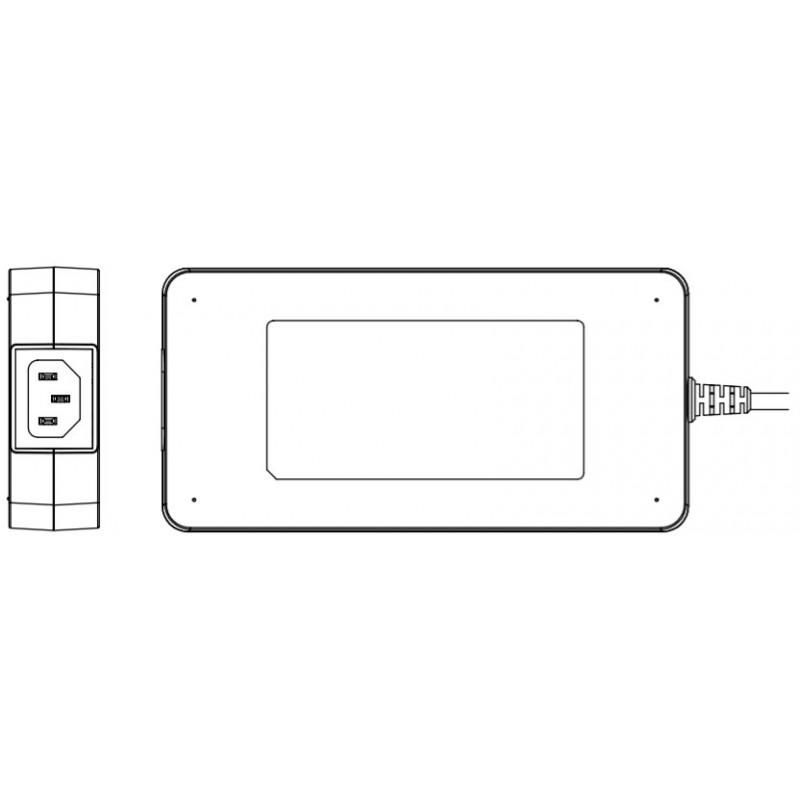

EDACPOWER desktop power supply series EA1181

Desktop switching power supplies with 200W and a universal input. These devices are suitable for indoor applications and are protected against overload (auto recovery), short circuit as well as overvoltage. They comply with EN62368-1, EN55032 class B and energy efficiency Level VI. We offer the type EA11811K2446 of this EDACPOWER series.

  • single output
  • output: 200W
  • input voltage: 100 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 120A
  • cable length: 1,2m
  • input plug: C14
  • output plug: DIN plug, 4-pole
  • operating temperature: 0 to +40°C
  • dimensions: 166x83x28mm
  • weight: 750g

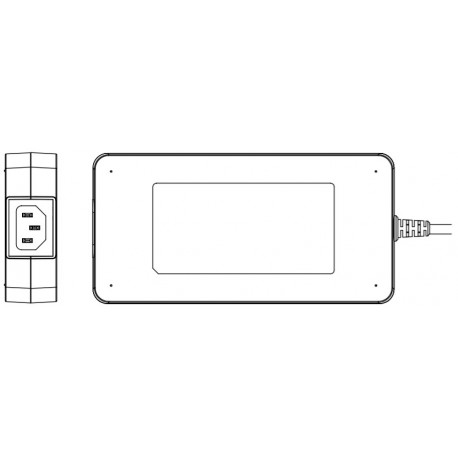

EA11811K(T02), EDACPOWER desktop switching power supplies, 200W, energy efficiency Level VI, EA1181 series

EA11811K2446

233998 EA11811K2446 EA11811K(T02) EA11811K(T02) EDACPOWER desktop power supply series EA1181. Desktop switching power supplies with 200W and a universal input. These devices are suitable for indoor applications and are protected against overload (auto recovery), short circuit as well as overvoltage. They comply with EN62368-1, EN55032 class B and energy efficiency Level VI. We offer the type EA11811K2446 of this EDACPOWER series. single output output: 200W input voltage: 100 to 264V AC (47 to 63Hz) maximal input inrush current: 120A cable length: 1,2m input plug: C14 output plug: DIN plug, 4-pole operating temperature: 0 to +40°C dimensions: 166x83x28mm weight: 750g

Specifications

manufacturer
Manufacturer's name EA11811K(T02)
Output voltage [V] 24
Efficiency [%] 89
Output current [A] 8,33
Output voltage tolerance: [%] +5/-5
Output power [W] 200
Ripple [mVp-p] 360
Data Sheet

Unit price

45,09 €

Volume discounts

Quantity Unit price
100 + 43,09 €
50 + 44,09 €

Stock: 402
Further delivery:
CW 18/2025
