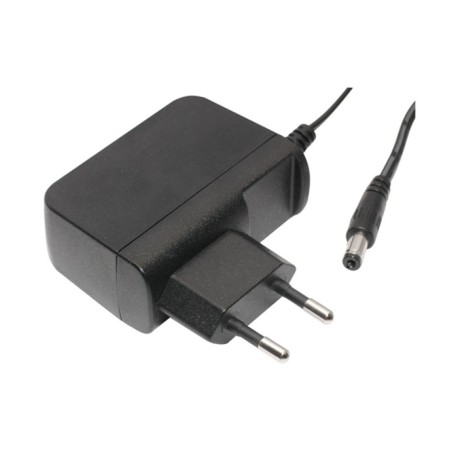

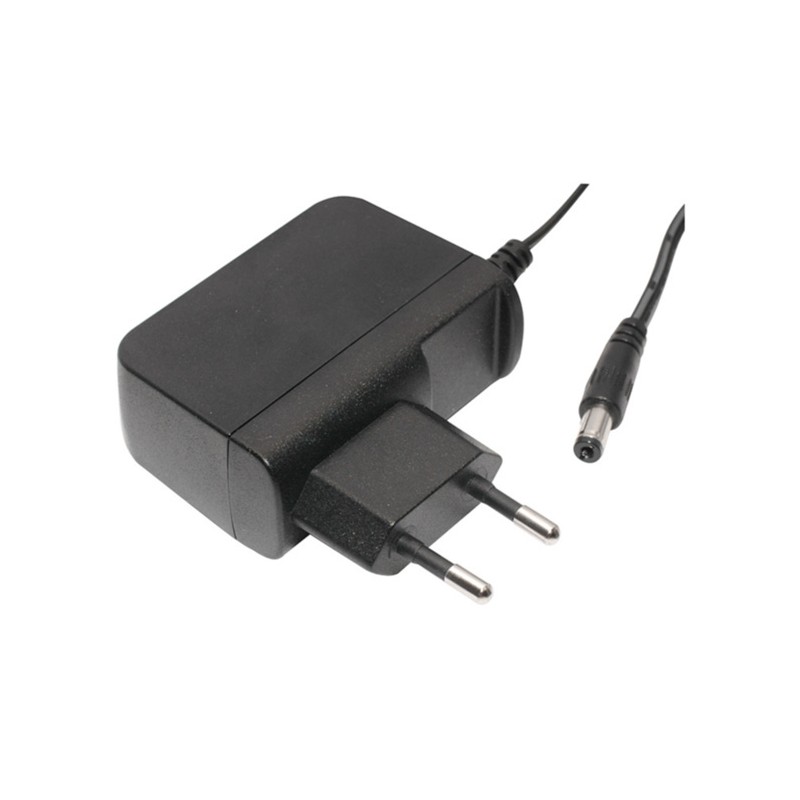

EA1012AHES(T04)

EDACPOWER plug-in power supply series EA1012

Plug-in switching power supplies with a europlug, 12W, protection class II, energy efficiency Level VI (DoE) and a universal input. These devices are suitable for indoor applications, comply with UL/EN62368-1 as well as EN55032 class B and are protected against short circuit, overload (auto recovery) as well as overvoltage. We offer the following types of this EDACPOWER series: EA1012AHES501, EA1012AHEU5, EA1012CHES1201 and EA1012DHES2401.

  • single output
  • output: 12W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 60A
  • cable length: 1,8m
  • input plug: euro
  • output plug: 2,1x5,5mm coaxial
  • output plug EA1012AHEU5: USB-A
  • dimensions: 55x25x55mm
  • operating temperature: 0 to +40°C
EA1012AHES(T04), EDACPOWER plug-in switching power supplies, 12W, energy efficiency Level VI, EA1012 series

EA1012AHES(T04)

247588 EA1012AHES(T04) EA1012AHES(T04) EDACPOWER plug-in power supply series EA1012. Plug-in switching power supplies with a europlug, 12W, protection class II, energy efficiency Level VI (DoE) and a universal input. These devices are suitable for indoor applications, comply with UL/EN62368-1 as well as EN55032 class B and are protected against short circuit, overload (auto recovery) as well as overvoltage. We offer the following types of this EDACPOWER series: EA1012AHES501, EA1012AHEU5, EA1012CHES1201 and EA1012DHES2401. single output output: 12W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 60A cable length: 1,8m input plug: euro output plug: 2,1x5,5mm coaxial output plug EA1012AHEU5: USB-A dimensions: 55x25x55mm operating temperature: 0 to +40°C

Specifications

manufacturer
Manufacturer's name EA1012AHES(T04)
Output voltage [V] 5
Output current [A] 2,4
Output power [W] 12
Data Sheet

Unit price

6,39 €

Stock: 0
Further delivery:
CW 10/2025

Minimum order quantity 504 units or
multiples of 504.
