EA1005AHEU5

EDACPOWER plug-in power supply series EA1005

Plug-in switching power supplies with 6W, a europlug, protection class II and energy efficiency Level VI. These devices are protected against short circuit, overload (auto recovery) and overvoltage. They are suitable for indoor applications and comply with UL/EN62368 as well as EN55032. We offer the following types of this EDACPOWER series: EA1005AHES501, EA1005AHEU5, EA1005AHES(T05) USB, EA1005DHES901 and EA1005BHES1201.

  • single output
  • output: 6W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 60A
  • input plug: Euro
  • operating temperature: 0 to +40°C
  • weight: 70g

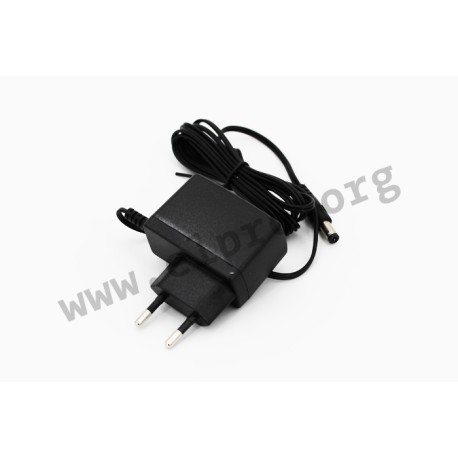

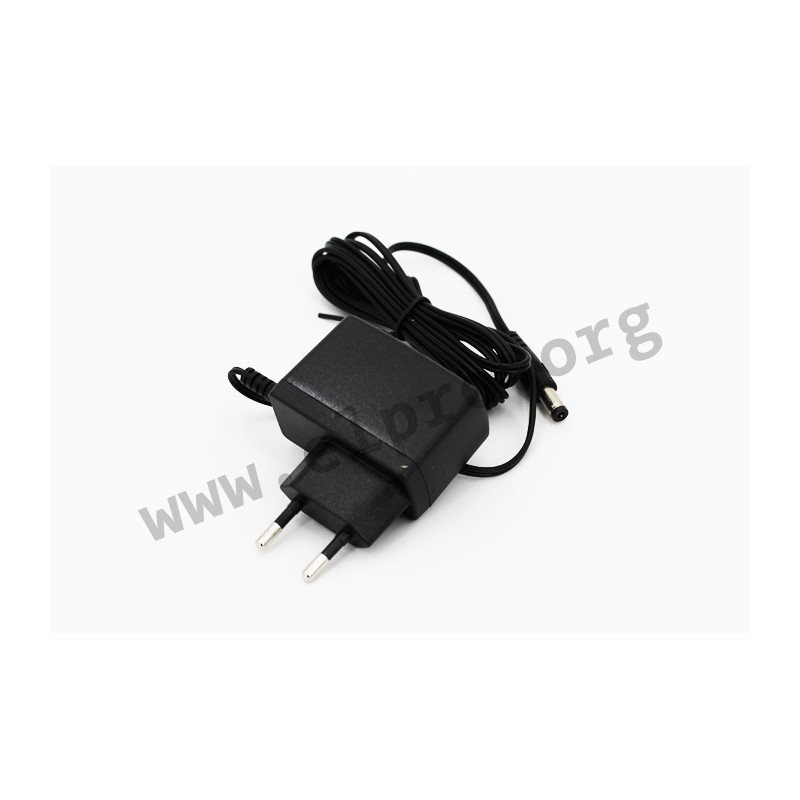

EA1005AHEU(T03), EDACPOWER plug-in switching power supplies, 6W, energy efficiency Level VI, EA1005 series

EA1005AHEU5

241040 EA1005AHEU5 EA1005AHEU(T03) EA1005AHEU(T03) EDACPOWER plug-in power supply series EA1005. Plug-in switching power supplies with 6W, a europlug, protection class II and energy efficiency Level VI. These devices are protected against short circuit, overload (auto recovery) and overvoltage. They are suitable for indoor applications and comply with UL/EN62368 as well as EN55032. We offer the following types of this EDACPOWER series: EA1005AHES501, EA1005AHEU5, EA1005AHES(T05) USB, EA1005DHES901 and EA1005BHES1201. single output output: 6W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 60A input plug: Euro operating temperature: 0 to +40°C weight: 70g

Specifications

manufacturer
Manufacturer's name EA1005AHEU(T03)
Output voltage [V] 5
Plug 1 Euro
Plug 2 Micro-USB
Output current [A] 1,2
Output voltage tolerance: [%] +5/-5
Output power [W] 6
Ripple [mVp-p] 100
Data Sheet

Unit price

5,39 €

Volume discounts

Quantity Unit price
100 + 4,89 €
50 + 4,89 €

Stock: 485
Further delivery:
CW 15/2025
