EA11831A(T01)

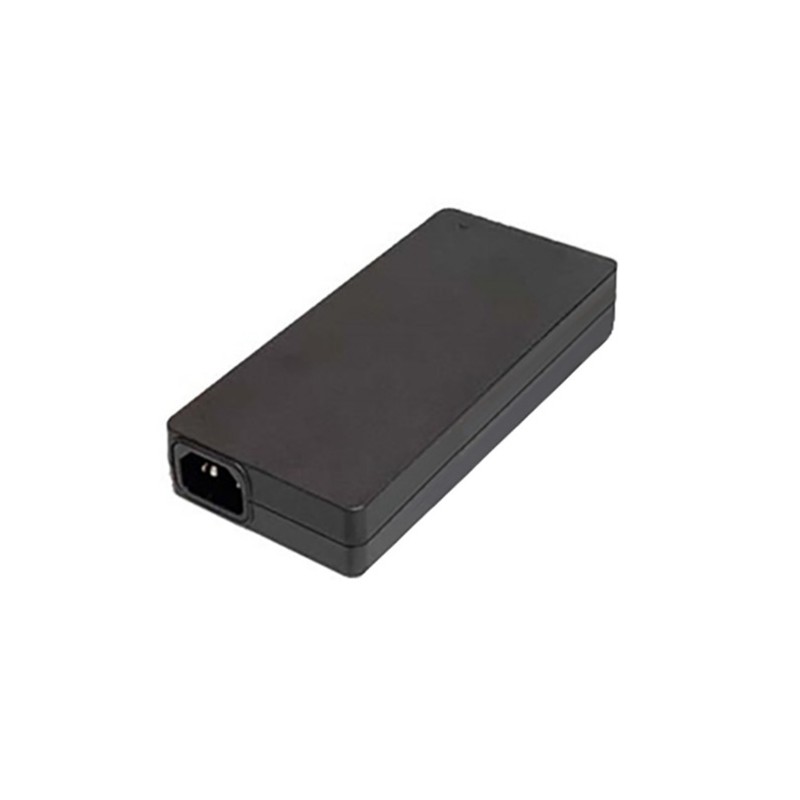

EDAC desktop power supply series EA1183

Desktop switching power supplies with 130W and a universal input. These devices are suitable for indoor applications and are protected against overload (auto recovery), short circuit as well as overvoltage. They comply with protection class I and energy efficiency Level VI. We offer the following types of this EDAC series: EA11831A(T01) and EA11831B(T01).

  • single output
  • output: 130W
  • input voltage: 100 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 80A
  • cable length: 1,2m
  • input plug: IEC-320 C14
  • output plug: Power mini DIN-plug 4-pole (EA11831A(T01)), 5,5x2,1mm coaxial power connector (EA11831B(T01))
  • operating temperature: 0 to +40°C
  • dimensions: 151,3x75,8x25,4mm
  • weight: 450g

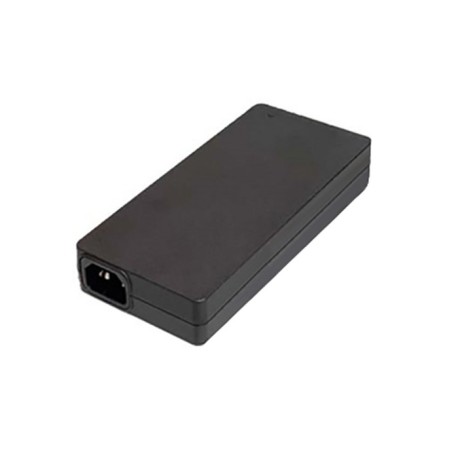

EA11831A(T01), EDAC external switching power supplies, 130W, energy efficiency level VI, EA1183 series

EA11831A(T01)

247591 EA11831A(T01) EA11831A(T01) EDAC desktop power supply series EA1183. Desktop switching power supplies with 130W and a universal input. These devices are suitable for indoor applications and are protected against overload (auto recovery), short circuit as well as overvoltage. They comply with protection class I and energy efficiency Level VI. We offer the following types of this EDAC series: EA11831A(T01) and EA11831B(T01). single output output: 130W input voltage: 100 to 264V AC (47 to 63Hz) maximal input inrush current: 80A cable length: 1,2m input plug: IEC-320 C14 output plug: Power mini DIN-plug 4-pole (EA11831A(T01)), 5,5x2,1mm coaxial power connector (EA11831B(T01)) operating temperature: 0 to +40°C dimensions: 151,3x75,8x25,4mm weight: 450g

Specifications

manufacturer
Manufacturer's name EA11831A(T01)
Output voltage [V] 12
Output current [A] 10,83
Output voltage tolerance: [%] ±5
Output power [W] 130
Ripple [mVp-p] 270
Data Sheet

Unit price

35,69 €

Stock: 0
Further delivery:
CW 14/2025

Minimum order quantity 300 units or
multiples of 300.
