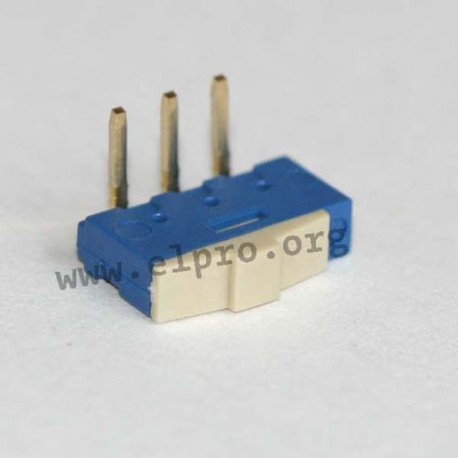

SNX 5

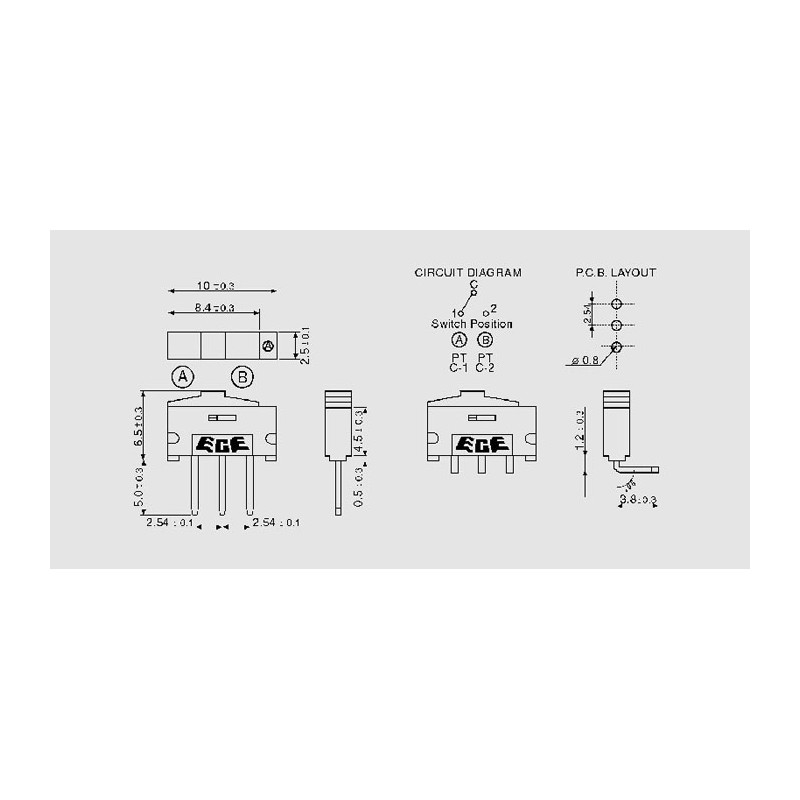

sub-slide switch, pitch: 2.54mm

• attachable
• all plastic parts flame-resistant in accordance with UL94V-0
• switching capacity: 0.5A, 12V DC/1mA, 10mV, min.
• contact resistance, max.: 30mΩ
• dielectric strength: 2mA, 500V DC/1min.
• capacitance, max.: 1.5pF
• insulation resistance (500V DC): 10000MΩ/1min.
• operations: 10000
• operating temperature: -25...+70°C
• soldering temperature: 230°C/3s
• soldering temperature, max.: 245°C
• vibration test: normal operation 10...60Hz, 1.5mm movement
• corrosion test (salt solution): 35°C, 5%/24h
* 90° angled, horizontal

SNX 5

SNX 5

13325 SNX 5 ESP2010 ESP2010 sub-slide switch, pitch: 2.54mm. • attachable• all plastic parts flame-resistant in accordance with UL94V-0• switching capacity: 0.5A, 12V DC/1mA, 10mV, min.• contact resistance, max.: 30mΩ• dielectric strength: 2mA, 500V DC/1min.• capacitance, max.: 1.5pF• insulation resistance (500V DC): 10000MΩ/1min.• operations: 10000• operating temperature: -25...+70°C• soldering temperature: 230°C/3s• soldering temperature, max.: 245°C• vibration test: normal operation 10...60Hz, 1.5mm movement• corrosion test (salt solution): 35°C, 5%/24h* 90° angled, horizontal

Specifications

manufacturer
Manufacturer's name ESP2010
Switch positions SPDT
Switching current [A] 0,5

Unit price

0,52 €

Stock: 2120
Next incoming goods:
CW 02/2025
2385 units

Further delivery:
CW 14/2025

Minimum order quantity 53 units or
multiples of 53.
