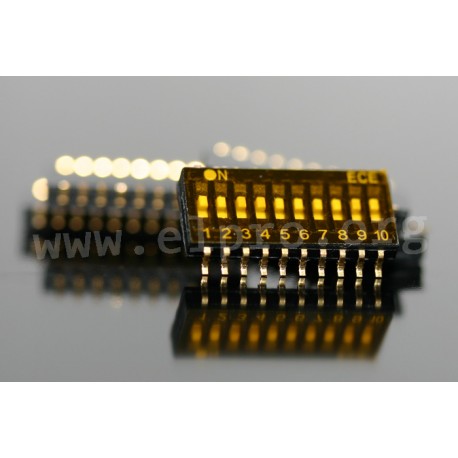

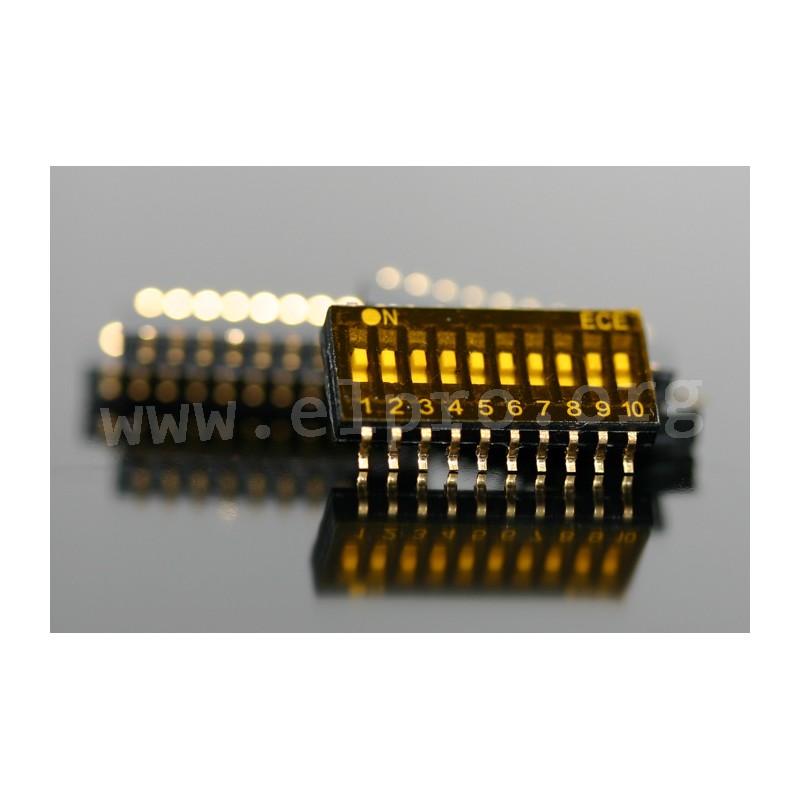

SD 10 mini

code switch, SMD version, 1.27mm pitch

• top tape sealed
• pitch: 1.27mm
• can be assembled by any automatic IC inserter
• raised actuator
• bottom epoxy sealed against flux immersion
• switching capacity: 25mA/24V DC
• transmission current: 100mA/50V DC
• contact resistance, max.: 100mΩ
• insulation resistance (100V DC), min.: 500MΩ
• dielectric strength, min.: 300V DC/1min.
• capacity of adjacent switch, max.: 5pF

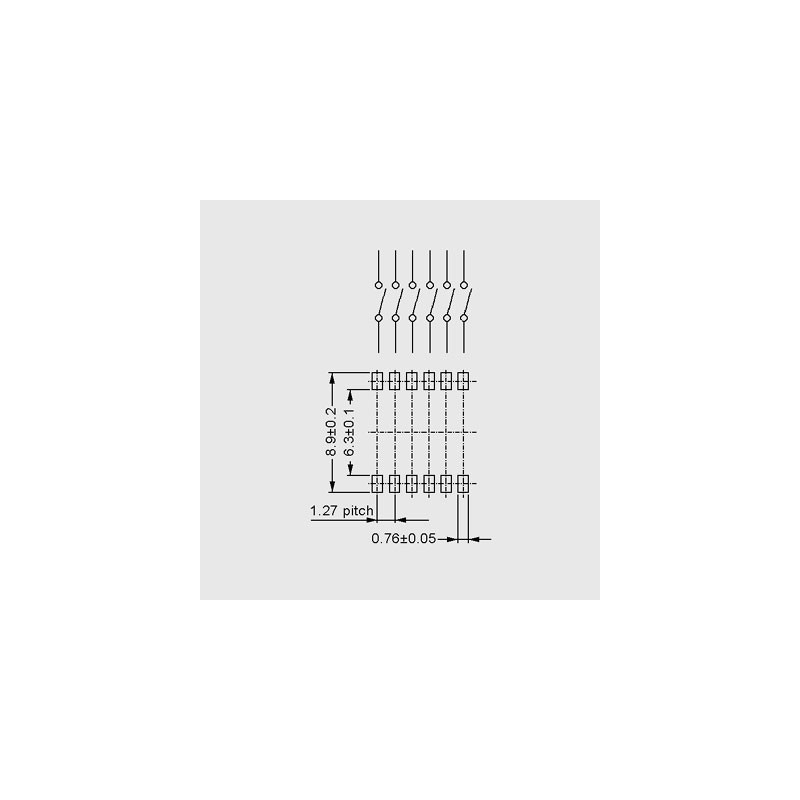

• spacing between rows: 8.9mm
• insulation shell: UL94V-0, black
• contact finish: gold over nickel
• operating temperature: -25...+70°C
• operating force, max.: 800g
• switching capacity: 1000 operations
• air humidity: 95% RH, 40°C/96h
• vibration test: 10Hz-55Hz-10Hz/6h
• by ECE

SD 10 mini

SD 10 mini

13319 SD 10 mini EHS110LT EHS110LT code switch, SMD version, 1.27mm pitch. • top tape sealed• pitch: 1.27mm• can be assembled by any automatic IC inserter• raised actuator• bottom epoxy sealed against flux immersion• switching capacity: 25mA/24V DC• transmission current: 100mA/50V DC• contact resistance, max.: 100mΩ• insulation resistance (100V DC), min.: 500MΩ• dielectric strength, min.: 300V DC/1min.• capacity of adjacent switch, max.: 5pF• spacing between rows: 8.9mm• insulation shell: UL94V-0, black• contact finish: gold over nickel• operating temperature: -25...+70°C• operating force, max.: 800g• switching capacity: 1000 operations• air humidity: 95% RH, 40°C/96h• vibration test: 10Hz-55Hz-10Hz/6h• by ECE

Specifications

manufacturer
Manufacturer's name EHS110LT
Switch 10

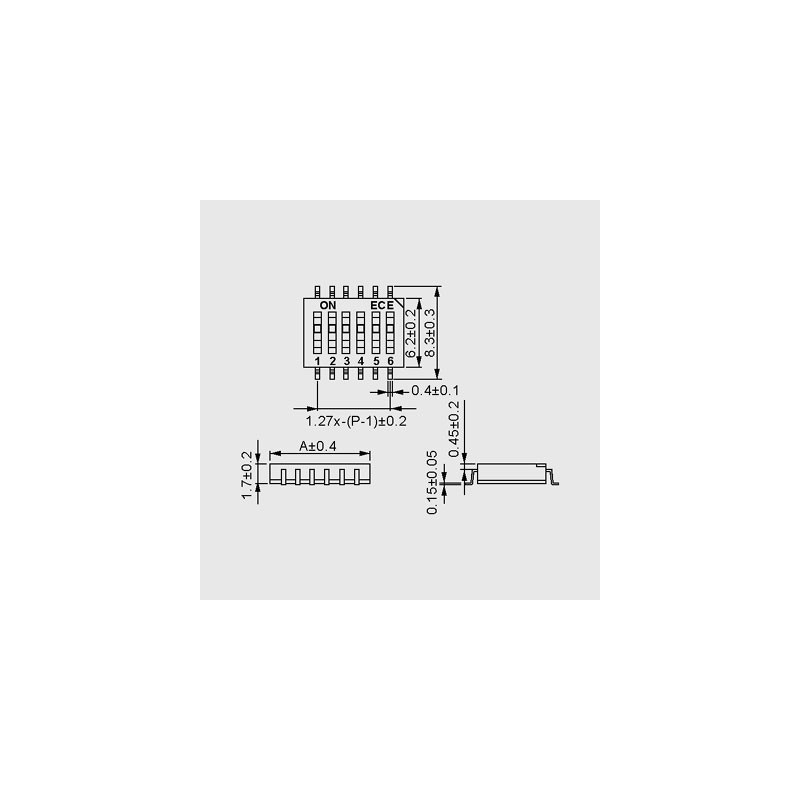

A [mm] 13,8

Unit price

1,74 €

Stock: 5
Next incoming goods:
CW 13/2025
228 units

Further delivery:
CW 18/2025

Minimum order quantity 1 to 5 units or multiples of 19 plus 0 to 5 .
